Main Power Supply And Ground Circuit

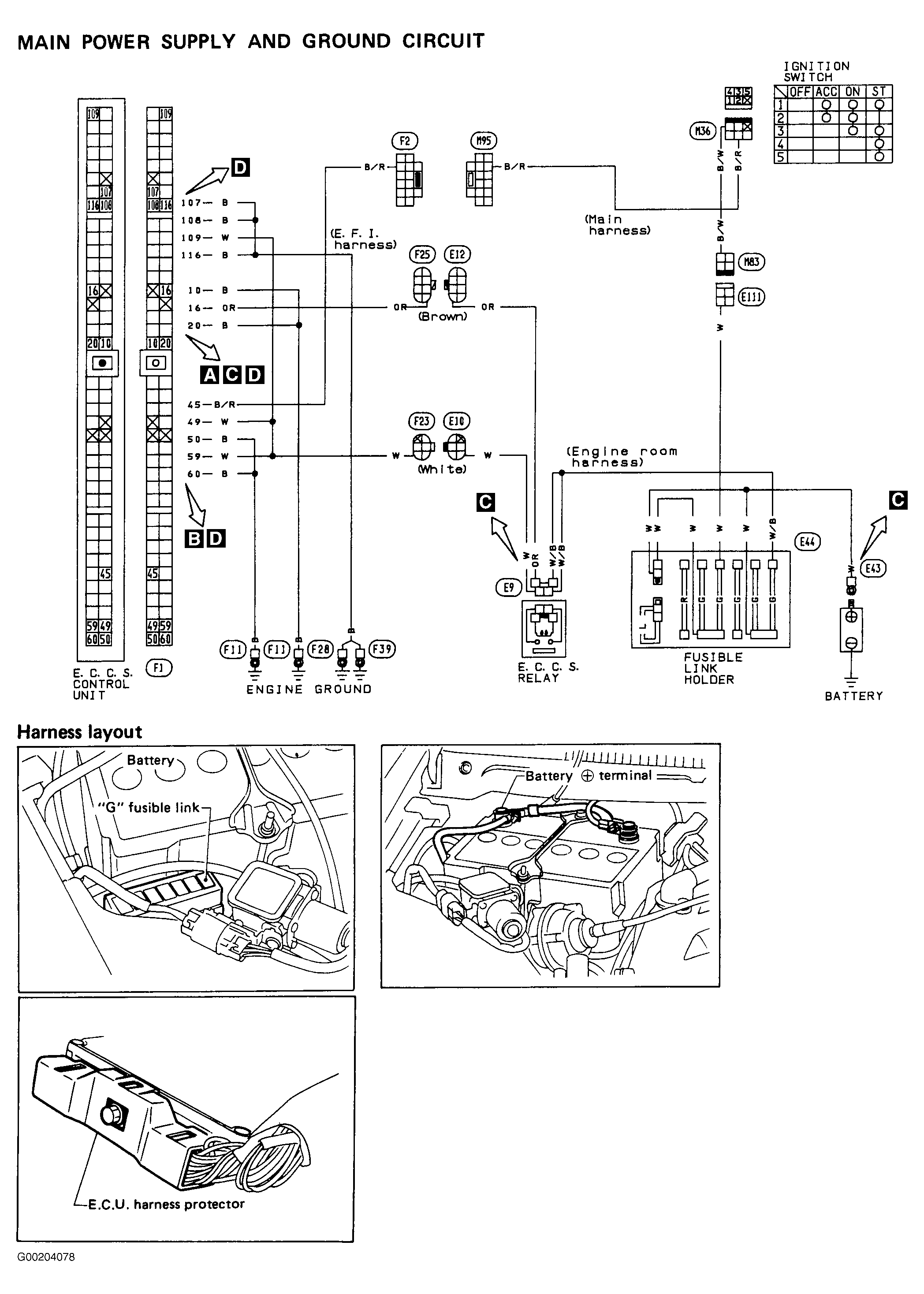

Fig 1: Main Power Supply & Ground Circuit (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Main Power Supply & Ground Circuit (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
