Neutral Switch & A/T Control Chart

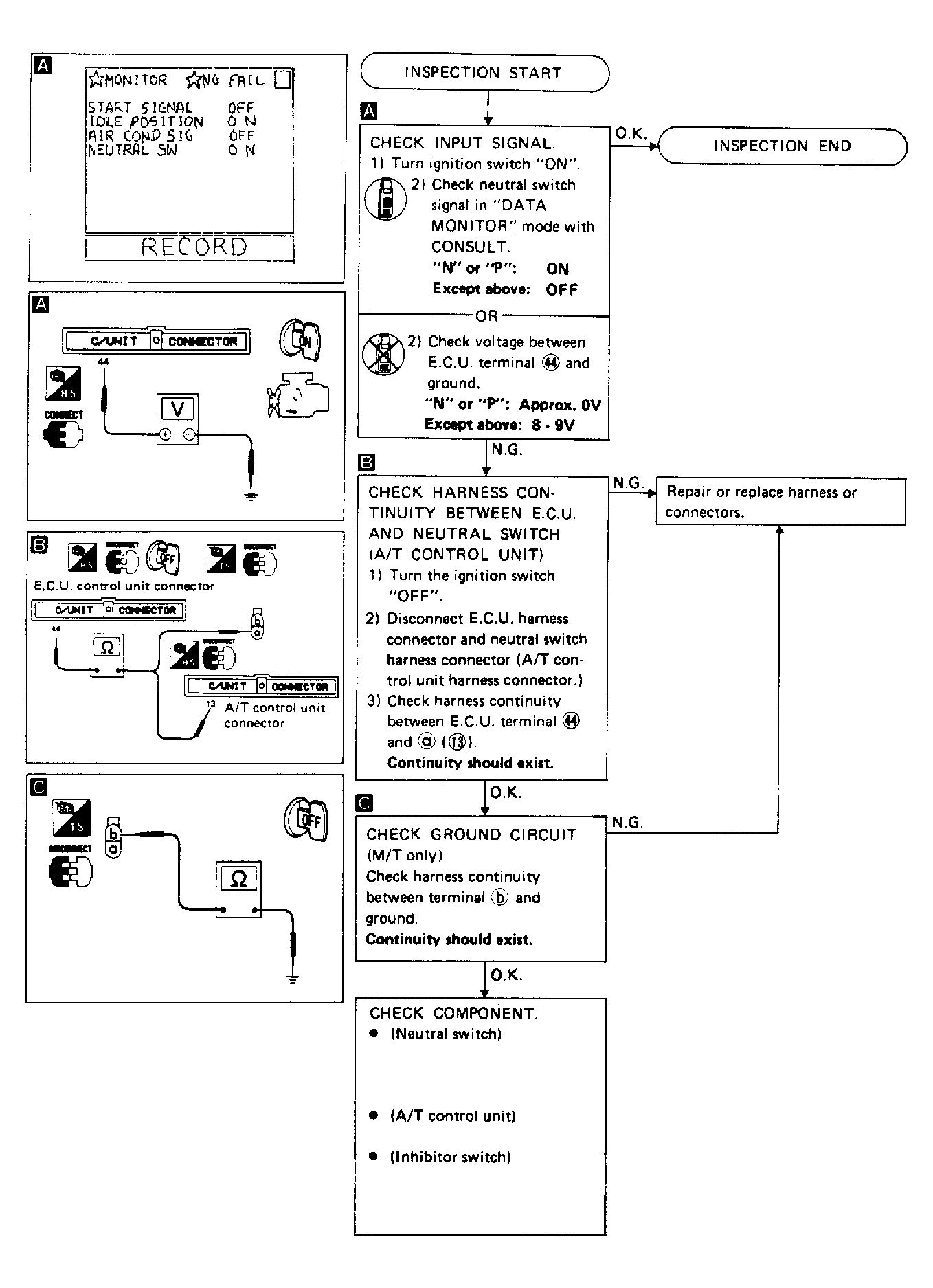

Fig 1: Neutral Switch & A/T Control Diagnostic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
