Power Valve Control Chart

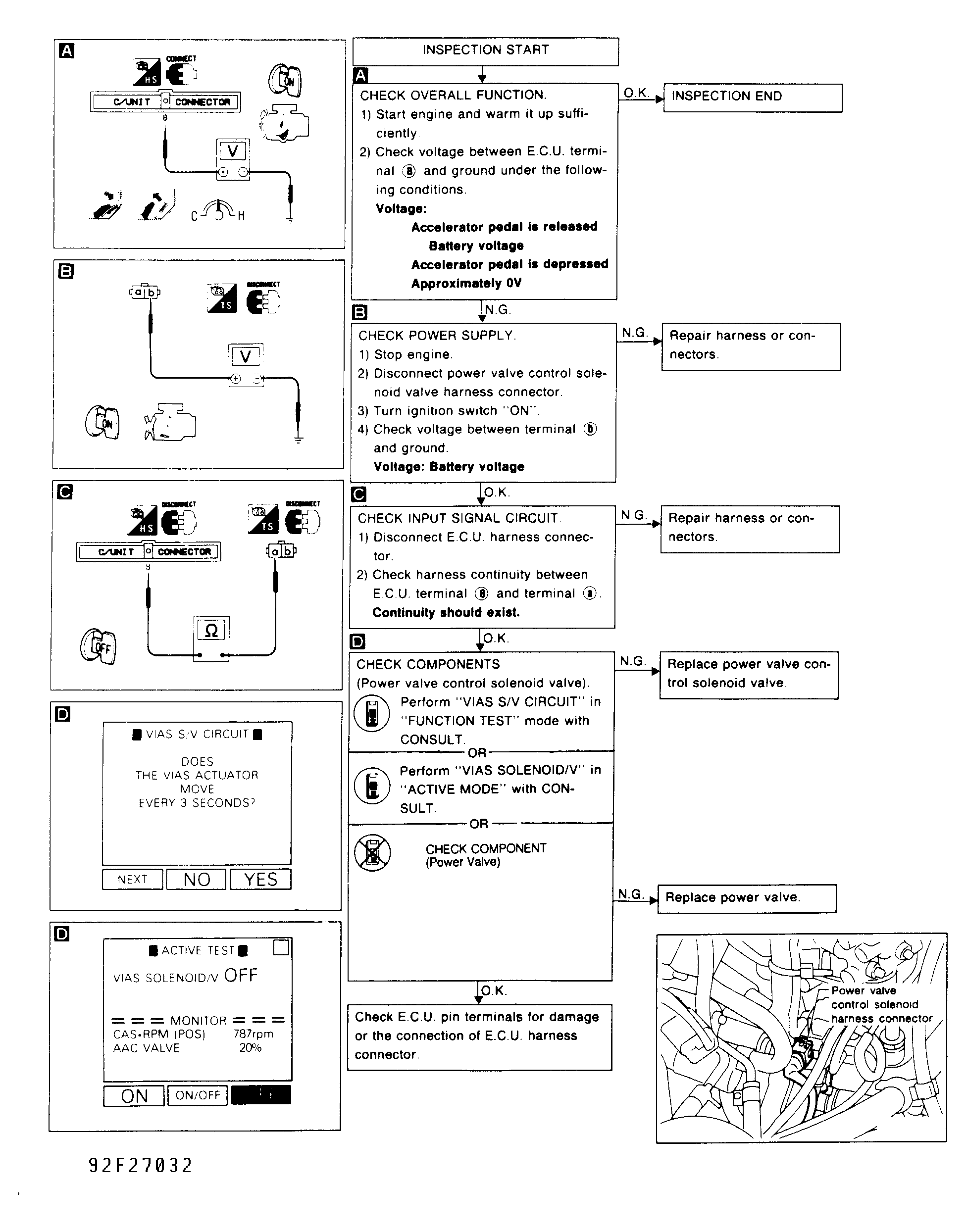

Fig 1: Power Valve Control Flow Chart (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Power Valve Control Flow Chart Maxima SE (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
