Auxiliary Air Control Chart

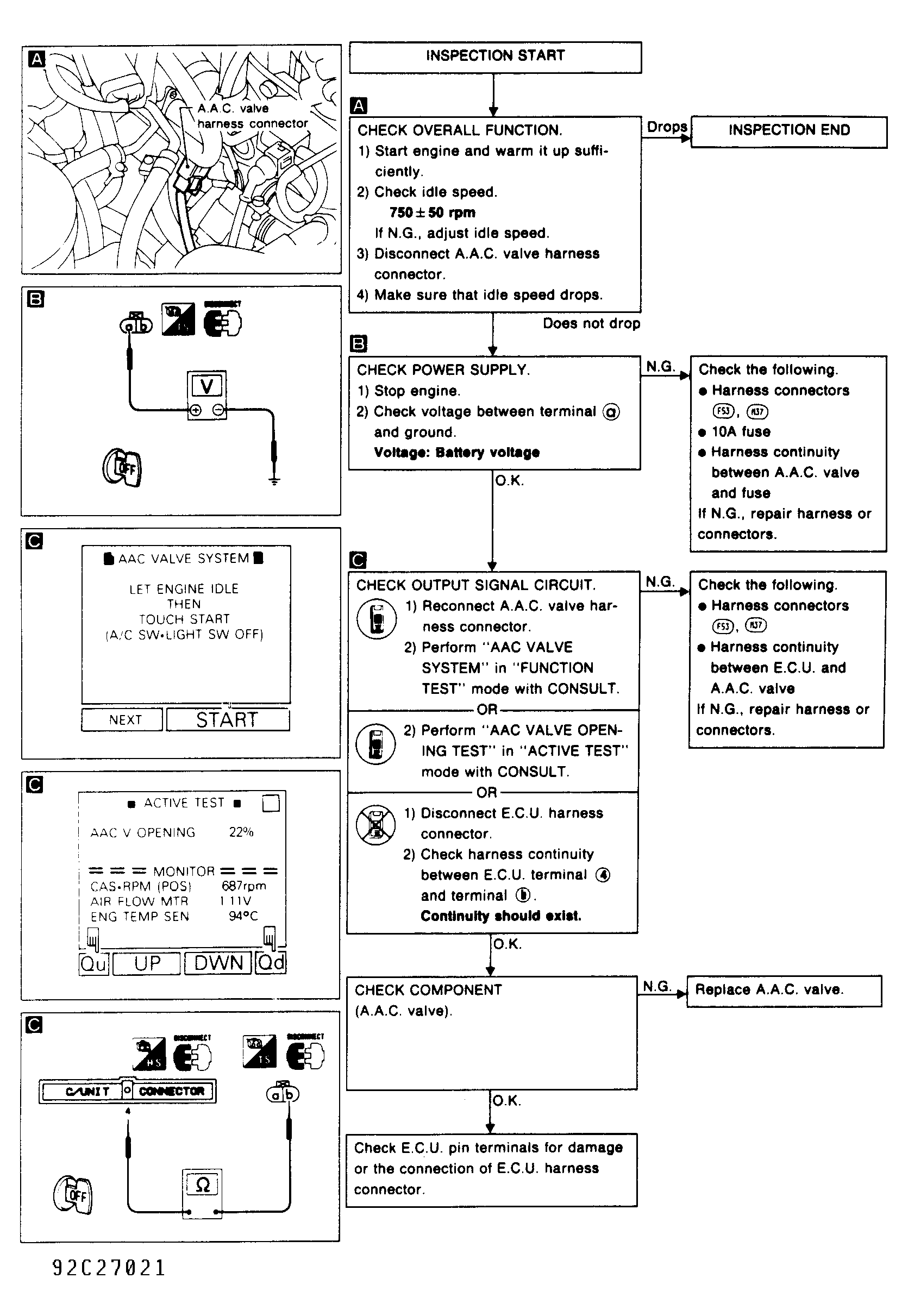

Fig 1: Auxiliary Air Control (AAC) Flow Chart (1 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

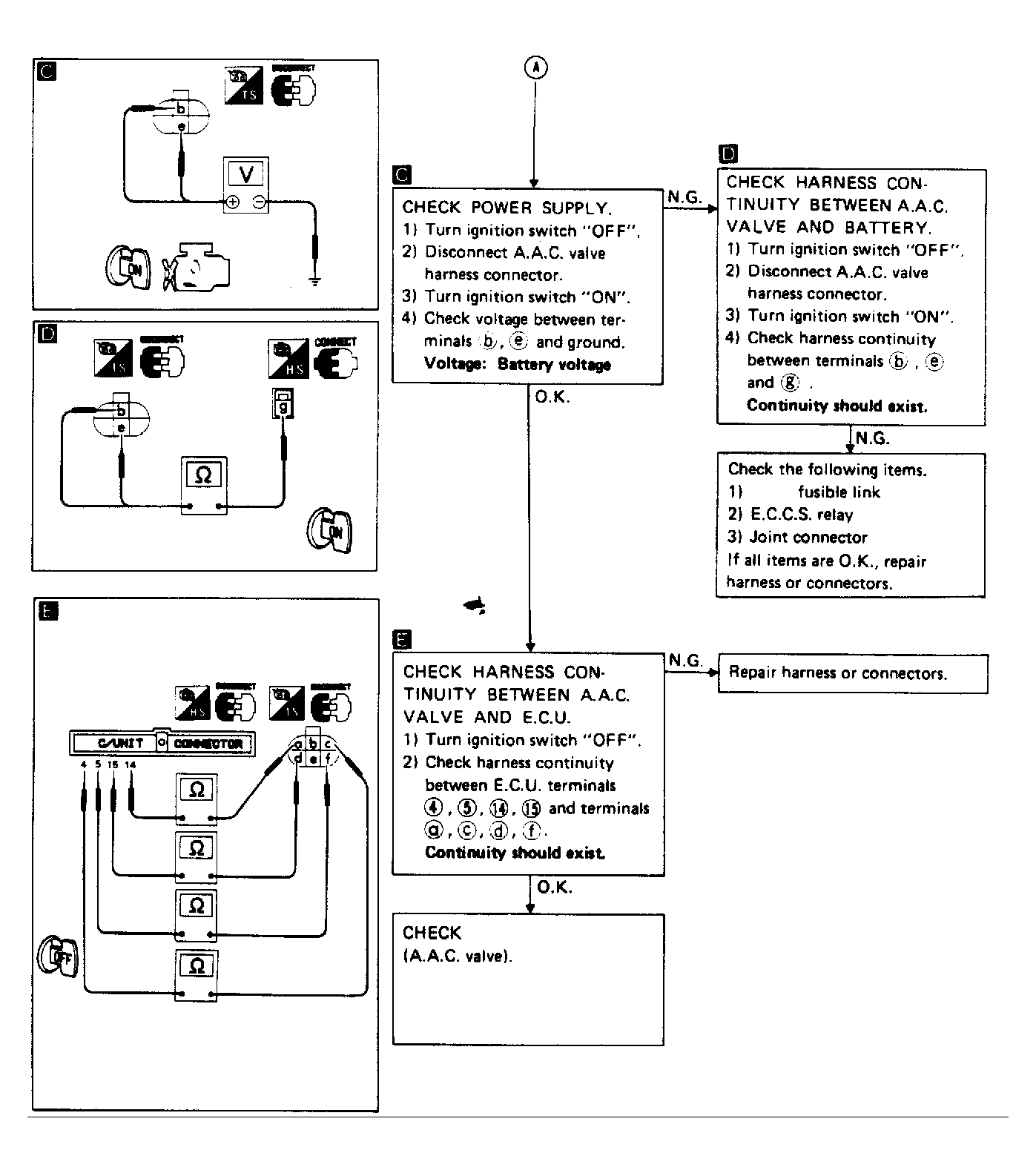

Fig 2: Auxiliary Air Control (AAC) Flow Chart (2 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

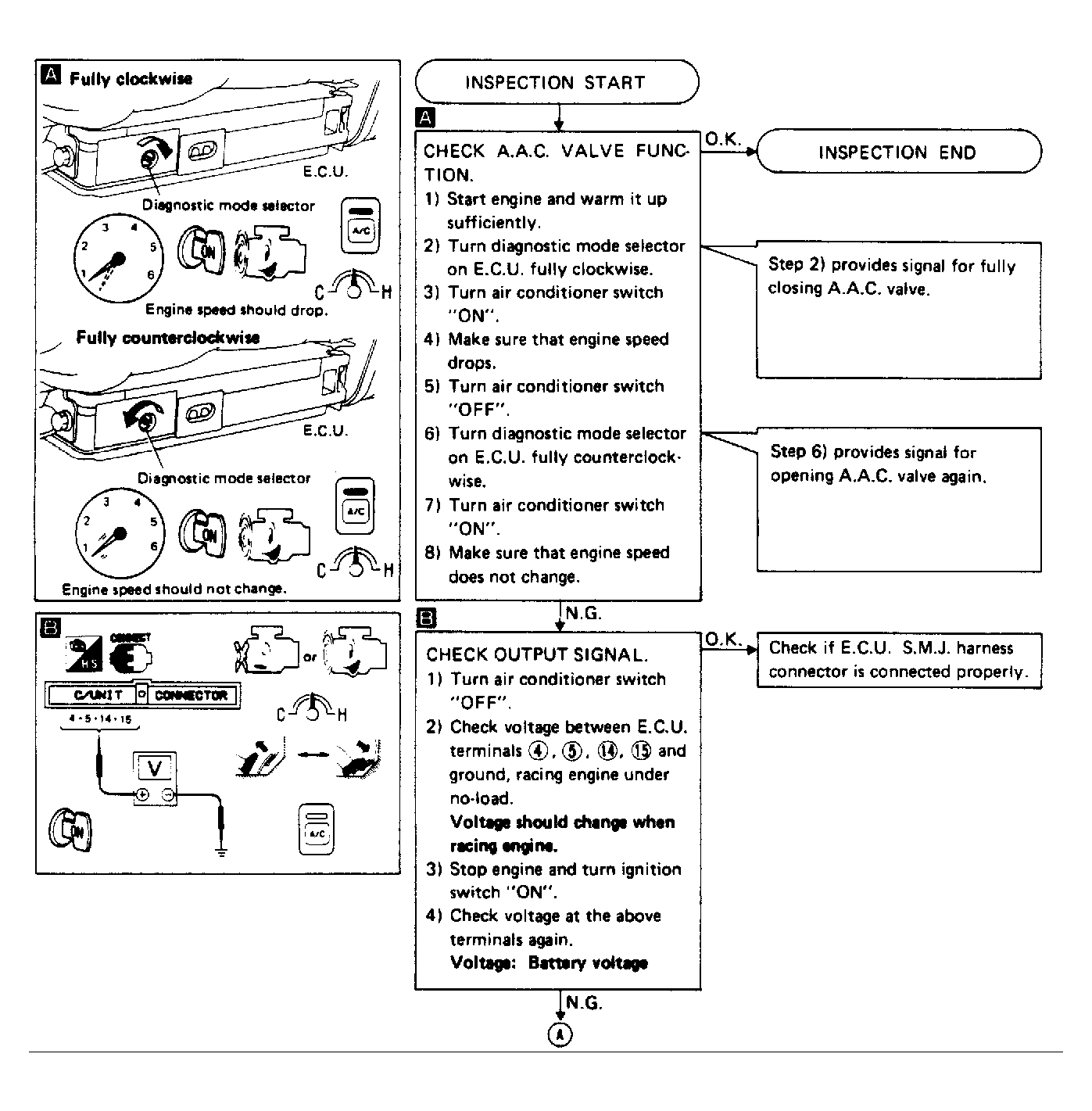

Fig 3: Auxiliary Air Control (AAC) Flow Chart Maxima SE (3 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
