EGR Function Chart

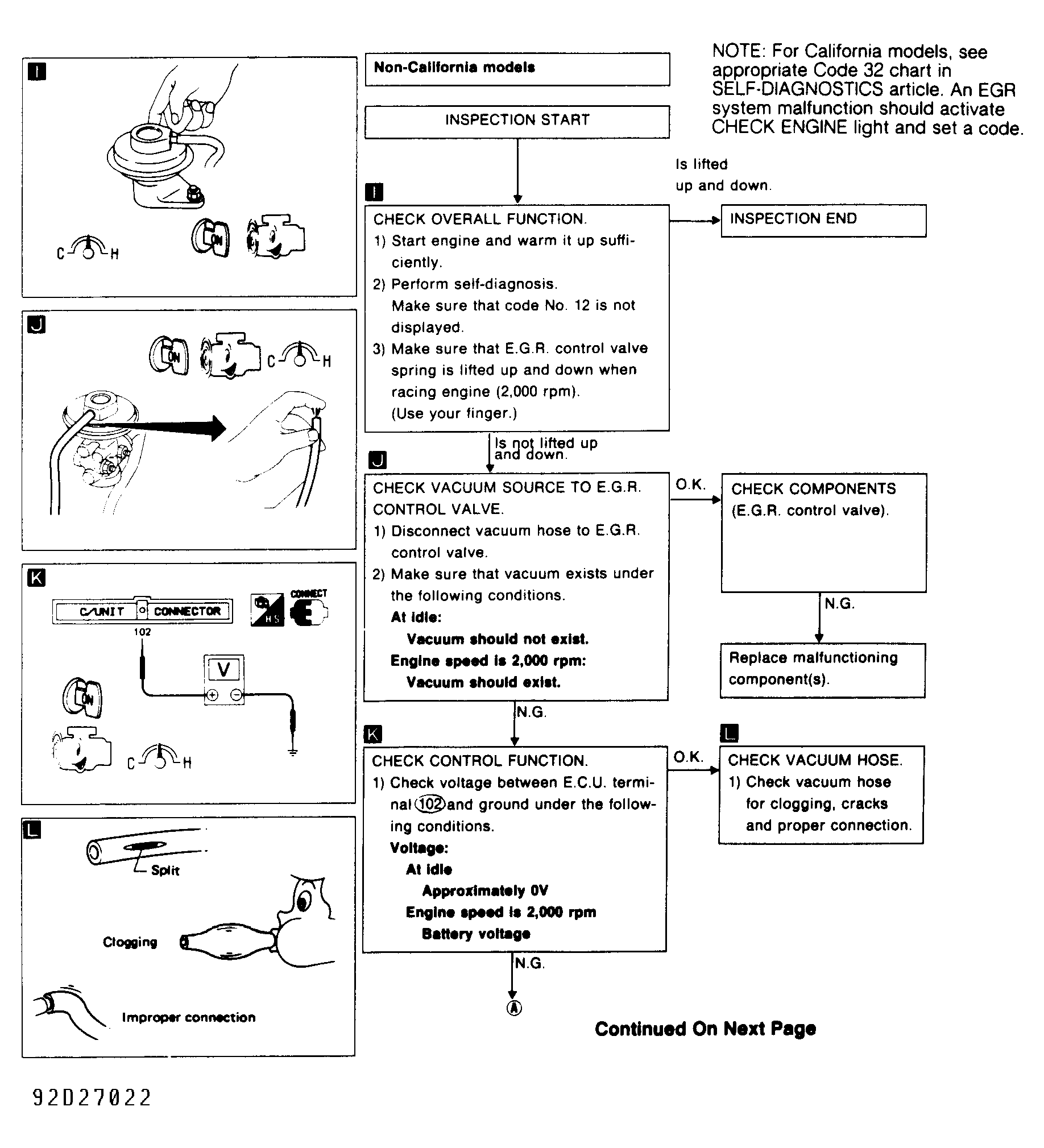

Fig 1: EGR Function Flow Chart (1 of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

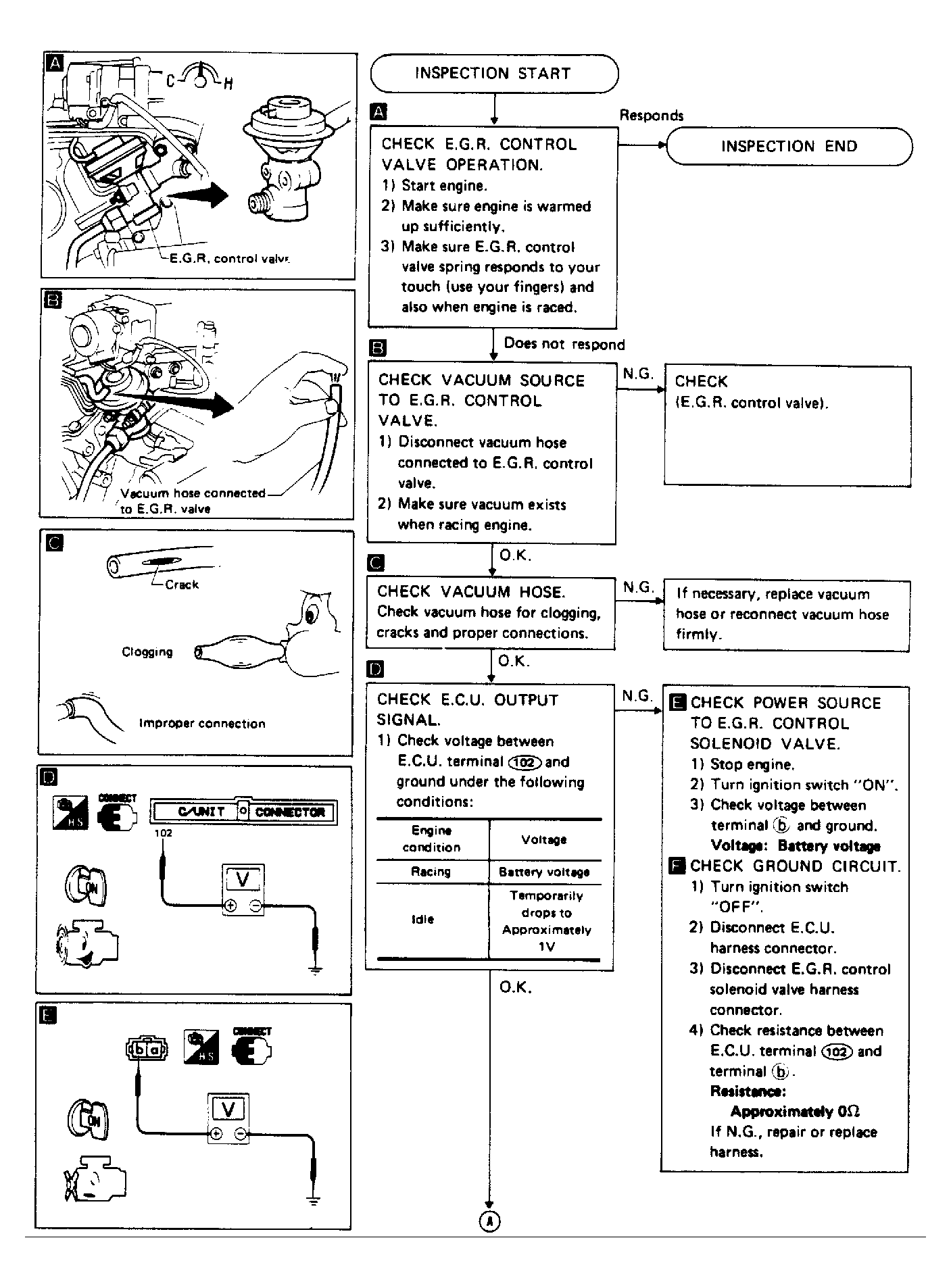

Fig 2: EGR Function Flow Chart (2 of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

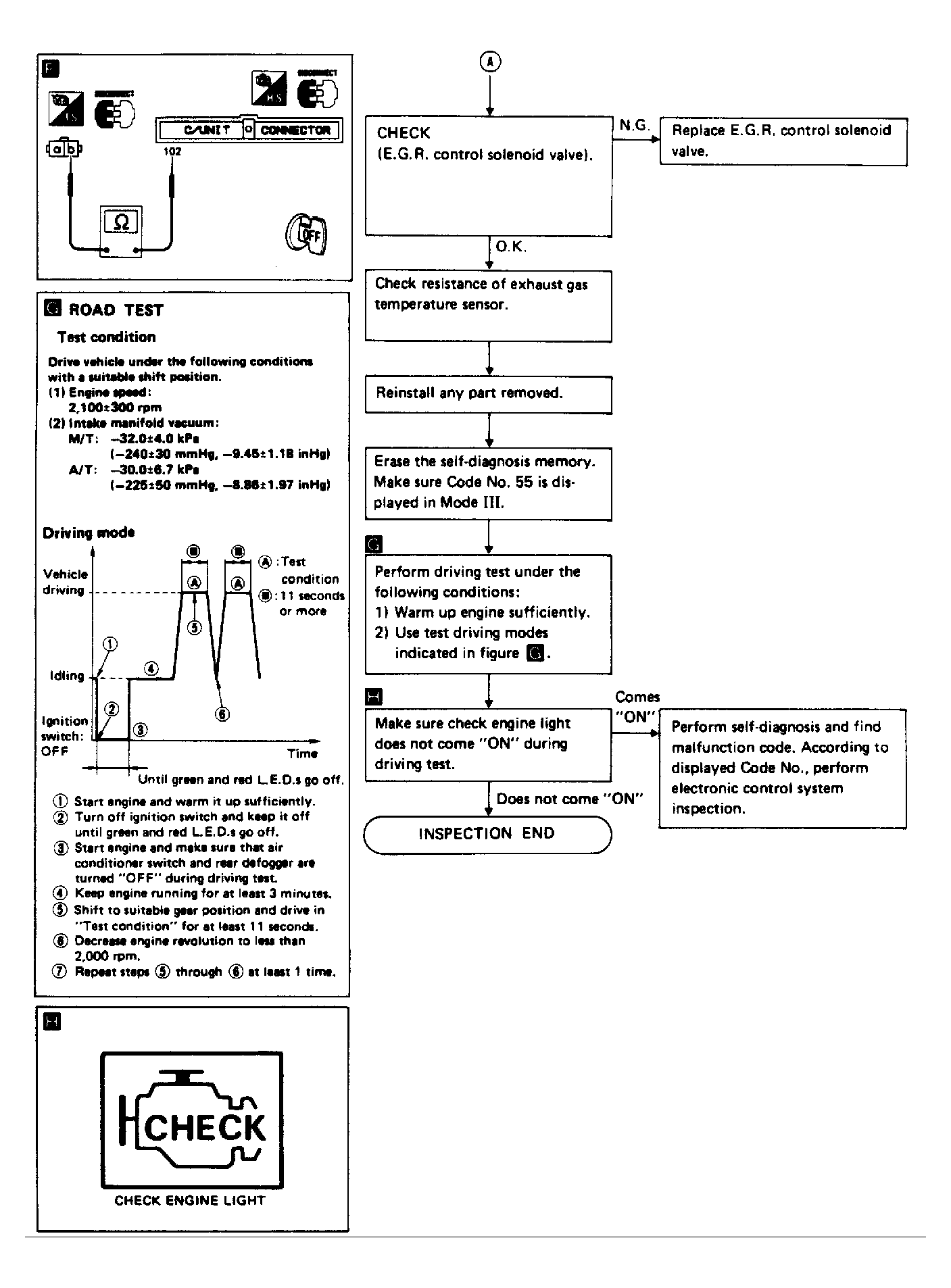

Fig 3: EGR Function Flow Chart Maxima SE (3 of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

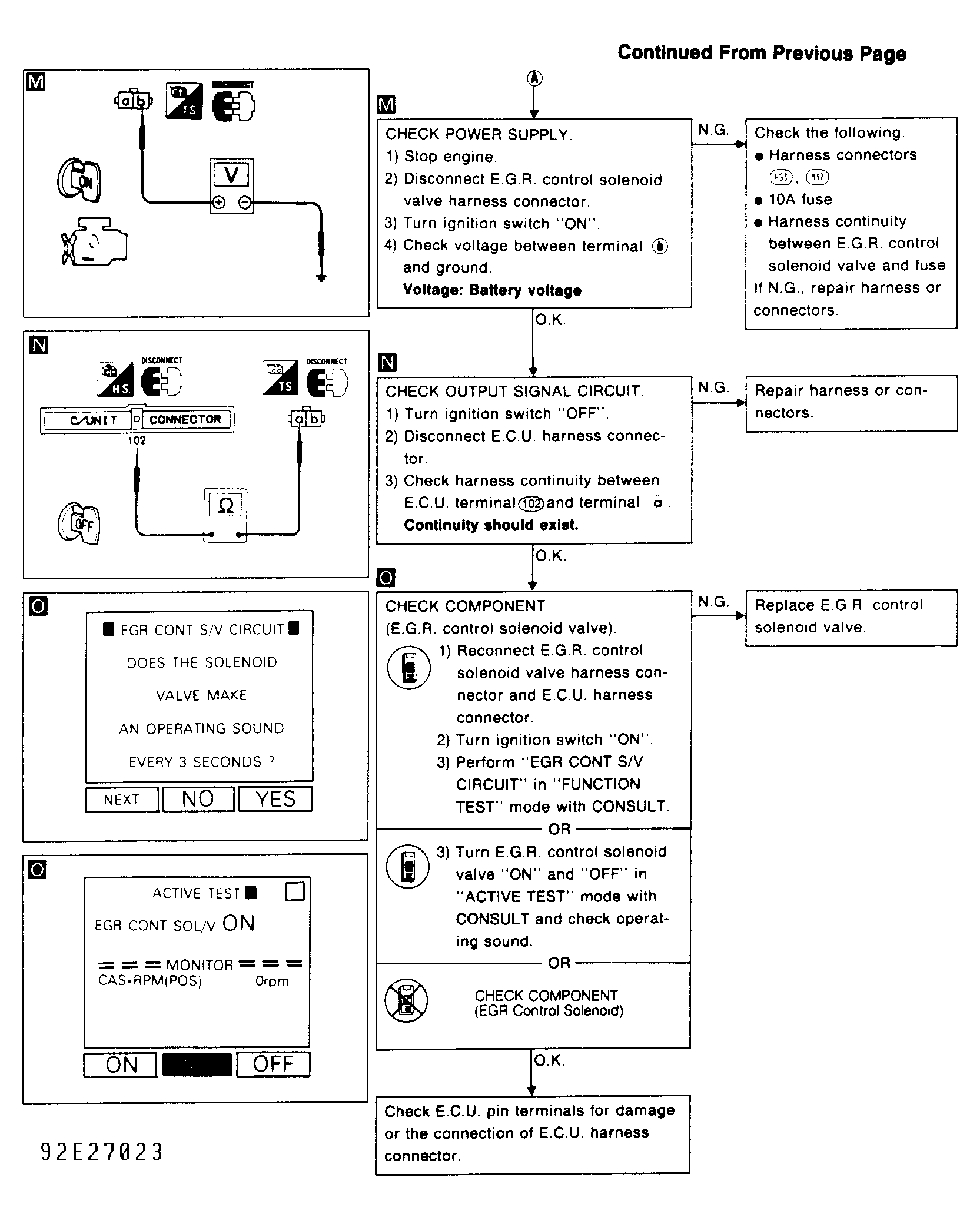

Fig 4: EGR Function Flow Chart Maxima SE (4 of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
