Vehicle Speed Sensor (VSS)

The VSS provides ECU with vehicle speed signal. VSS consists of a reed switch installed in the speedometer unit. Reed switch transforms vehicle speed into pulsed signal.

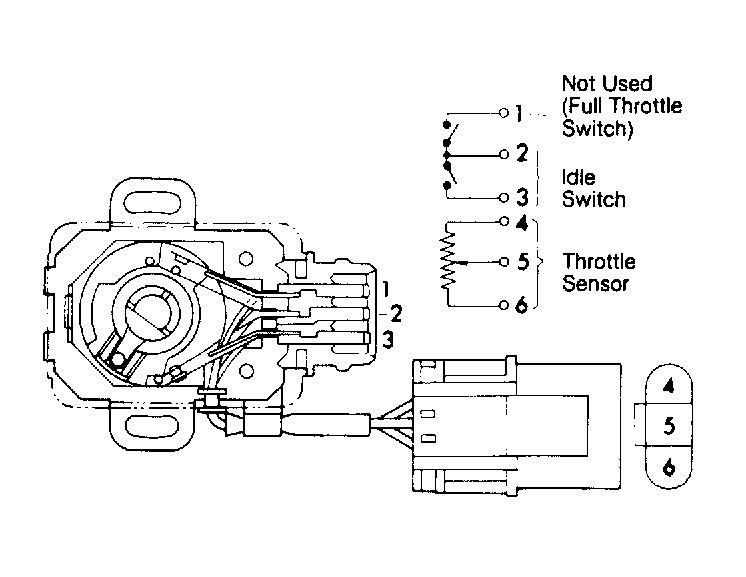

Fig 1: Throttle Position Sensor & Idle Switch
G90I19685Courtesy of NISSAN MOTOR CO., U.S.A.
