Actuator Motor Relay

Relay (metal body) is mounted on right front strut tower. Continuity should not be present between relay terminals No. 3 and 4. See Fig 1 . Apply battery voltage between terminals No. 1 and 2. Continuity should now be present between terminals No. 3 and 4.

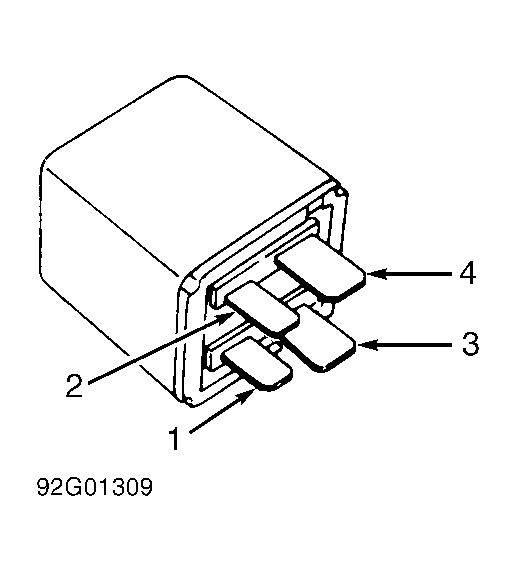

Fig 1: Identifying Actuator Motor Relay Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
