Repair and Diagnosis: Transmission: Clutches: Description

Clutch assembly is a single disc type with a diaphragm spring pressure plate. Use a mechanical control system consisting of clutch cable, release lever and release bearing.

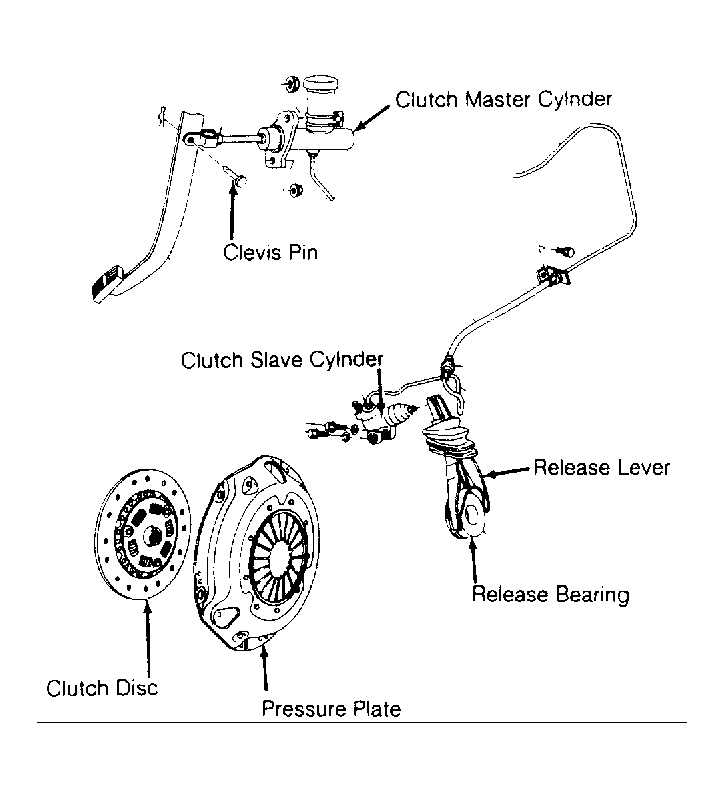

Fig 1: Exploded View Of Typical Hydraulic Clutch System

Courtesy of NISSAN MOTOR CO., U.S.A.
