DTC 13: Engine Coolant Temperature (ECT) Sensor
- Check Power Supply

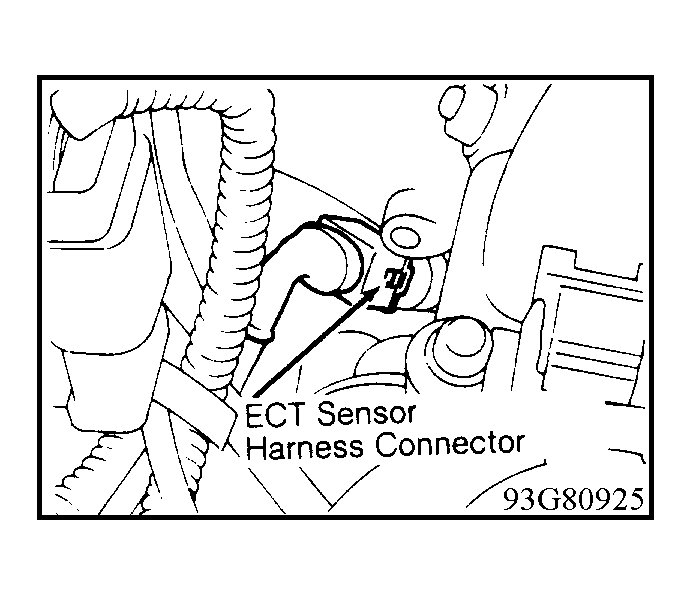

- Turn ignition off. Disconnect ECT sensor harness connector. See Fig 1
. Turn ignition on. Measure voltage between ECT sensor harness connector terminal "b" (Yellow wire) and ground. See Fig 2
. If voltage is about 5 volts, go to next step. If voltage is not as specified, repair harness or connectors as necessary.
- Check Ground Circuit
- Turn ignition off. Check continuity between terminal "a" (Black wire) and engine ground. See Fig 3
. If continuity is present, go to next step. If continuity is not present, repair harness or connectors as necessary.
- Check Component
- Inspect ECT sensor. See I - SYS/COMP TESTS article. Replace ECT sensor if necessary and perform FINAL CHECK
in this article. If ECT sensor is okay, check ECM pin terminals and wiring harness connector and repair as necessary.
