Set/Coast Switch Circuit

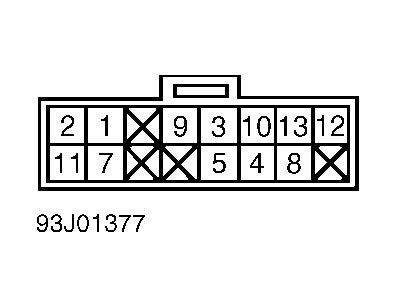

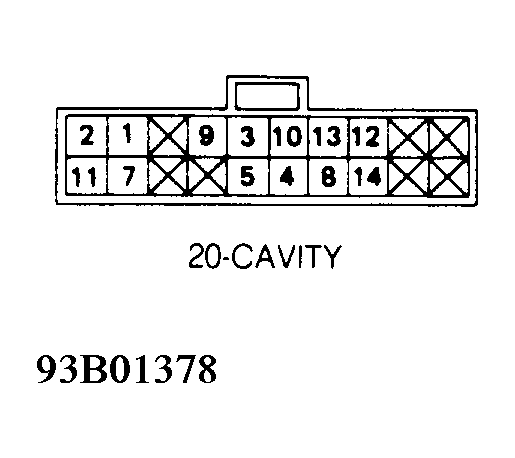

  1. Turn ignition off. Press and hold SET/COAST switch. Measure voltage between cruise control module connector terminals No. 2 and 3. See Figure and Figure.
  2. If battery voltage is NOT present, check SET/COAST switch wiring circuit. If SET/COAST switch wiring circuit is okay, replace SET/COAST switch.
