DTC 14: Vehicle Speed Sensor (VSS)
WARNING: This page is about a different variant/trim than selected.
- Check Speedometer Operation - VSS is built into speedometer. Ensure speedometer operates properly. If speedometer operates properly, go to next step. If speedometer does not operate properly, remove VSS from transaxle. Set voltmeter on AC scale. Connect voltmeter to VSS connector terminals. Turn VSS pinion gear. Voltage should be approximately 0.5 volt. If voltage is not correct, replace vehicle speed sensor. If voltage is correct, go to next step.
- Check Input Signal Circuit

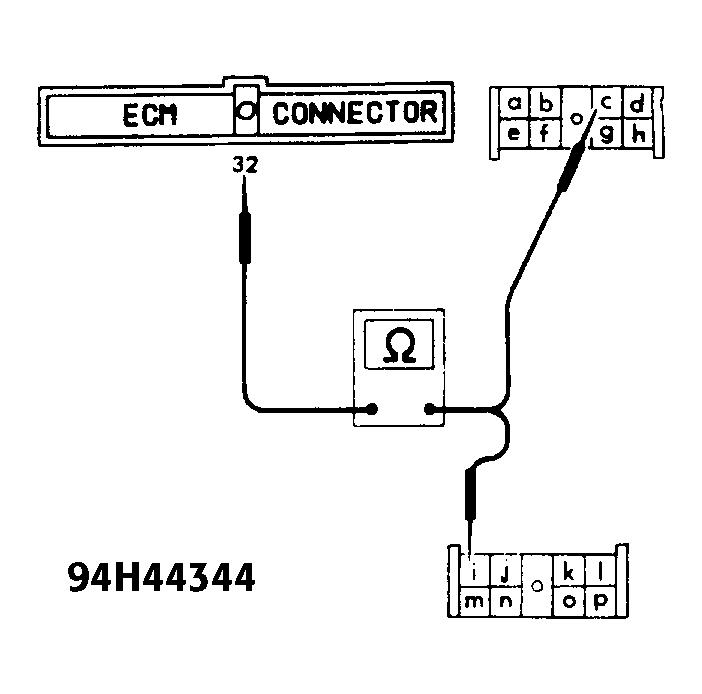

- Turn ignition off. Disconnect ECM and combination meter wiring harness connector. Check harness continuity between ECM terminal No. 32 and following combination meter terminal. See Fig 1
.
- Terminal "c" (Yellow/Green wire) on models with tachometer.
- Terminal "i" (Yellow/Green wire) on models without tachometer.
If continuity is present, check ECM pin terminals and connector and repair as necessary. If continuity is not present, repair wiring harness or connectors as necessary and perform FINAL CHECK in this article.
