DTC 35: EGR Temperature Sensor (CALIF.)

WARNING: This page is about a different variant/trim than selected.

Check Power Supply - Turn ignition off. Disconnect EGR temperature sensor wiring harness connector. See Fig 1 . Turn ignition on. Measure voltage between EGR temperature sensor connector terminal "b" (Blue/Red wire) and ground. See Fig 2 . If voltage is about 4.5 volts, go to next step. If voltage is not about 4.5 volts, repair harness or connectors as necessary.
Check Ground Circuit - Turn ignition off. Check continuity between EGR temperature sensor connector terminal "a" (Gray wire) and engine ground. See Fig 3 . If continuity is present, go to next step. If continuity is not present, repair harness or connectors as necessary.
Check Component - Inspect EGR temperature sensor. See the SYSTEM/COMPONENT TESTS article in the ENGINE PERFORMANCE section. Replace EGR temperature sensor if necessary and perform FINAL CHECK in this article. If EGR sensor is okay, repair ECM pin terminals or wiring harness connector.

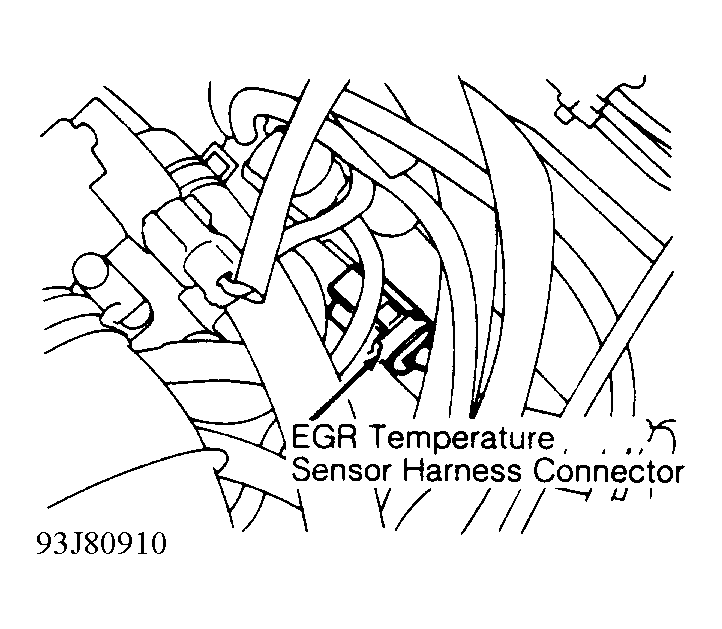

Fig 1: Locating EGR Temperature Sensor Connector (Sentra)

Courtesy of NISSAN MOTOR CO., U.S.A.

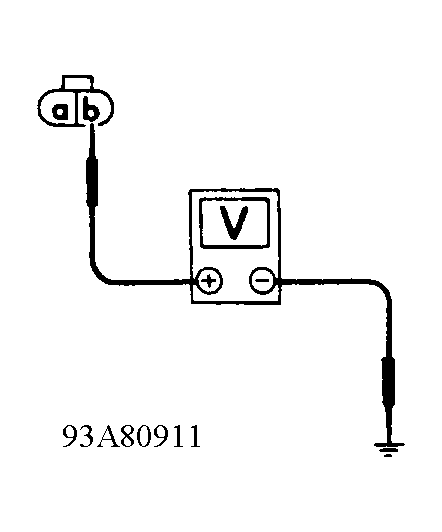

Fig 2: DTC 35, Checking Power Supply (Sentra)

Courtesy of NISSAN MOTOR CO., U.S.A.

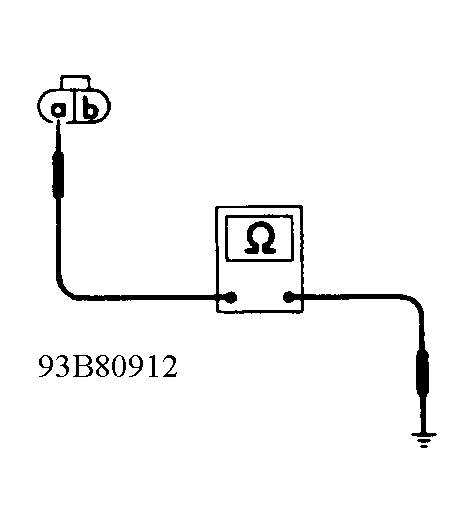

Fig 3: DTC 35, Checking Ground Circuit (Sentra)

Courtesy of NISSAN MOTOR CO., U.S.A.
