Control Valve Lower Body: Reassembly

Lay control valve body face down when installing valves. DO NOT stand valve body on edge. Lubricate valves and control valve body with ATF prior to installation. Install control valves by sliding valves into appropriate bores. DO NOT scratch or damage valve body.
Wrap shaft of a small screwdriver with vinyl tape and insert valves into bores using the screwdriver as necessary. While pushing on the plug or return spring, install the retainer plates. See the LOWER VALVE BODY RETAINER PLATE IDENTIFICATION table for retainer plate dimensions.

LOWER VALVE BODY RETAINER PLATE IDENTIFICATION ⁽¹⁾

Application

Length "A" In. (mm)

Length "B" In. (mm)

Accumulator Shift Valve

.236 (6.00)

.768 (19.50)

All Other Valves ⁽²⁾

.236 (6.00)

1.102 (28.00)

⁽¹⁾	See Figure for retainer plate locations.

⁽²⁾	Shift Valve "B" not applicable. All valves use type "A" retainer plate except shift valve "B" (Type "B"). See Fig 2.

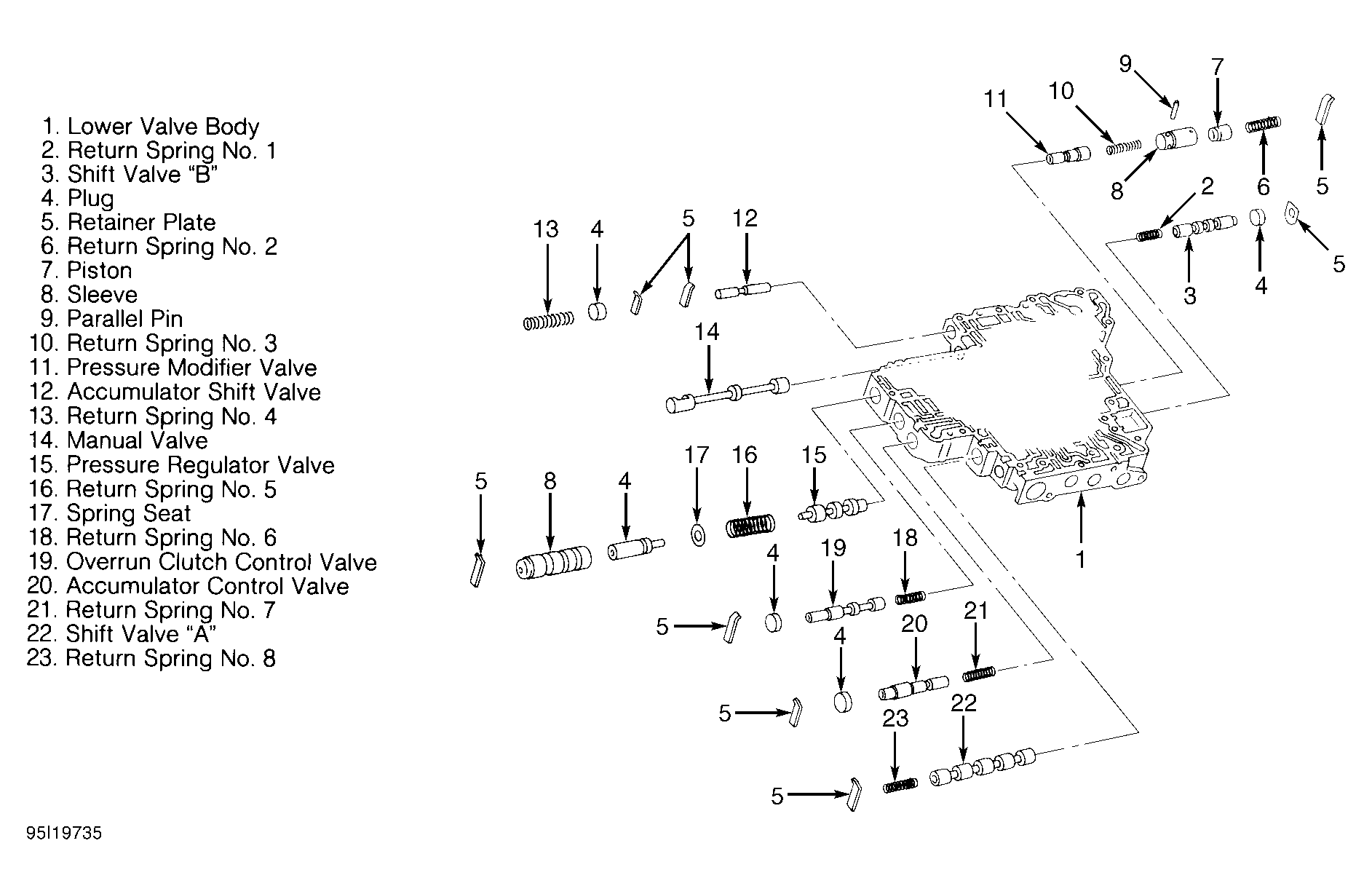

Fig 1: Exploded View Of Control Valve Lower Body

Courtesy of NISSAN MOTOR CO., U.S.A.

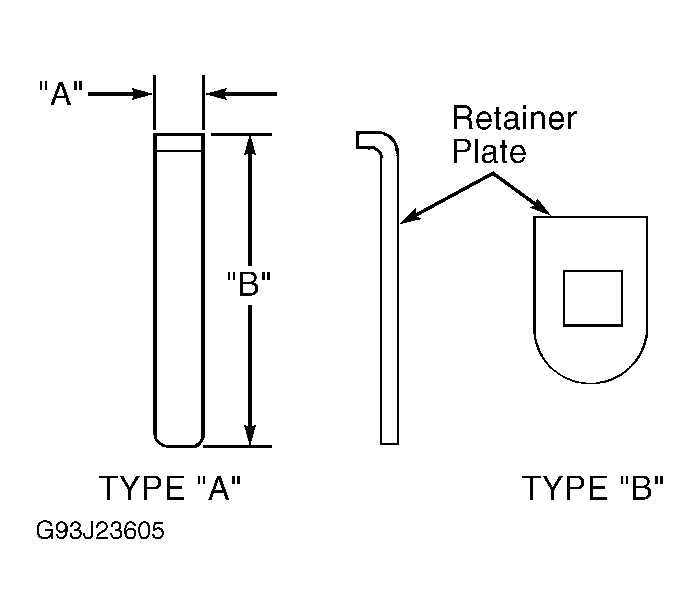

Fig 2: Measuring Retainer Plate Dimensions (Lower Valve Body)

Courtesy of NISSAN MOTOR CO., U.S.A.
