Overhaul - Re4F03V: Identification

Transaxle model is located on vehicle identification plate in engine compartment area, on firewall. See Fig 1. Transaxle number is located on transaxle governor cap. Governor cap is still a component of this transaxle although governor is no longer used. See Fig 2.

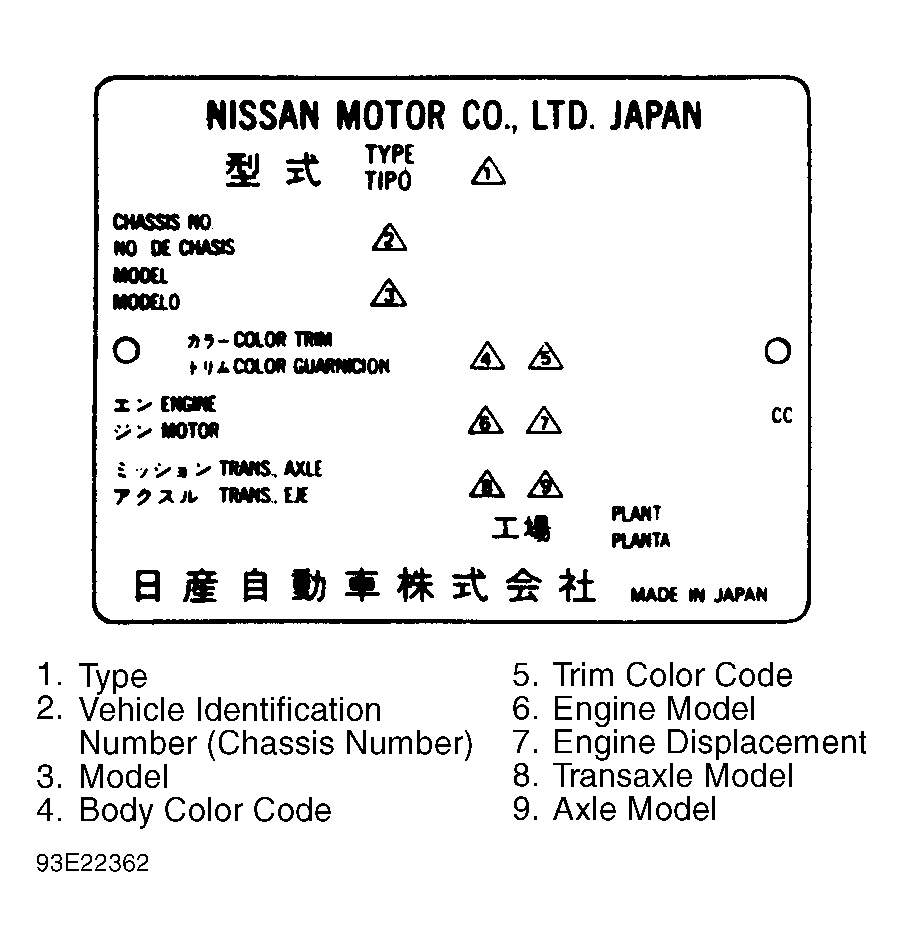

Fig 1: Vehicle Identification Plate Information

Courtesy of NISSAN MOTOR CO., U.S.A.

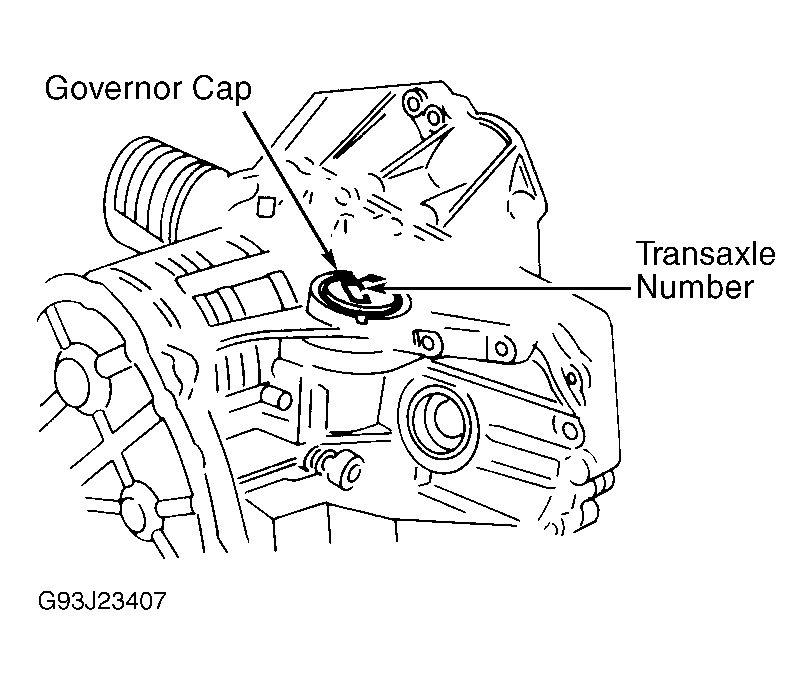

Fig 2: Locating Automatic Transaxle Number

Courtesy of NISSAN MOTOR CO., U.S.A.
