Main Power Supply

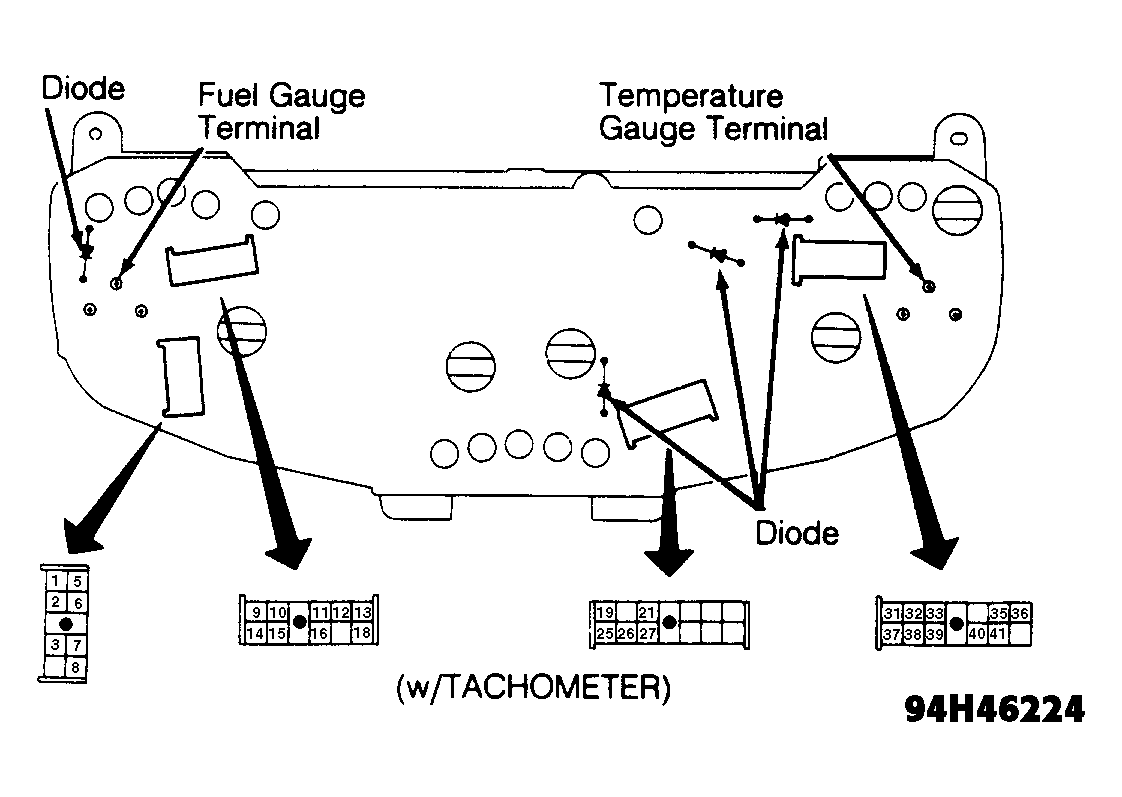

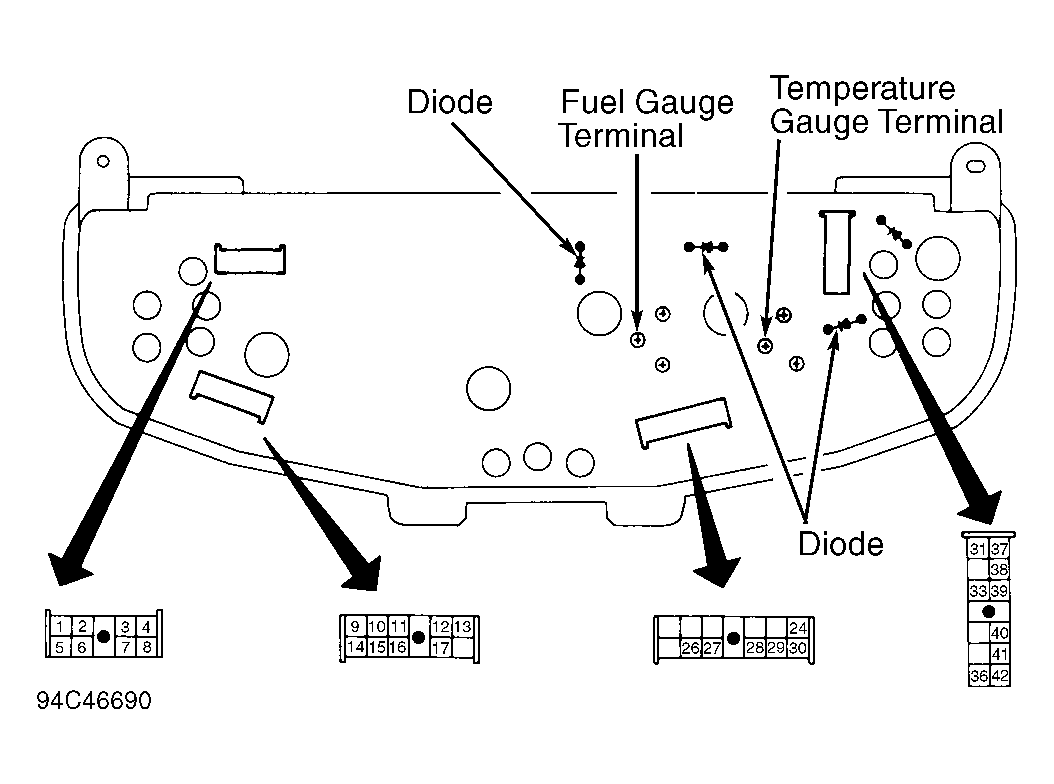

Remove instrument cluster. Turn ignition on. Check voltage between ground and specified terminal of instrument cluster connector. See MAIN POWER SUPPLY TEST TERMINALS table. See Figure and Figure . If battery voltage is not present, check for blown fuse, open fusible link, open wiring harness, faulty ignition relay and/or faulty ignition switch.
