Check Input Signal Circuit

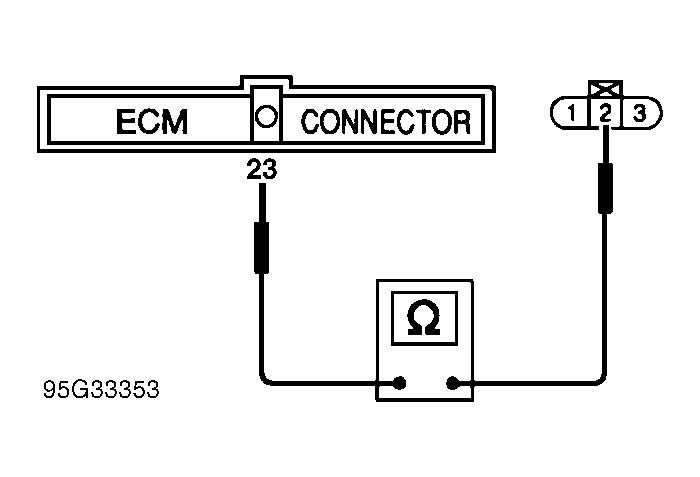

Disconnect ECM harness connector. See Figure. Check harness continuity between ECM connector terminal No. 23 and TPS connector terminal No. 2 (Yellow wire). See Figure. If continuity is present, go to next test. If continuity is not present, repair harness or connectors as necessary.
