Torque Specifications
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | |||||
|---|---|---|---|---|---|---|
| Knock Sensor Bolt | 15-19 (21-26) | |||||

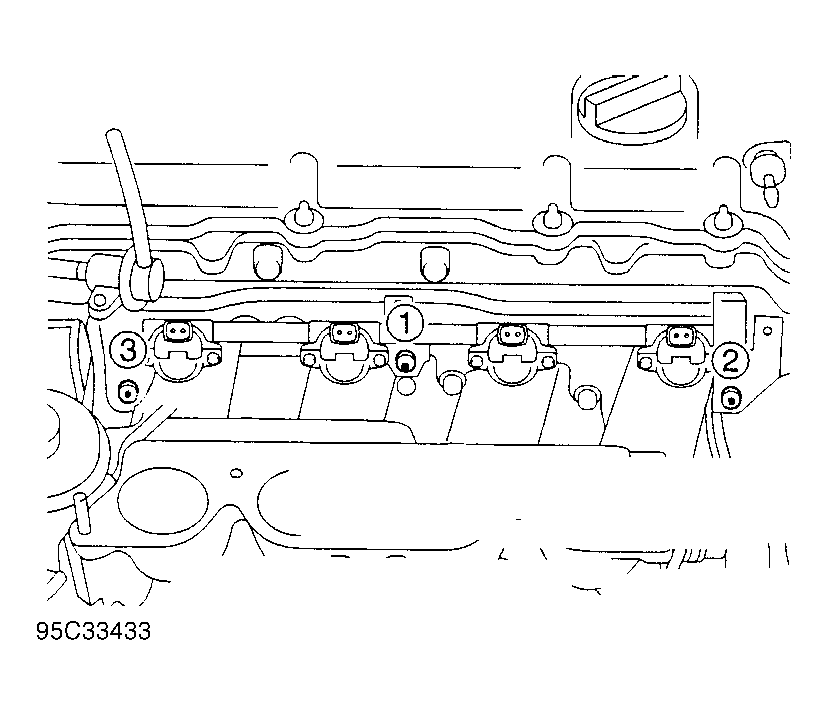

| Fuel Rail Bolt | ||||||
| 1.6L | (1) 12-16 (16-21) | |||||
| 2.0L | (1) 15-19 (21-26) | |||||
| Intake Manifold Collector Bolt | ||||||
| 1.6L | (2) 12-15 (16-21) | |||||
| 2.0L | 13-15 (18-21) | |||||
| Intake Manifold Collector Support Bolt | ||||||
| 2.0L | 16-19 (21-26) | |||||
| Oxygen Sensor | 30-37 (40-50) | |||||
| INCH Lbs. (N.m) | ||||||
| Distributor Hold-Down Bolt | ||||||
| 1.6L | 81-105 (9.1-11.8) | |||||
| Fuel Injector Holder Screw | 26-35 (2.9-3.9) | |||||
| Fuel Pump Bolt |
28-37 (3.2-4.2) | |||||
|
||||||
