Power Transistor Circuits

Disconnect power transistor unit connector. Check resistance at each power transistor unit terminal. See Fig 2 . If resistance is no t as specified, replace power transistor.

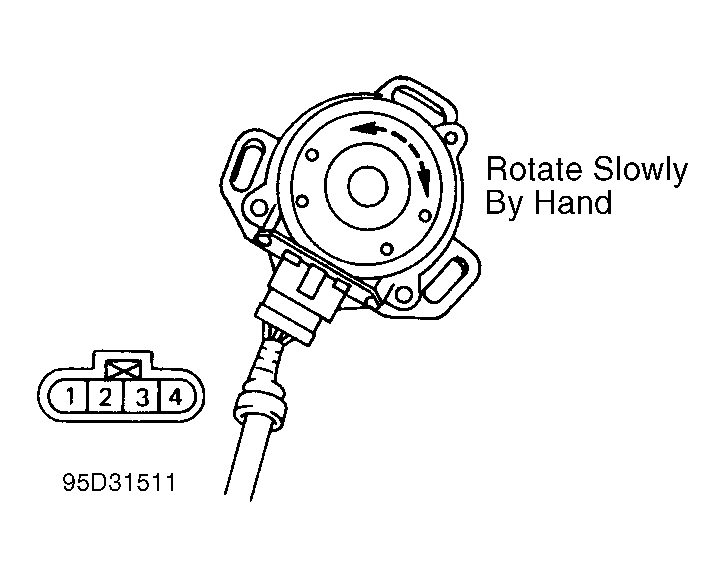

Fig 1: Camshaft Sensor Wiring Harness Connector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

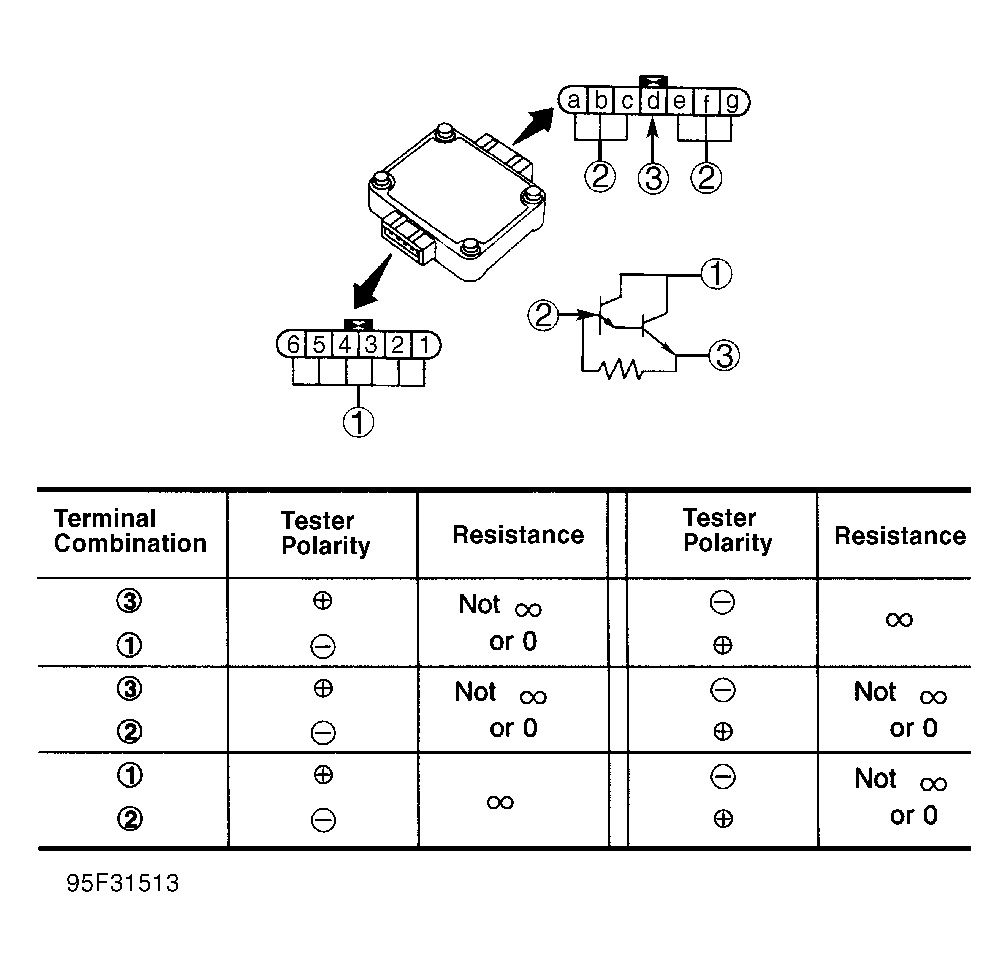

Fig 2: Power Transistor Terminals & Test Combinations

Courtesy of NISSAN MOTOR CO., U.S.A.
