Radiator Fan Motor Test

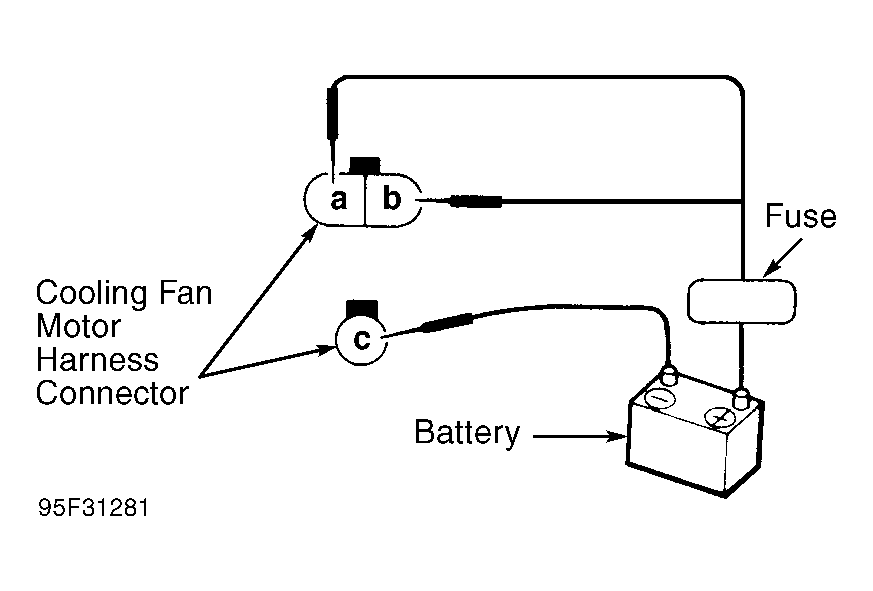

Disconnect fan motor harness connector(s). Apply battery across fan motor terminals and observe motor operation. See Fig 1 . See FAN MOTOR OPERATION TEST table. If motor does not operate as indicated, replace motor.
FAN MOTOR OPERATION TEST
| Motor Speed | Battery Positive (+) | Battery Negative (-) |
|---|---|---|
| Low | "A" | "C" |
| High | "B" | "C" |
