Component Locations

COMPONENT LOCATIONS

Component	Location
Body Ground M14	Behind Left Kick Panel
Body Ground M68	Behind Right Kick Panel
Fuse Block	Under Lower Left Side Of Instrument Panel, Behind Cover
Power Mirror	Front Door Lower Front Corner
Power Mirror Control Switch	Driver Side Of Instrument Panel

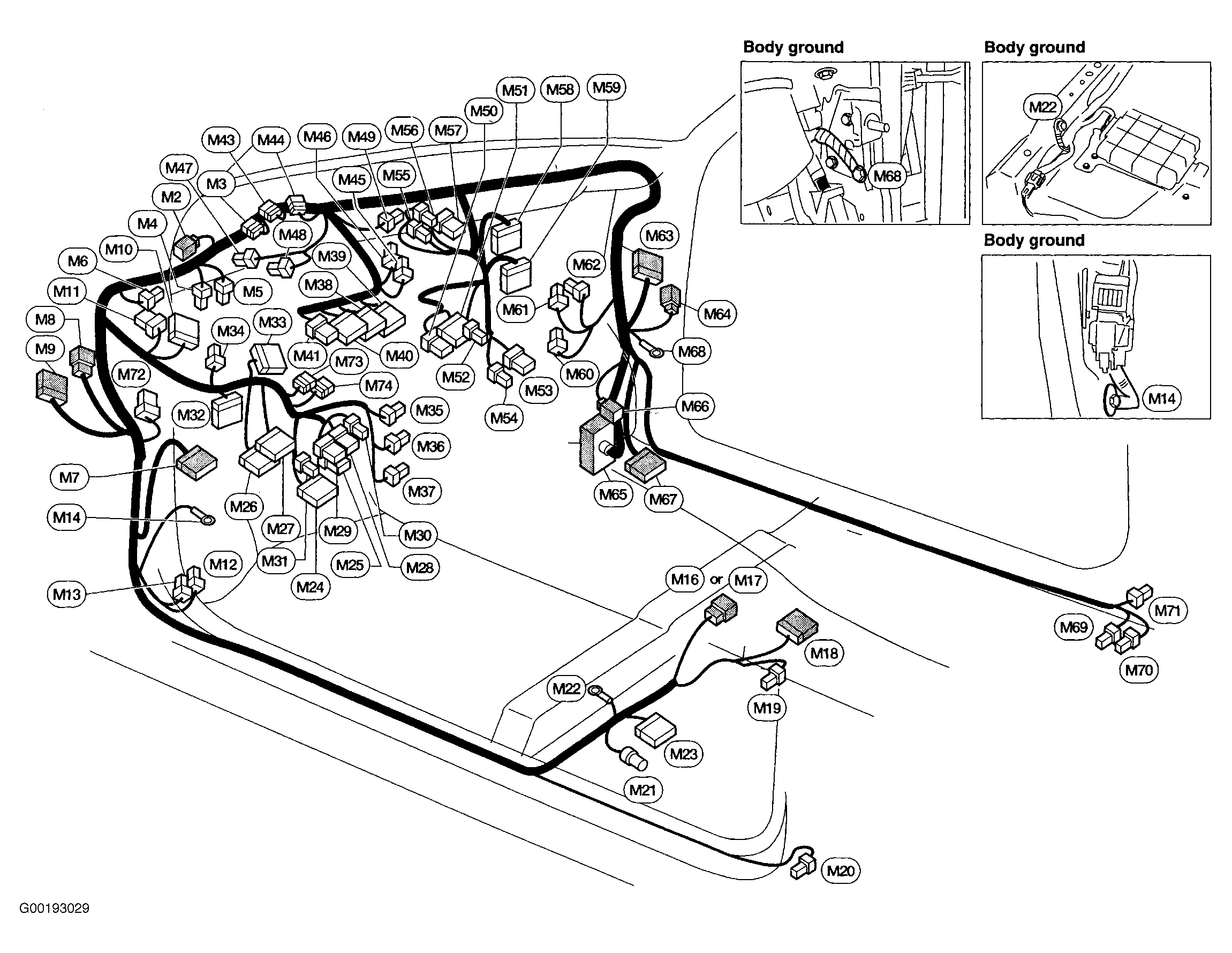

Fig 1: Locating Body Grounds M14 & M68

Courtesy of NISSAN MOTOR CO., U.S.A.
