TCM Terminals And Reference Value

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Remarks: Specification data are reference values.

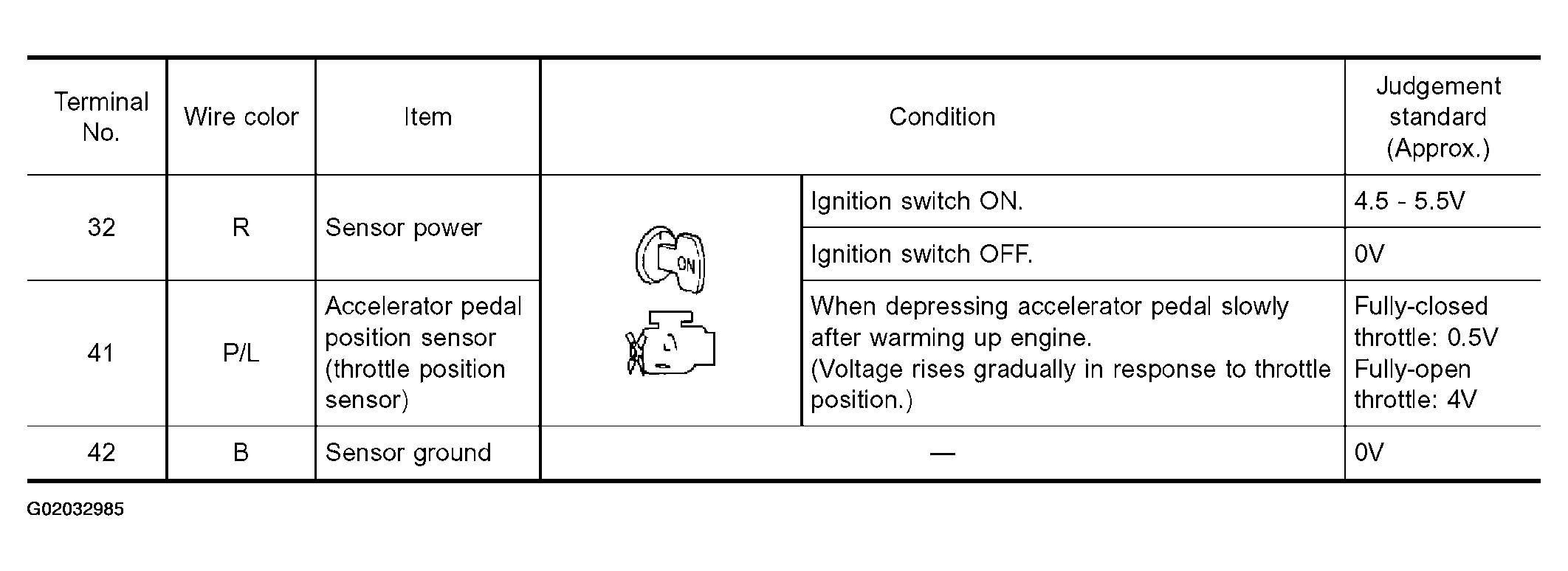

Fig 1: TCM Terminals And Reference Value
G02032985Courtesy of NISSAN MOTOR CO., U.S.A.
