Steering Column: Installation
- When installing steering column, finger-tighten all lower bracket and clamp retaining bolts; then tighten them securely.
Make sure that undue stress is not applied to steering column.

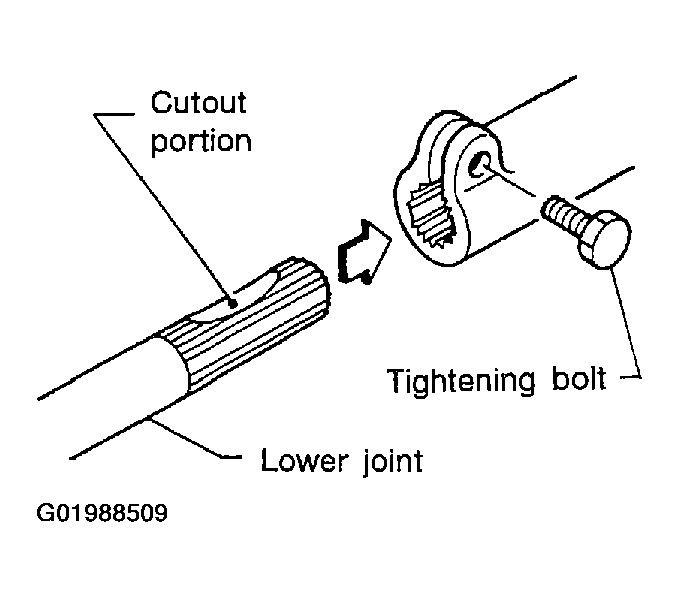

- When fitting steering lower joint, be sure tightening bolt faces cutout portion.
- Align spiral cable correctly when installing steering wheel.
Refer to DRIVER-SIDE AIR BAG MODULE & SPIRAL CABLE .
CAUTION:
After installation, turn steering wheel to make sure it moves smoothly. Ensure the number of turns from the straight forward position to left and right locks are the same. Be sure that the steering wheel is in a neutral position when driving straight ahead.
