Electrical Component Locator: Grounds

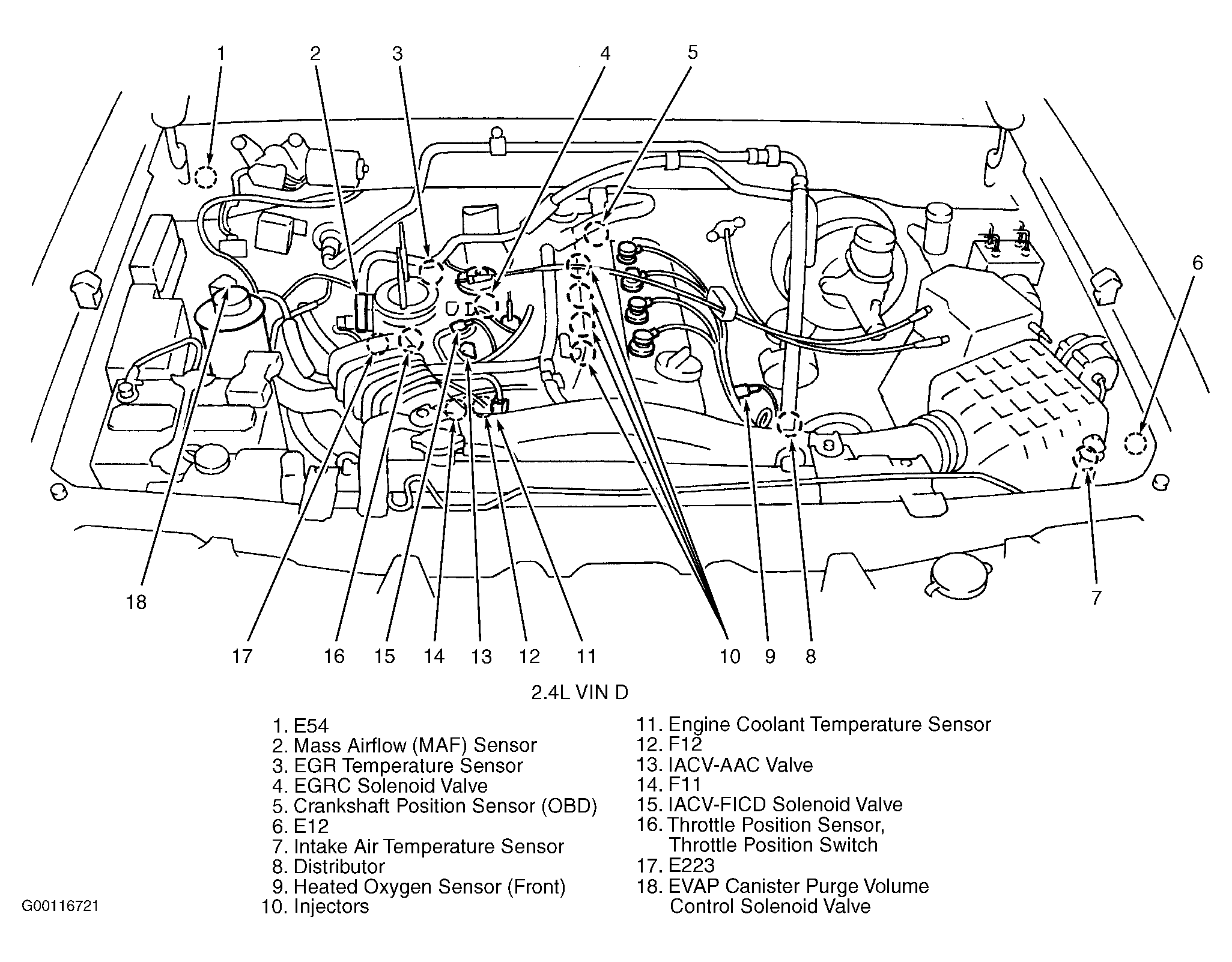

GROUNDS LOCATION
| Component | Component Location |
|---|---|
| A1 (3.3L VIN E) | Left front corner of engine compartment. See Figure . |
| A1 (3.3L VIN M) | Left front corner of engine compartment. See Figure . |
| E12 (2.4L) | Left front corner of engine compartment. See Figure . |
| E12 (3.3L VIN E) | Left front corner of engine compartment. See Figure . |
| E12 (3.3L VIN M) | Left front corner of engine compartment. See Figure . |
| E14 (3.3L VIN E) | Left front corner of engine compartment. See Figure . |
| E14 (3.3L VIN M) | Left front corner of engine compartment. See Figure . |
| E54 (2.4L) | Rear right corner of engine compartment. See Figure . |
| E54 (3.3L VIN E) | Rear right corner of engine compartment. See Figure . |
| E54 (3.3L VIN M) | Rear right corner of engine compartment. See Figure . |
| E203 | Right side of engine compartment. |
| E222 | On battery ground cable. |
| E223 | On intake manifold. See Figure . |
| F11 (2.4L) | Near engine coolant temperature sensor. See Figure . |
| F11 (3.3L VIN E) | On left side of engine. See Figure . |
| F11 (3.3L VIN M) | On left side of engine. See Figure . |
| F12 (2.4L) | Near engine coolant temperature sensor. See Figure . |
| F12 (3.3L VIN E) | On left side of engine. See Figure . |
| F12 (3.3L VIN M) | On left side of engine. See Figure . |
| M14 | On left "A" pillar. |
| M22 | Under drivers seat. |
| M68 | Right "A" pillar. |
