Counter Gear: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install front sub-gear, dish plate and spacer (M/T model only).
  2. Press on counter gear front bearing.
  3. Install rear sub-gear, dish plate and spacer (M/T model only).
  4. Press on counter gear rear bearing.

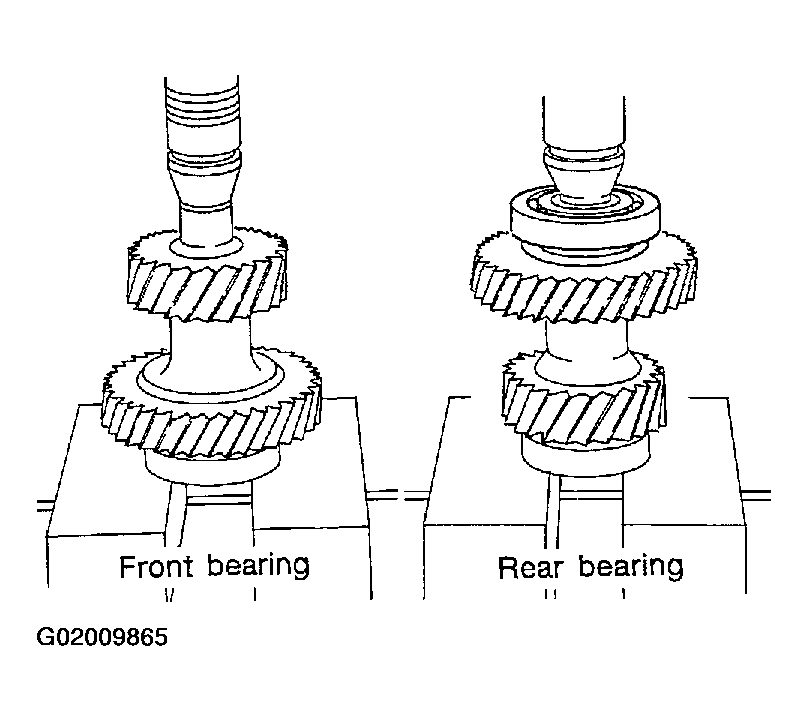

    Fig 1: Pressing Counter Gear Front Bearing And Counter Gear Rear Bearing
    G02009865Courtesy of NISSAN MOTOR CO., U.S.A.
