Main Gear Bearing

WARNING: This page is about a different variant/trim than selected.

Press on main gear bearing.

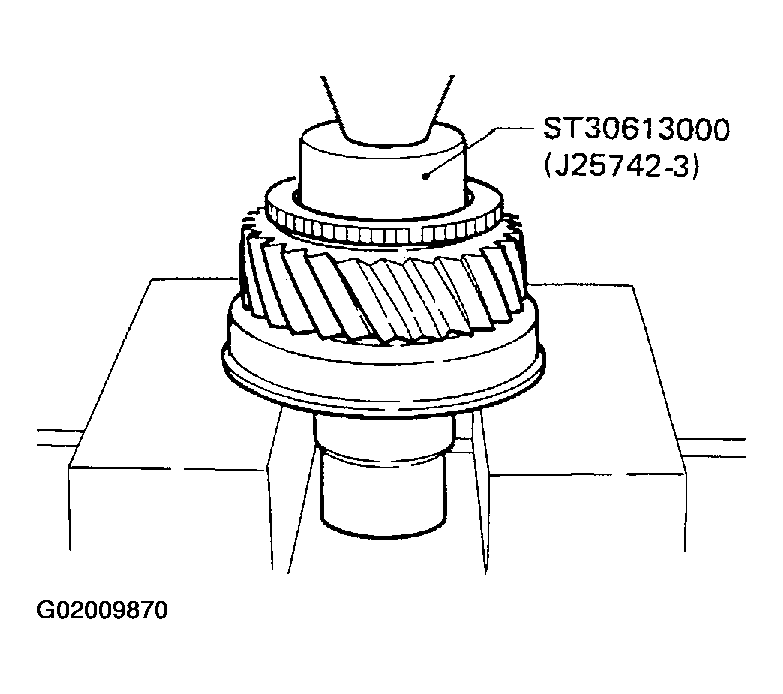

Fig 1: Pressing Main Gear Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Select and install snap ring with proper thickness.
Allowable clearance between snap ring and groove: 0 - 0.15 mm (0 - 0.0059 in)

Available snap ring for main gear bearing: Refer to " MAIN GEAR BEARING " .

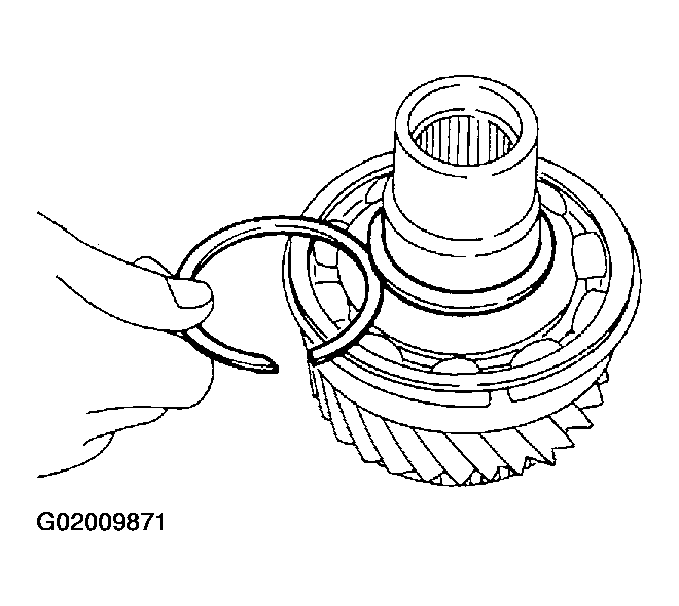

Fig 2: Installing Snap Ring Of Proper Thickness
Courtesy of NISSAN MOTOR CO., U.S.A.
