2-4 Shift Rod & Fork

WARNING: This page is about a different variant/trim than selected.

Assemble as shown in illustration.

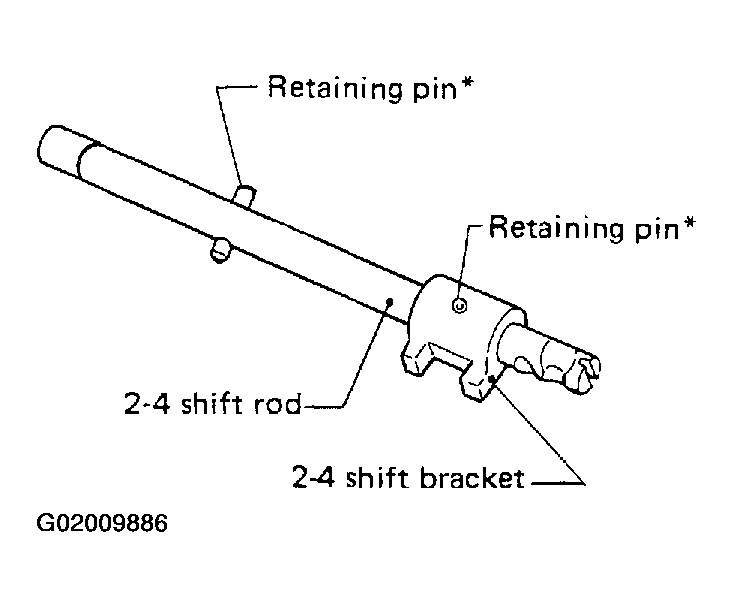

*Retaining pins are the same size.

Fig 1: Inspecting 2-4 Shift Rod And Fork (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

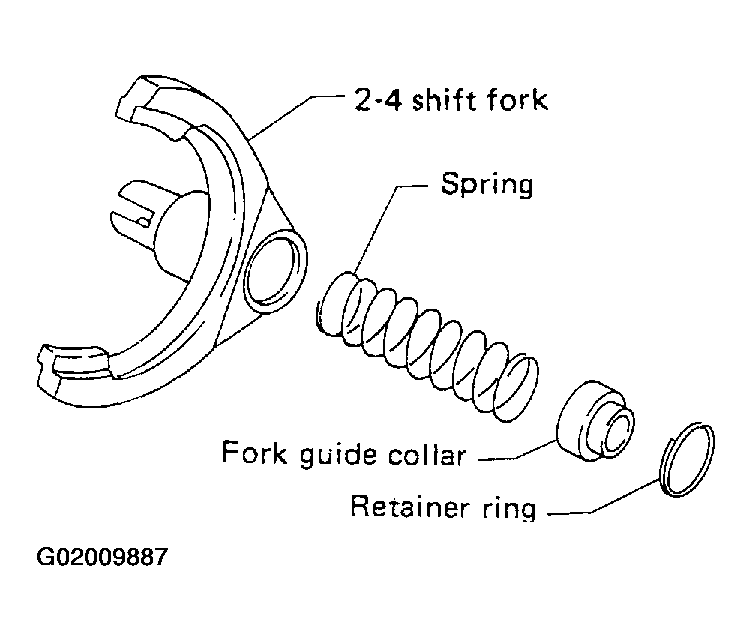

Pay special attention to the direction of fork guide collar.

Fig 2: Inspecting 2-4 Shift Rod And Fork (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
