Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|

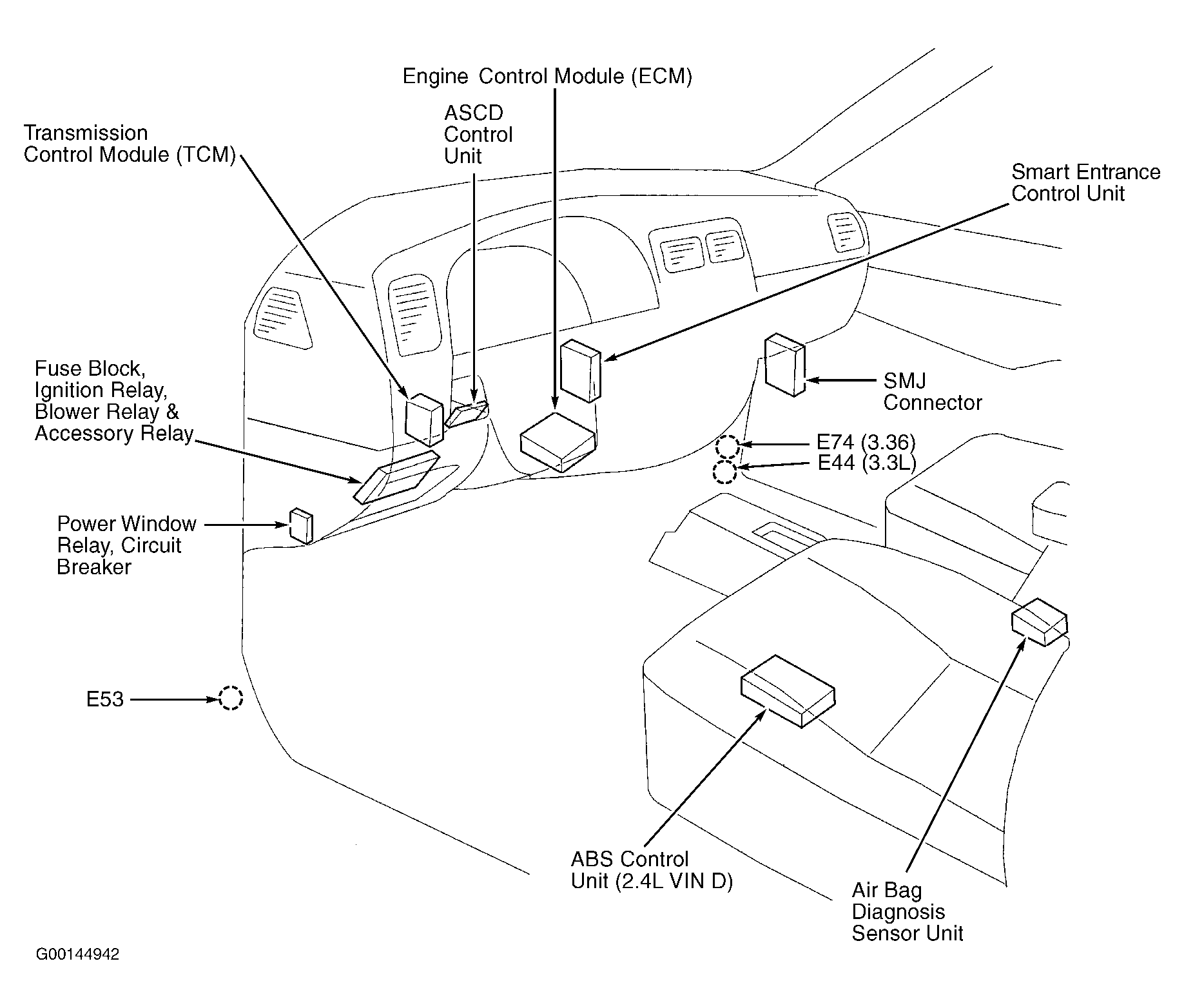

| Circuit Breaker | Behind lower left end of dash. See Figure . |
| Fuse Block | At left side of dash, behind cover. See Figure . |

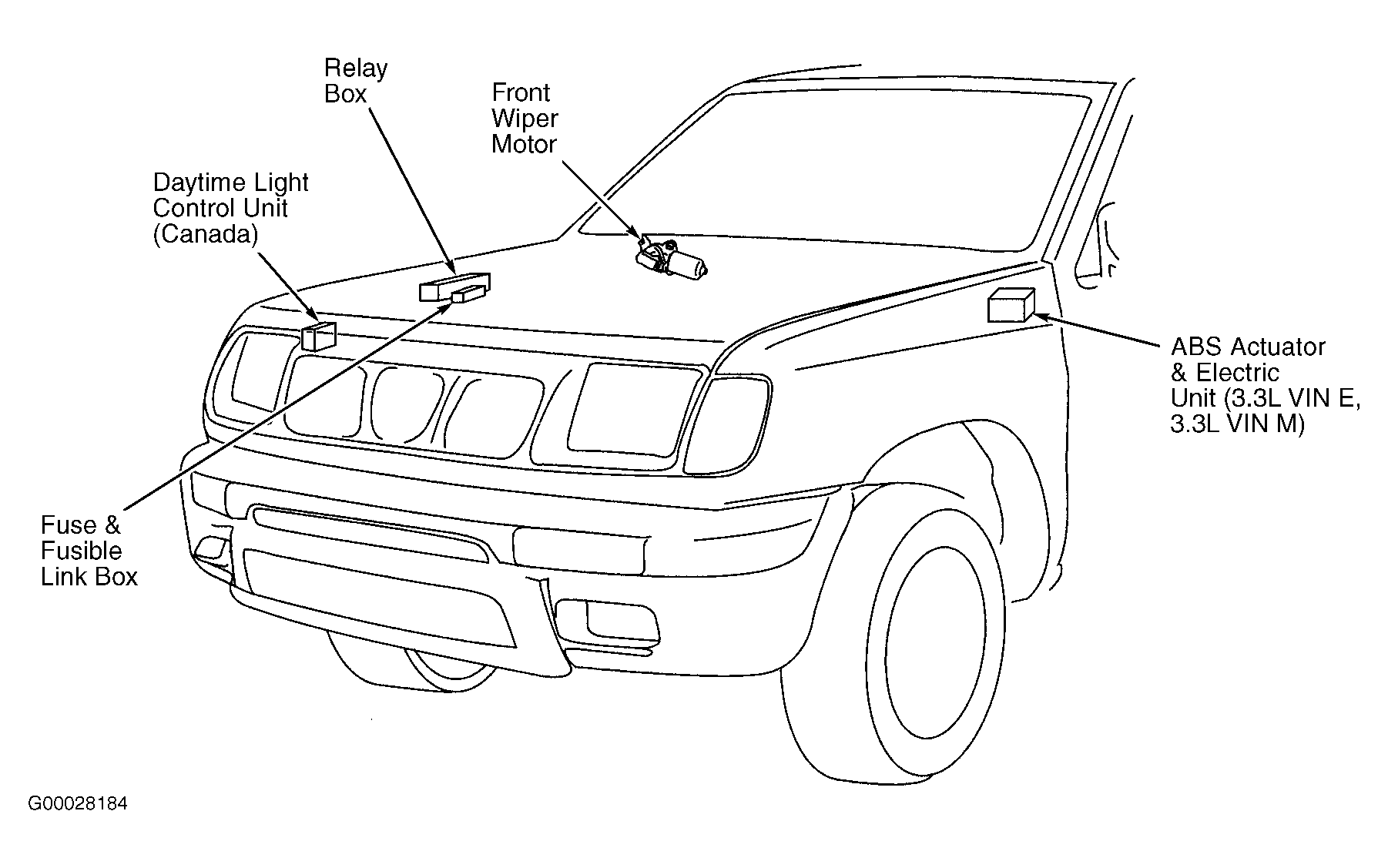

| Fuse & Fusible Link Box | At right side of engine compartment. See Figure . |
| Relay Box | At right side of engine compartment. See Figure . |
