Checking Neutral Position On Steering Wheel: Checking

  1. Check that the steering wheel is in the neutral position when driving straight ahead.

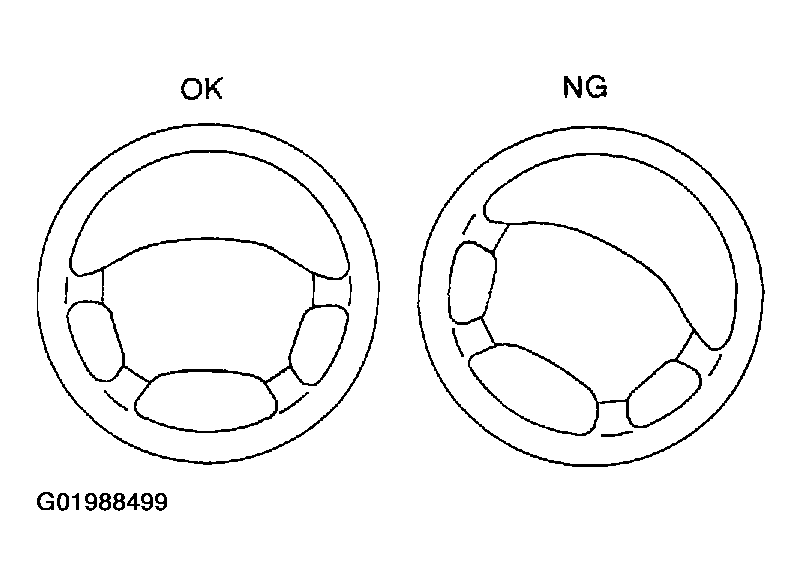

    Fig 1: Identifying Neutral Positions Of Steering Wheel
    G01988499Courtesy of NISSAN MOTOR CO., U.S.A.
  2. If it is not in the neutral position, remove the steering wheel and reinstall it correctly.
  3. If the neutral position is still not correct:
    1. Loosen tie-rod lock nuts.
    2. Move tie-rods, in opposite direction, the same amount on both left and right sides.

      This will compensate for error in the neutral position.
