Left Door Lock/Unlock Switch Check

NOTE: For wiring diagrams, see WIRING DIAGRAMS  .

For left door lock/unlock switch check, see Fig 1 .

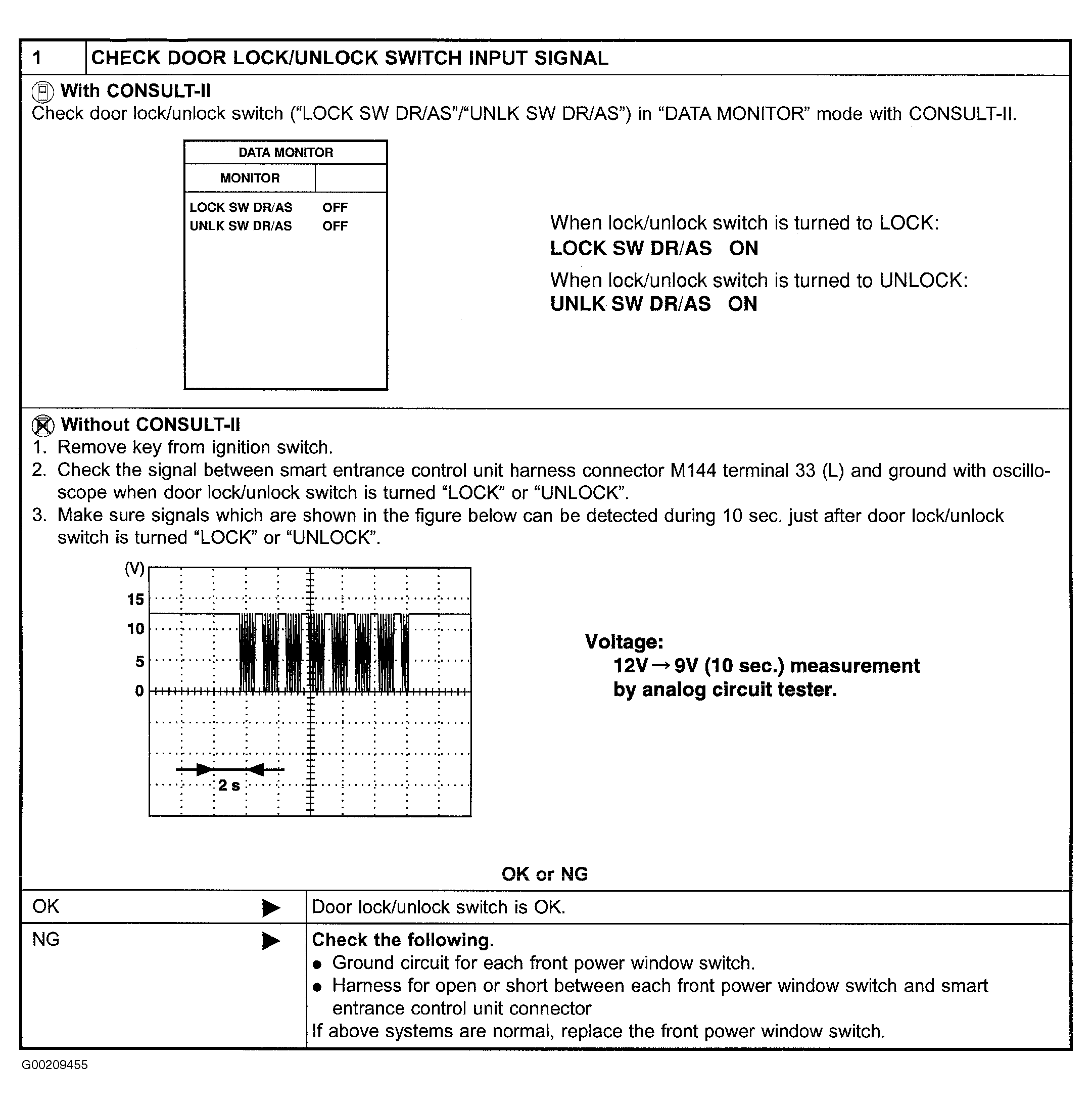

Fig 1: Identifying Left Door Lock/Unlock Switch Check
G00209455Courtesy of NISSAN MOTOR CO., U.S.A.
