Checking Fluid Level

Check fluid level, referring to the scale on reservoir tank.

Use "HOT" range for fluid temperatures of 50 to 80°C (122 to 176°F).

Use "COLD" range for fluid temperatures of 0 to 30°C (32 to 86°F).

CAUTION:
  • Do not overfill.
  • Recommended fluid is Genuine Nissan PSF II or equivalent.

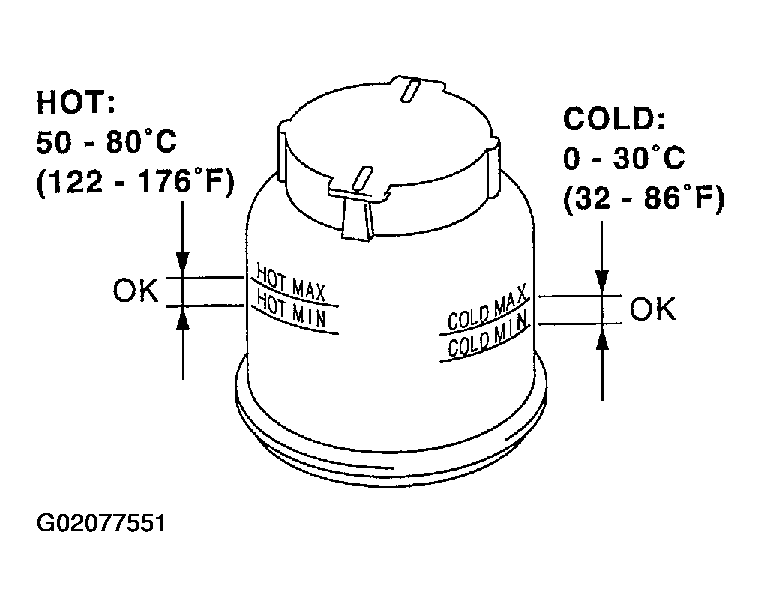

    Fig 1: Identifying Fluid Level In Reservoir Tank
    G02077551Courtesy of NISSAN MOTOR CO., U.S.A.
