Power Steering Oil Pump: Components

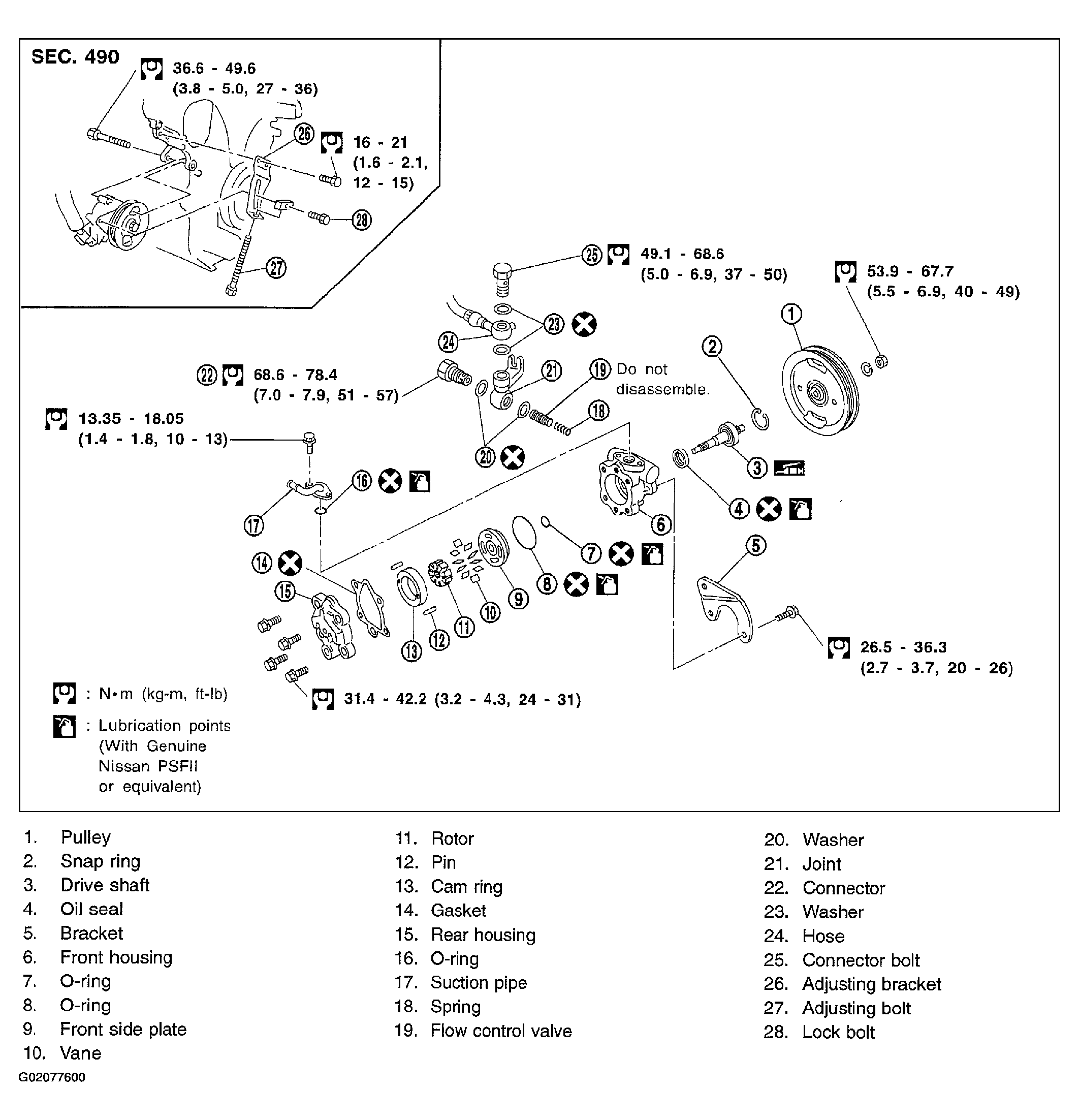

Fig 1: Exploded View Of Power Steering Oil Pump & Torque Specifications
G02077600Courtesy of NISSAN MOTOR CO., U.S.A.
