Adjusting Accelerator Wire

  1. Loosen lock nut.
  2. Tighten accelerator adjusting nut until throttle drum starts to move.
  3. From that position, turn back adjusting nut 1.5 to 2 turns, and secure lock nut.

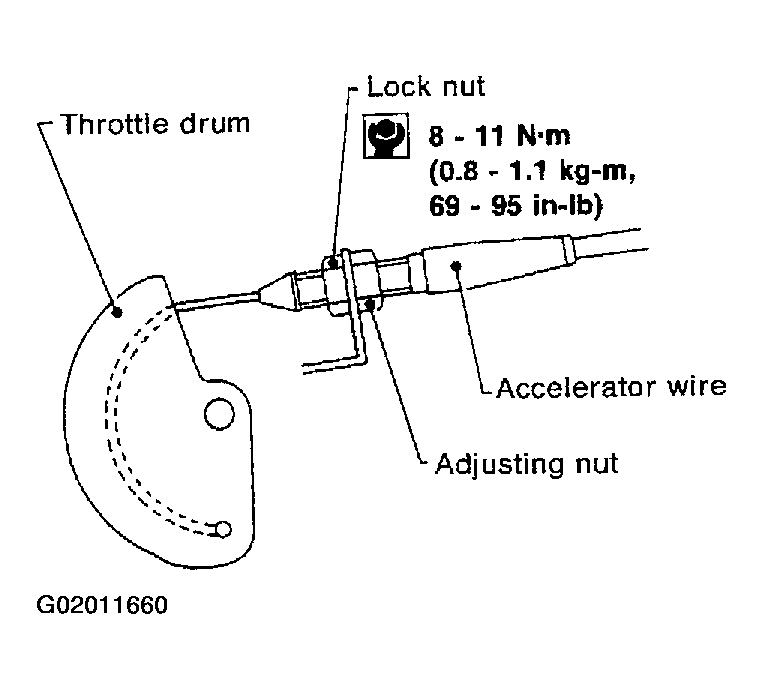

    Fig 1: Adjusting Accelerator Wire
    G02011660Courtesy of NISSAN MOTOR CO., U.S.A.
