Key Switch (Inserted) Test

NOTE: For wiring diagrams, see WIRING DIAGRAMS .

For key switch (inserted) test, see Fig 1 and Fig 2 .

Fig 1: Identifying Key Switch (Inserted) Test, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

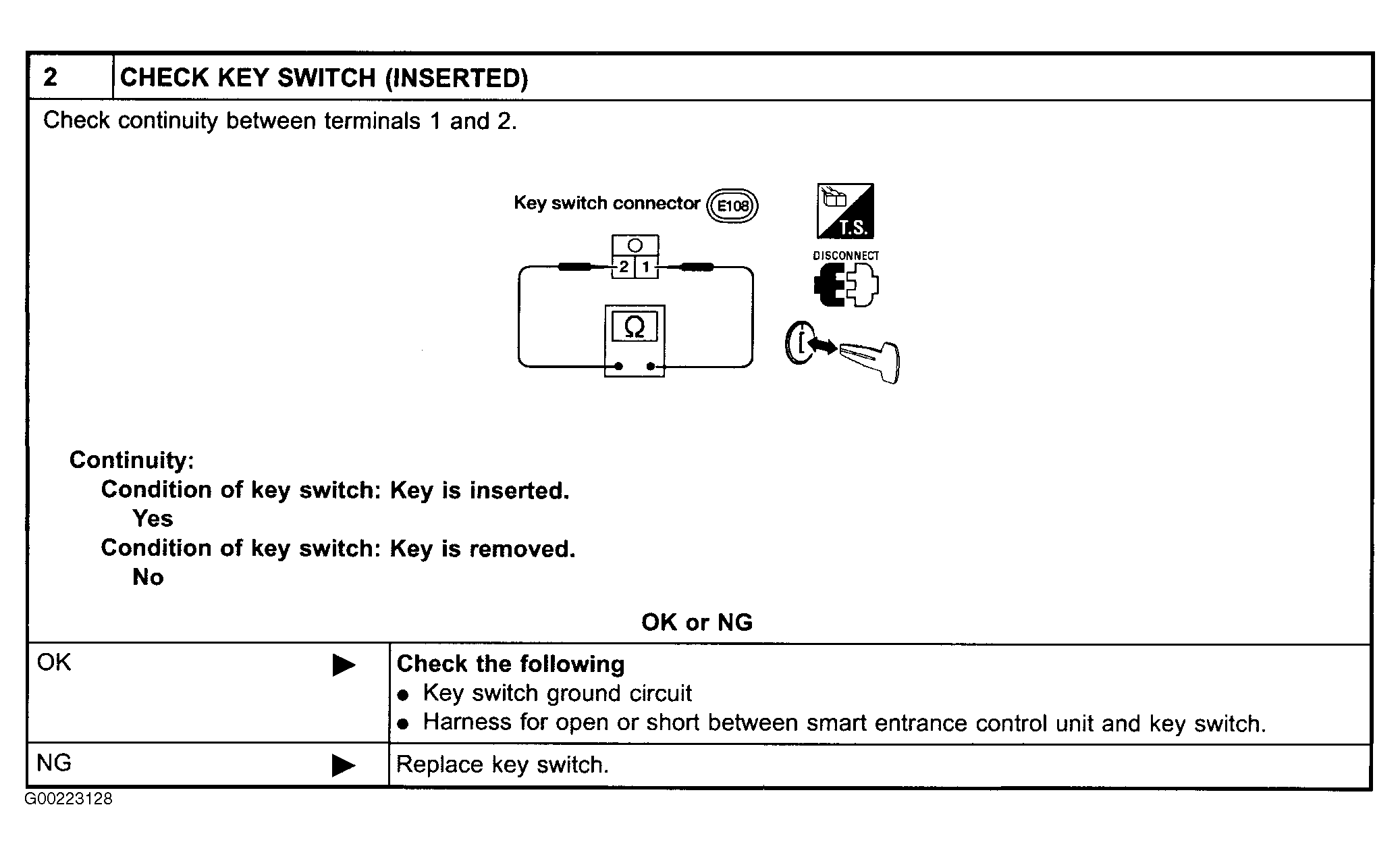

Fig 2: Identifying Key Switch (Inserted) Test, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.
