Home
>>
Nissan-Datsun
>>
2002
>>
Sentra SE-R L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
>>
Accelerator Pedal Position Sensor
>>
EC-APPS2
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
EC-APPS2

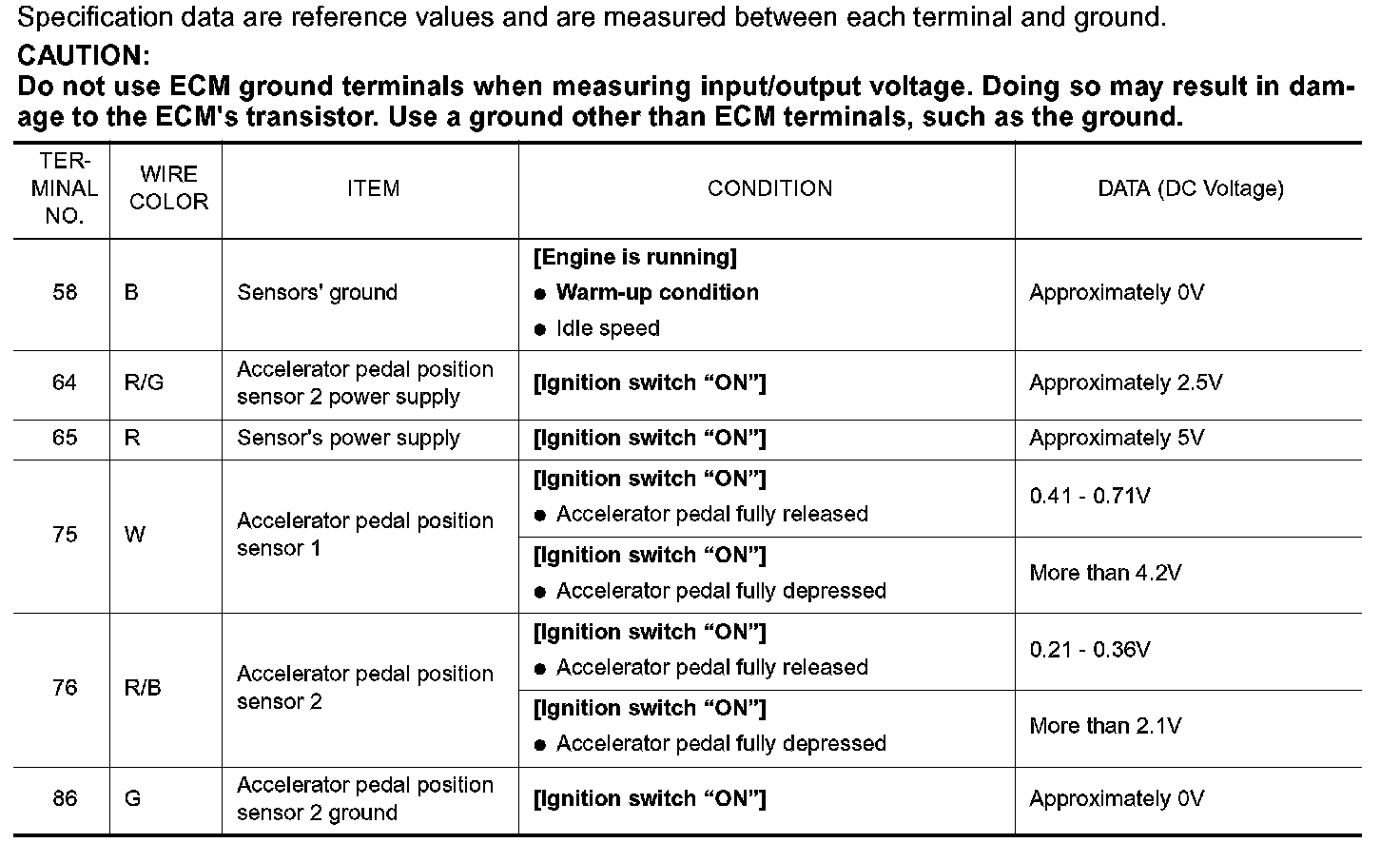

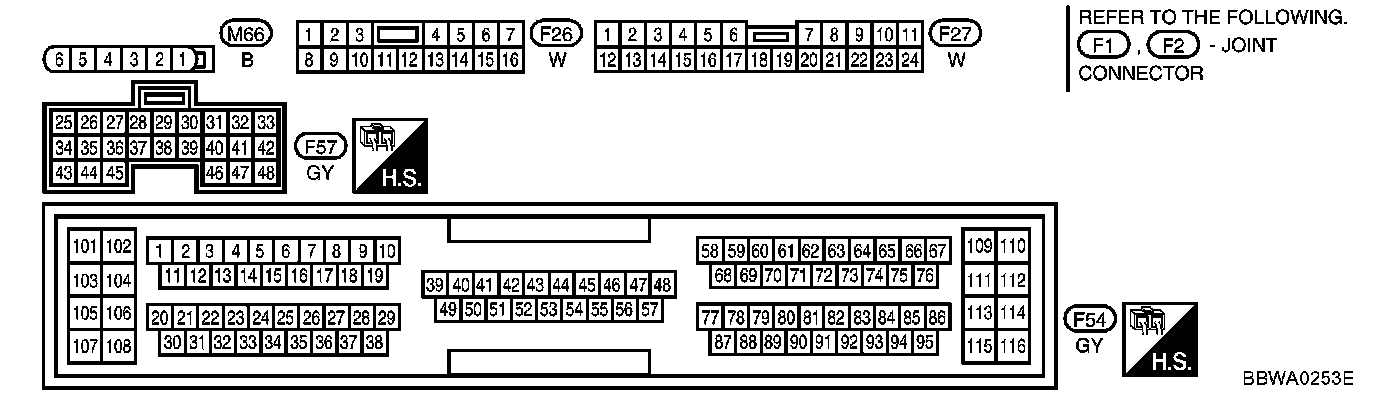

EC-APPS2-01 Connector Views:
