Fuel Level Sensor
>>
EC-FLS2
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
EC-FLS2

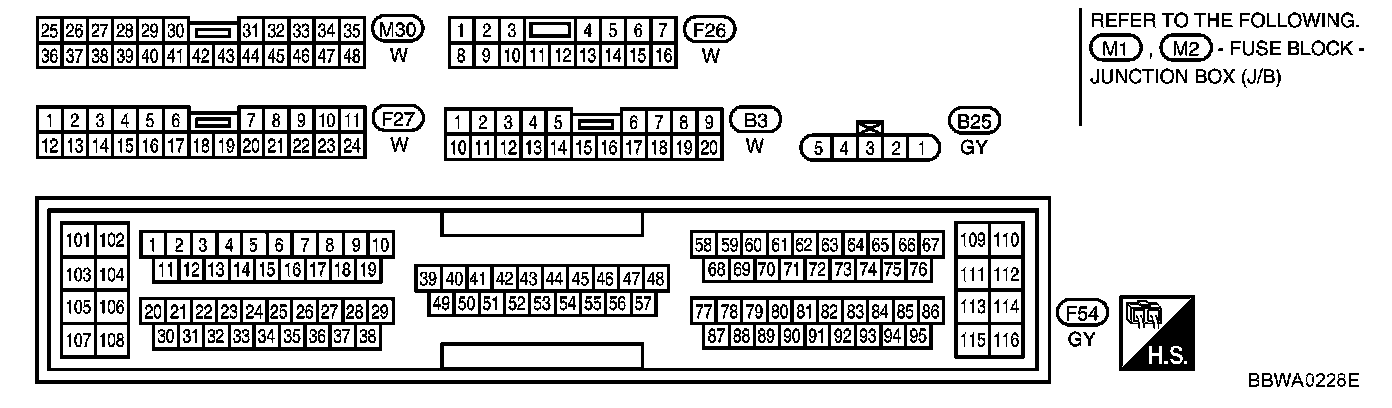

EC-FLS2-01 Connector Views:
