Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

Component Inspection

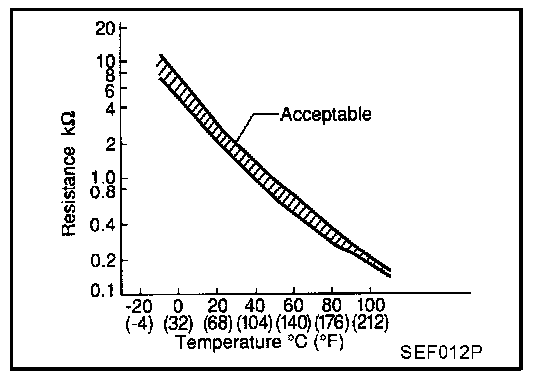

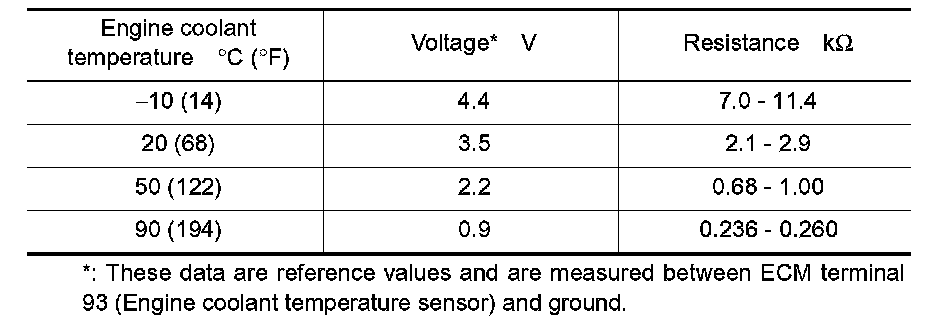

Reference Data:

ENGINE COOLANT TEMPERATURE SENSOR

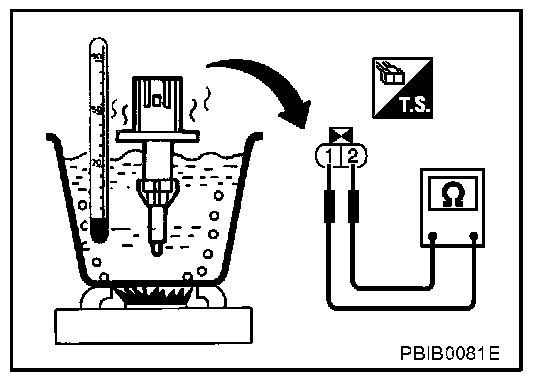

1. Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure.
2. If NG, replace engine coolant temperature sensor.
