Precautions For Harness Repair

CAN SYSTEM

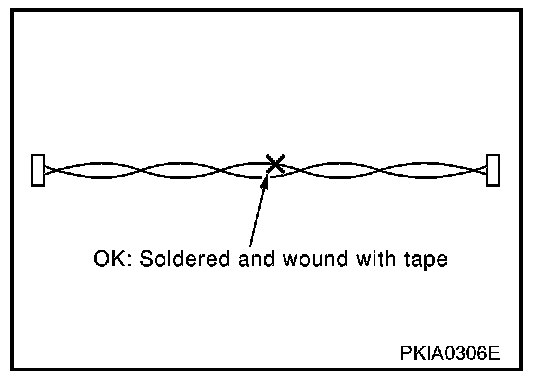

- Solder the repaired parts, and wrap with tape. [Frays of twisted line must be within 110 mm (4.33 in)]

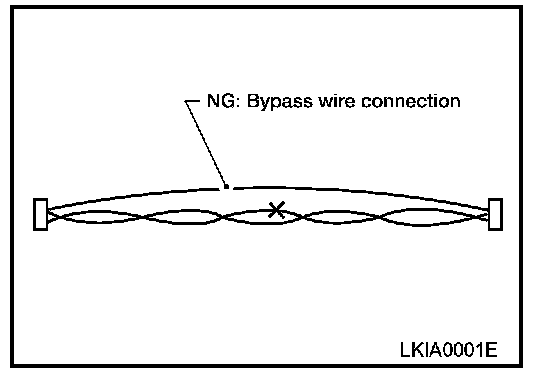

- Do not perform bypass wire connections for the repair parts. (The characteristics of twisted line will be lost.)
