Main Relay (Computer/Fuel System): Testing and Inspection

Component Inspection

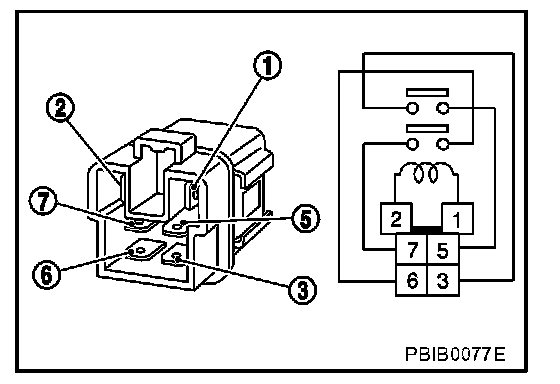

ECM RELAY
1. Apply 12V direct current between ECM relay terminals 1 and 2.

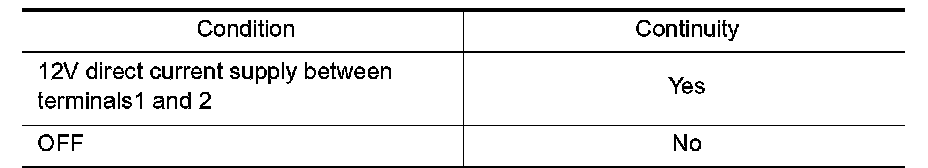

2. Check continuity between ECM relay terminals 3 and 5, 6 and 7.
3. If NG, replace ECM relay.
