Harness Connector Descriptions

Description

HARNESS CONNECTOR (TAB-LOCKING TYPE)
- The tab-locking type connectors help prevent accidental looseness or disconnection.

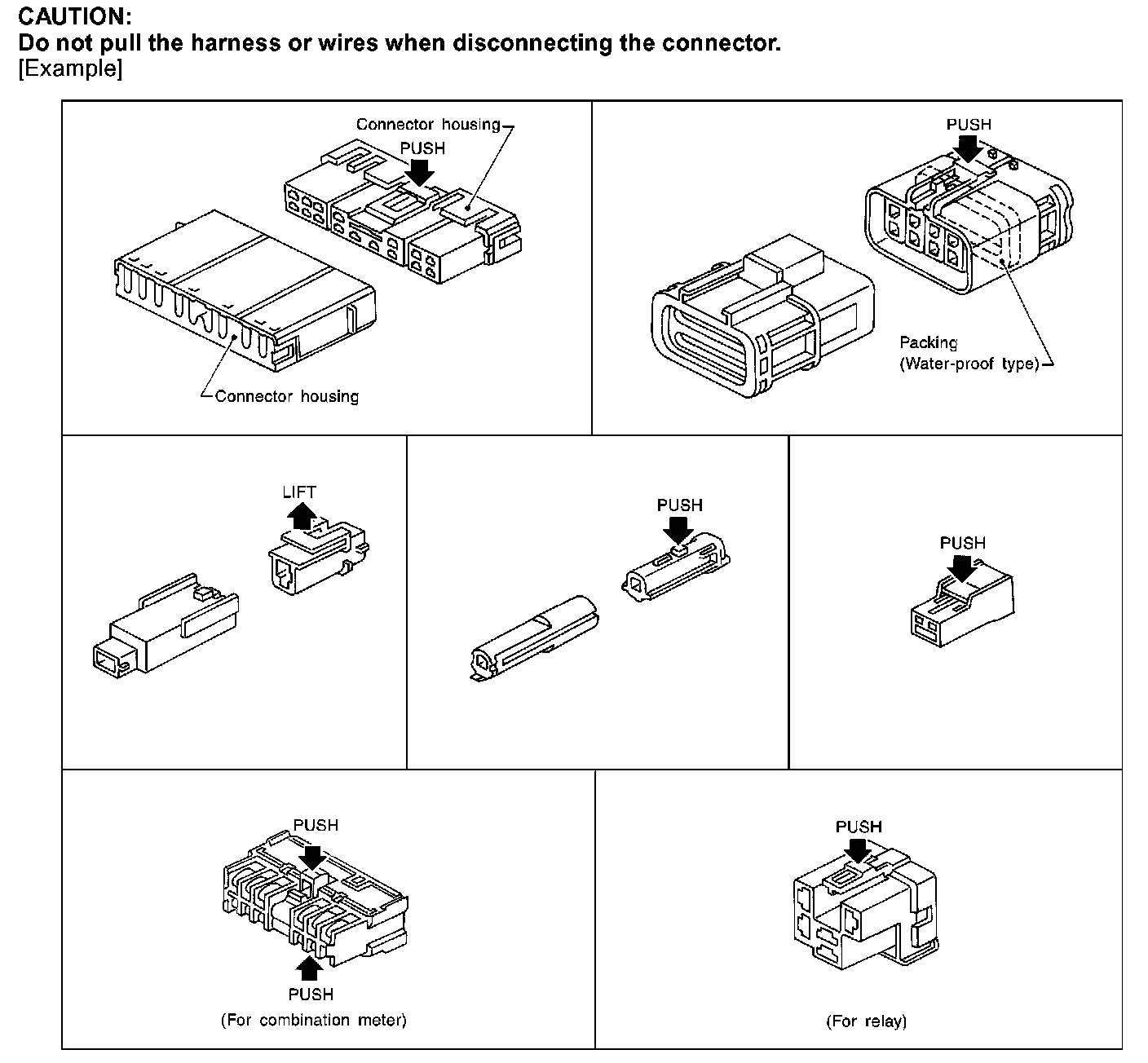

- The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the illustration.




HARNESS CONNECTOR (SLIDE-LOCKING TYPE)
- A new style slide-locking type connector is used on certain systems and components, especially those related to OBD.
- The slide-locking type connectors help prevent incomplete locking and accidental looseness or disconnection.

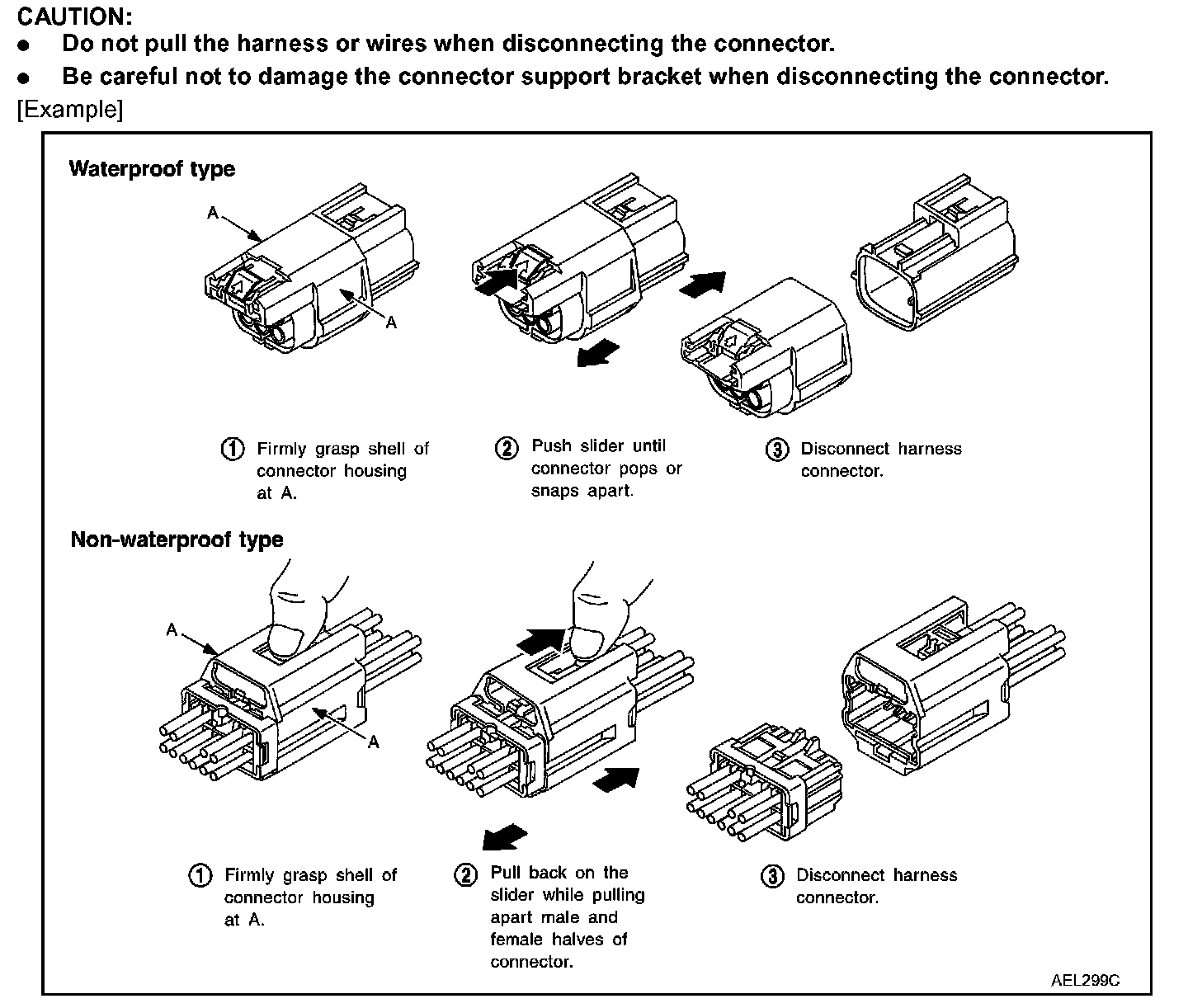

- The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the illustration.
