Condenser: Testing and Inspection

CONDENSER

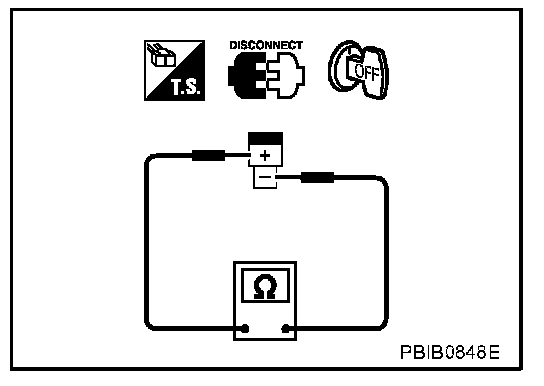

1. Turn ignition switch "OFF".
2. Disconnect condenser harness connector.




3. Check resistance between condenser terminals as + and -.
Resistance: Above 1 MOhm at 25 °C (77 °F)
