Connector Views

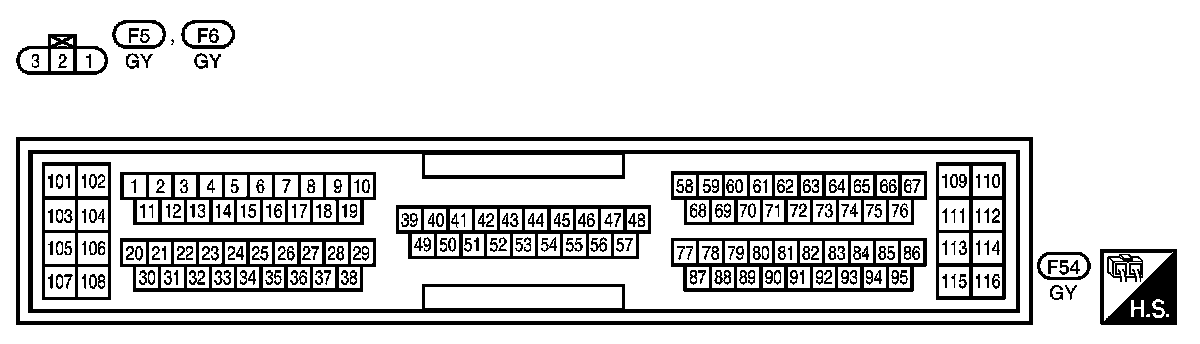

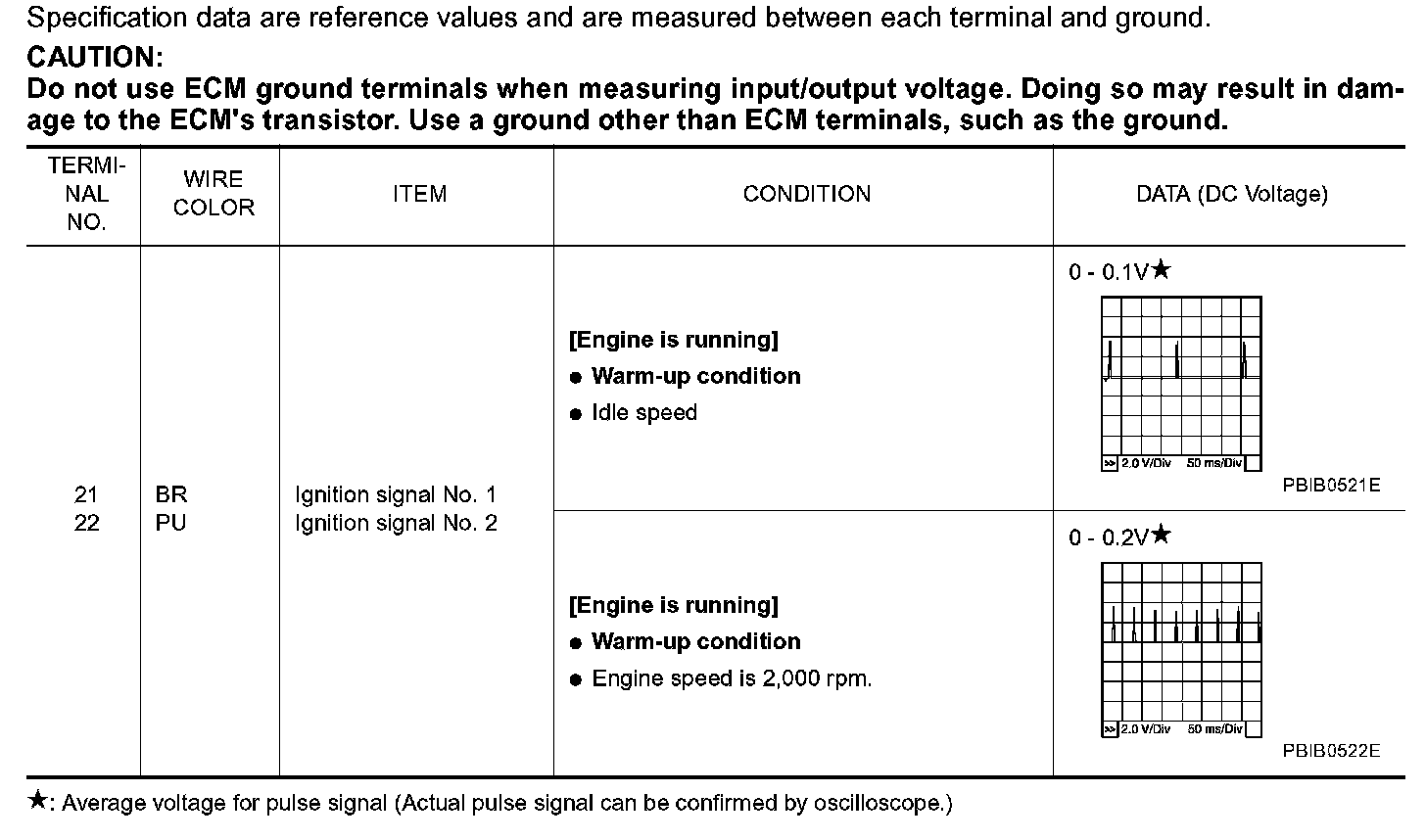

EC-IGNSYS-01 Connector Views:

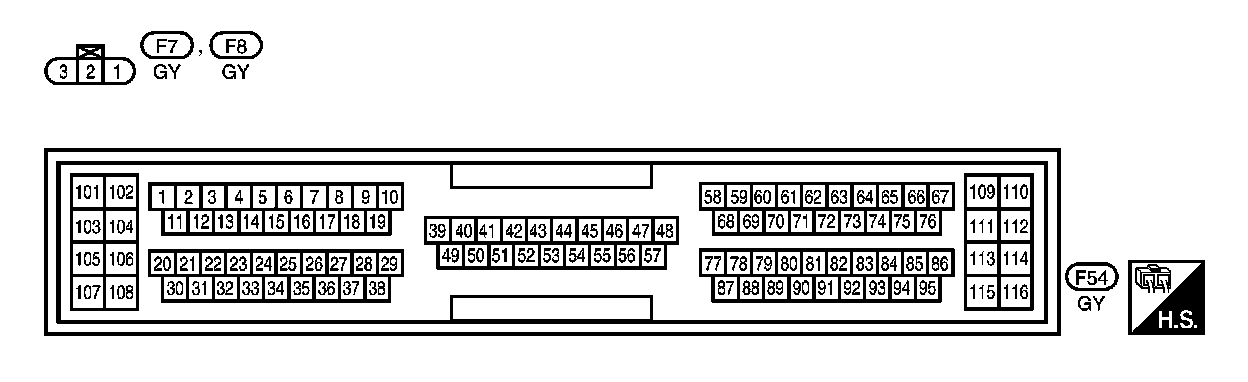

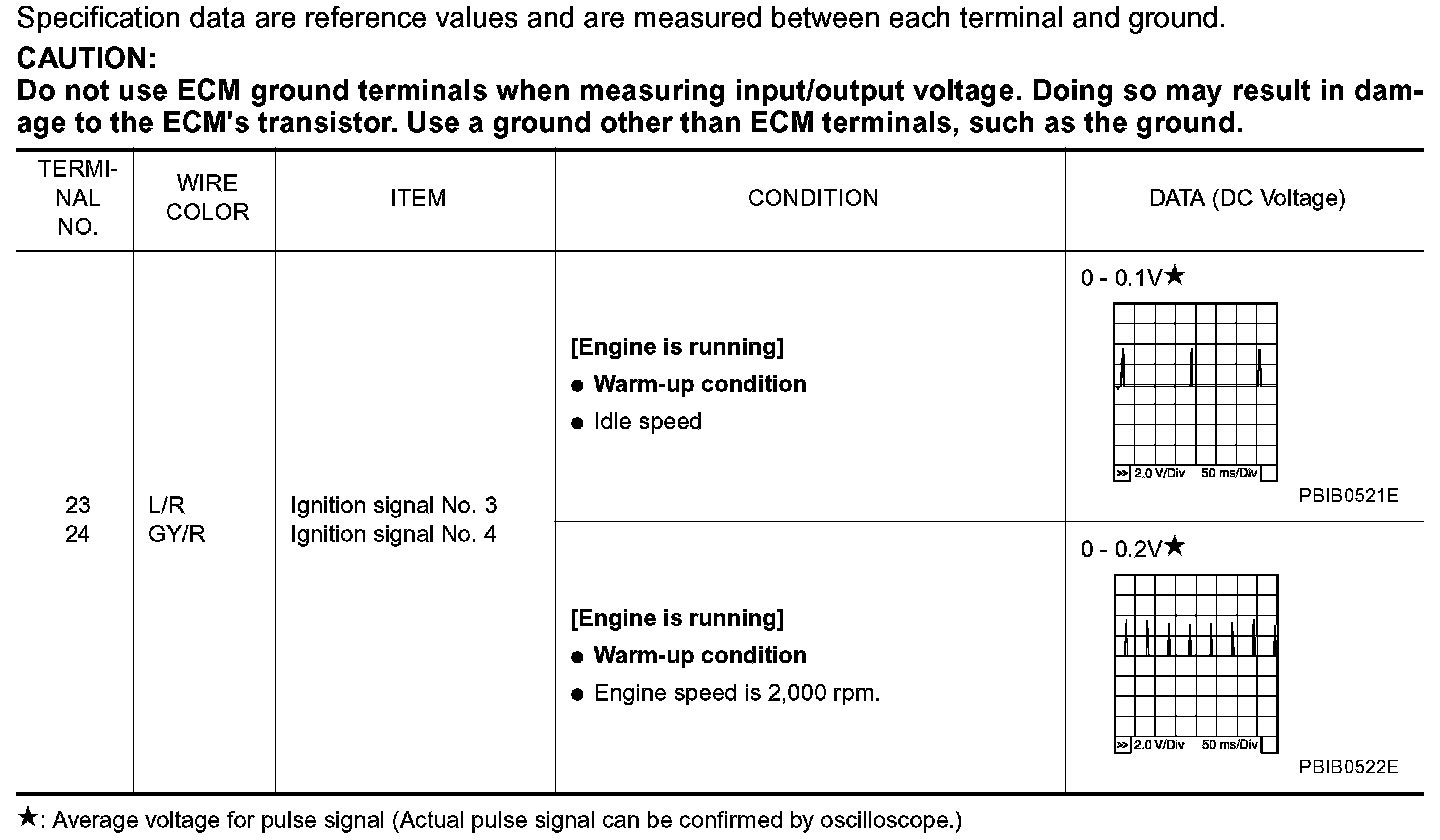

EC-IGNSYS-02 Connector Views:

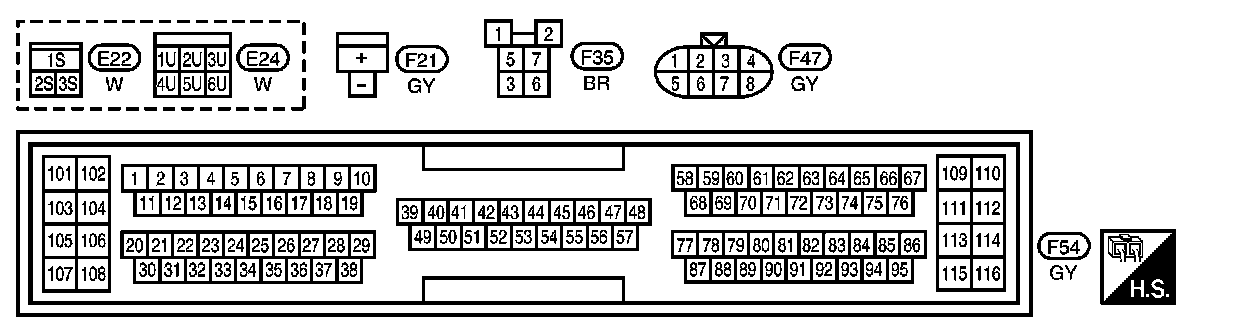

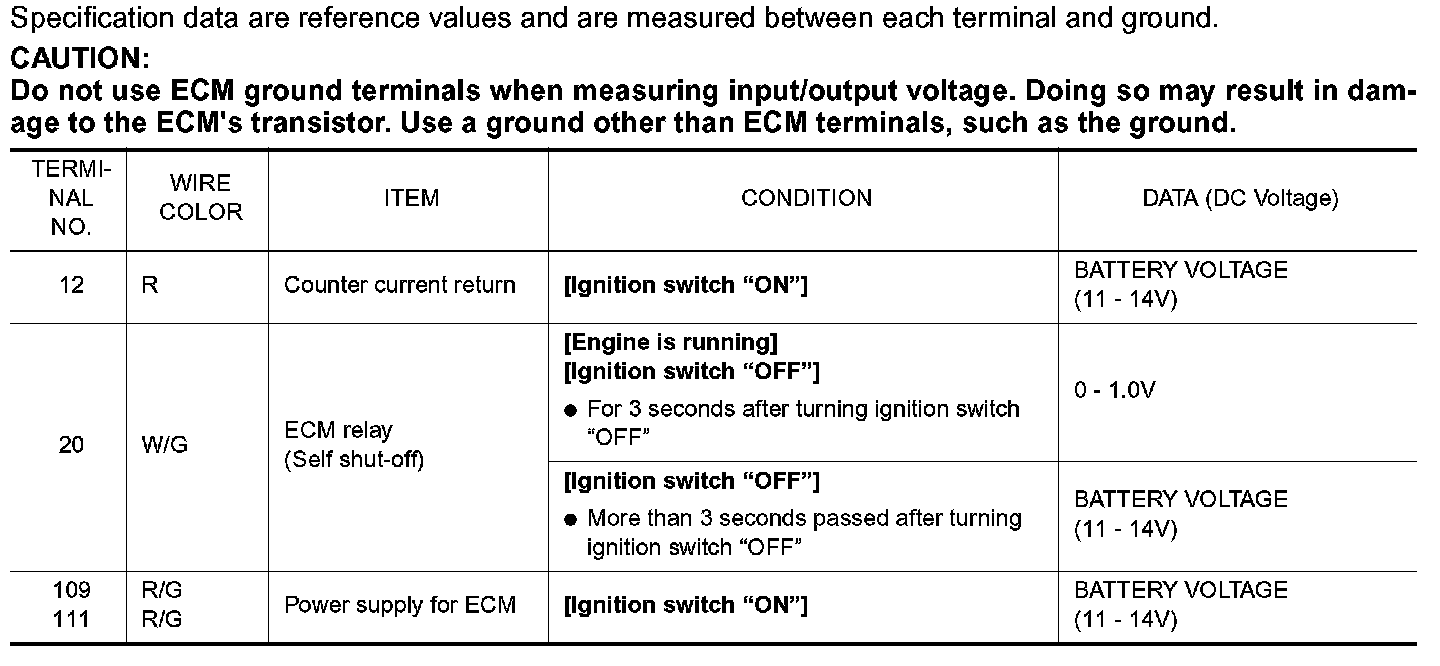

EC-IGNSYS-03 Connector Views:
