Ignition Timing: Adjustments

PREPARATION
1. Make sure that the following parts are in good order.
- Battery
- Ignition system
- Engine oil and coolant levels
- Fuses
- ECM harness connector
- Vacuum hoses
- Air intake system
(Oil filler cap, oil level gauge, etc.)
- Fuel pressure
- Engine compression
- Throttle valve
- Evaporative emission system
2. On air conditioner equipped models, checks should be carried out while the air conditioner is "OFF".
3. On automatic transmission equipped models, when checking idle rpm, ignition timing and mixture ratio, checks should be carried out while shift lever is in "N" position.
4. When measuring "CO" percentage, insert probe more than 40 cm (15.7 in) into tail pipe.
5. Turn off headlamps, heater blower, rear window defogger.
6. Keep front wheels pointed straight ahead.

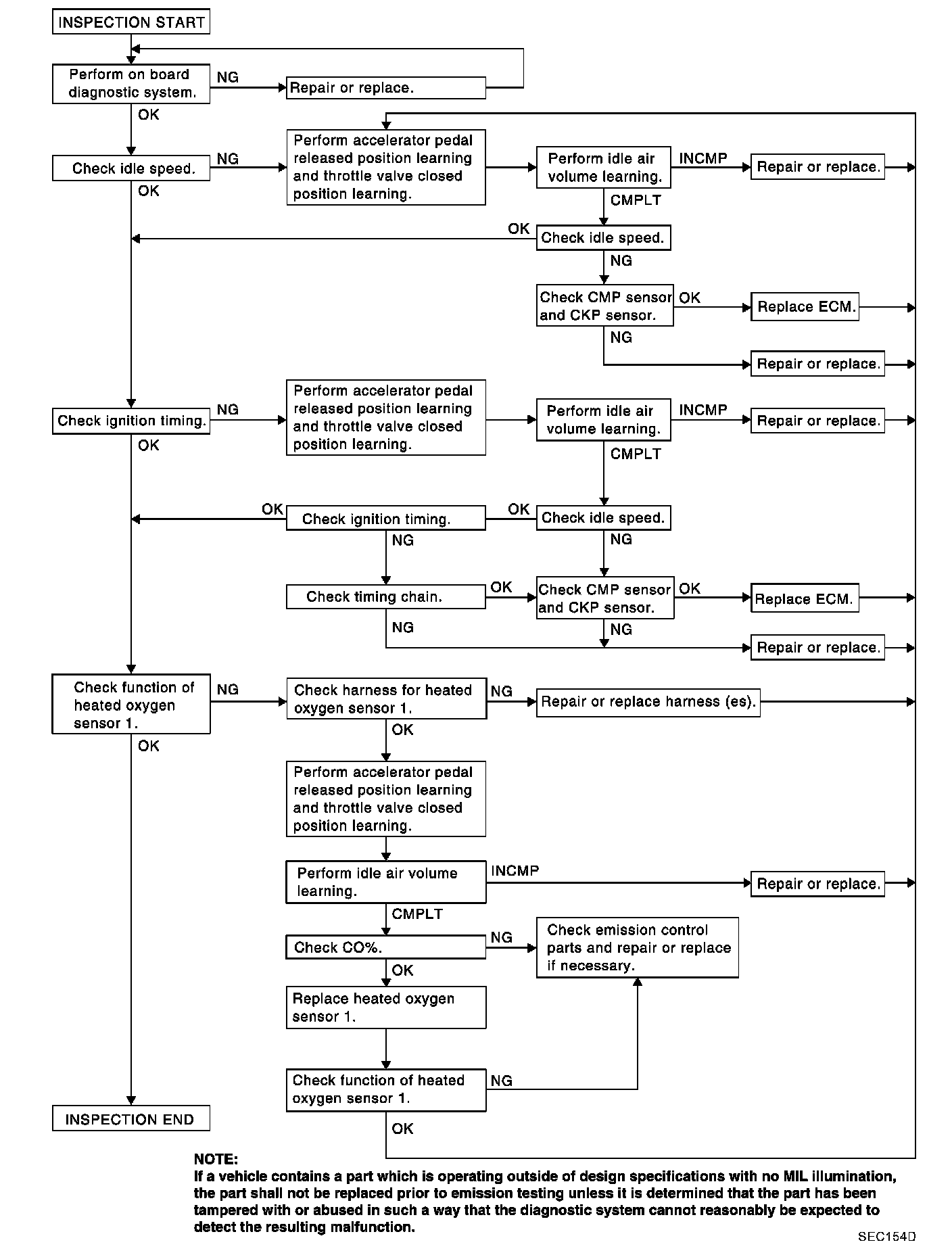

Overall Inspection Sequence:

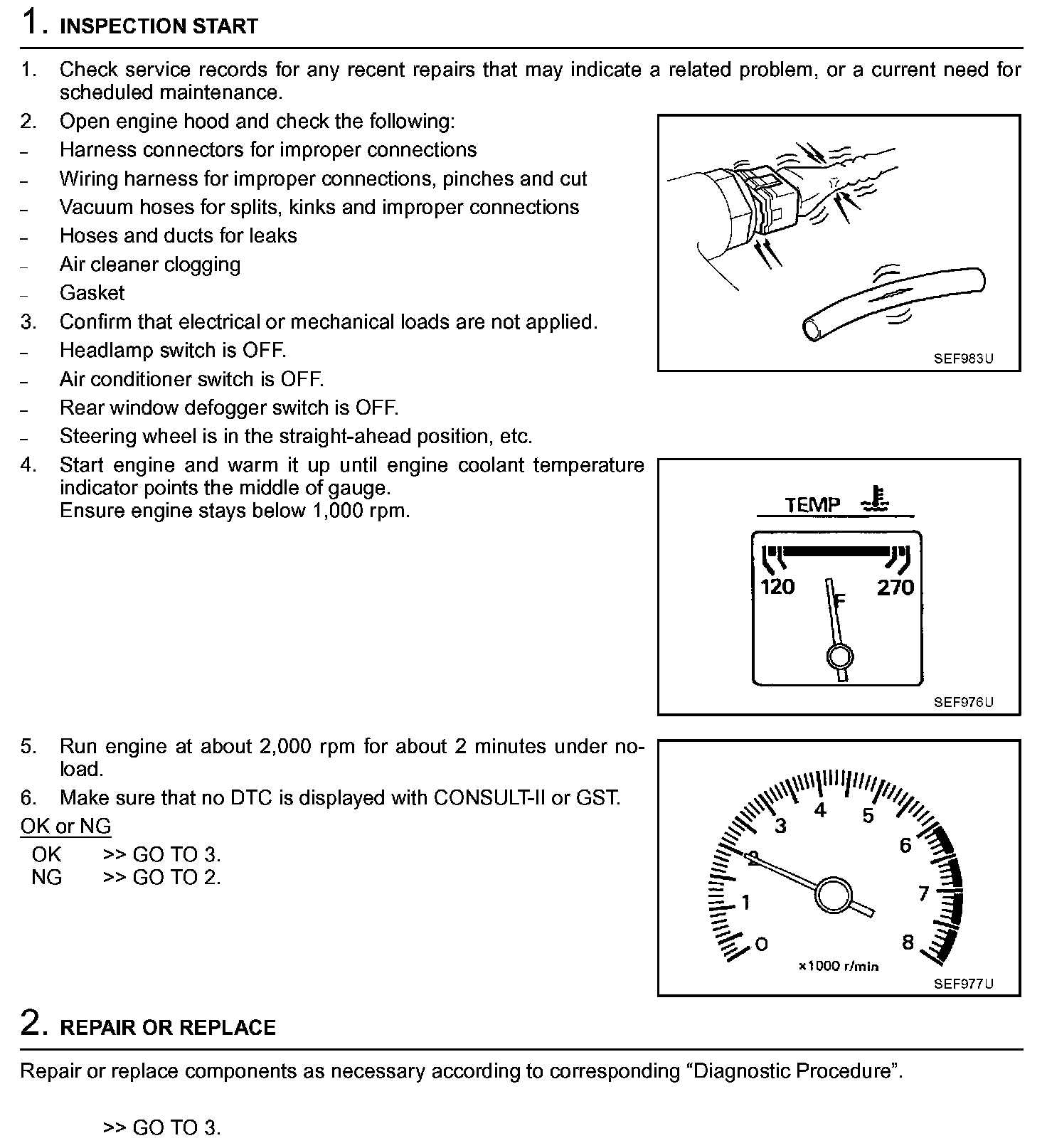

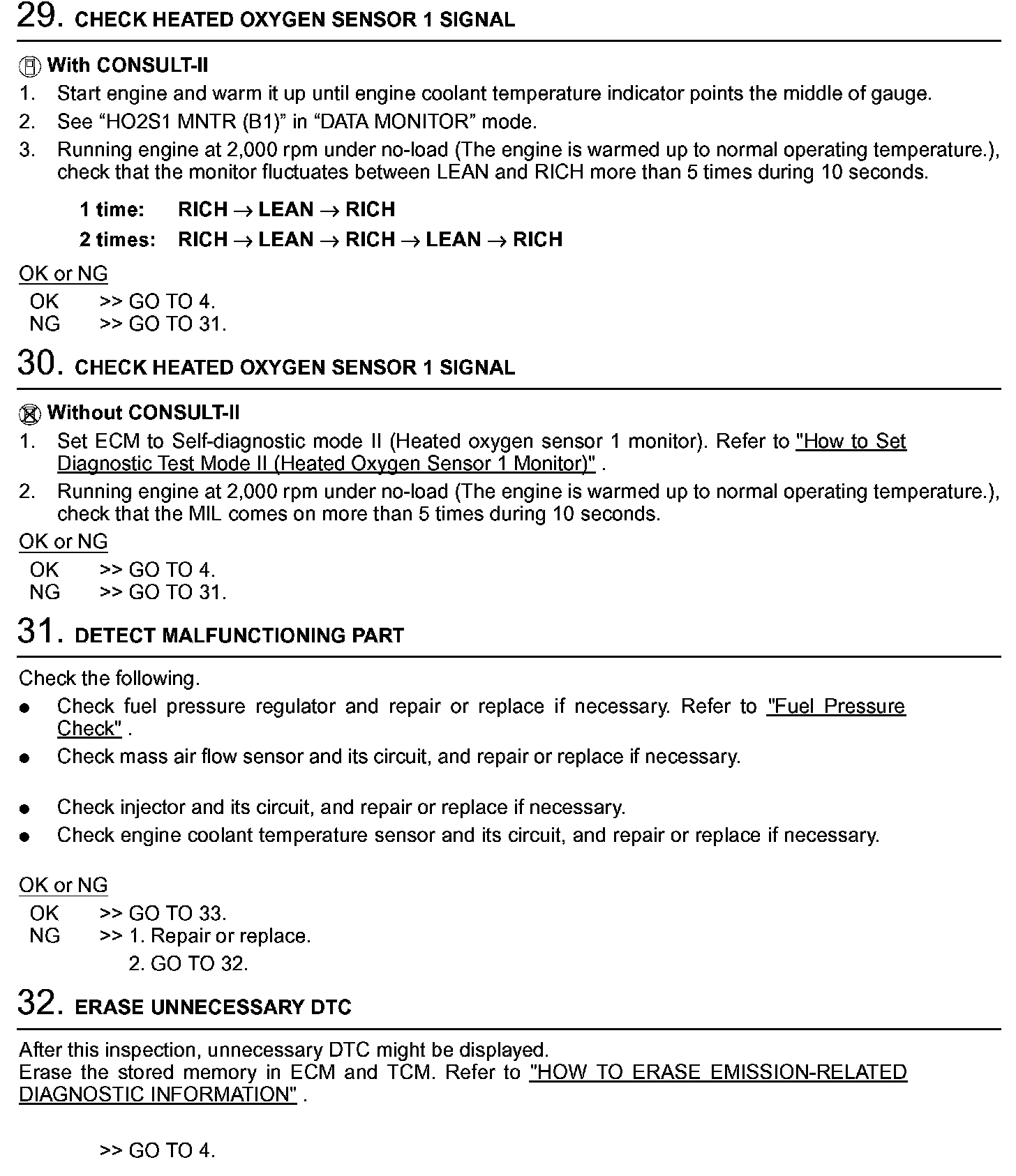

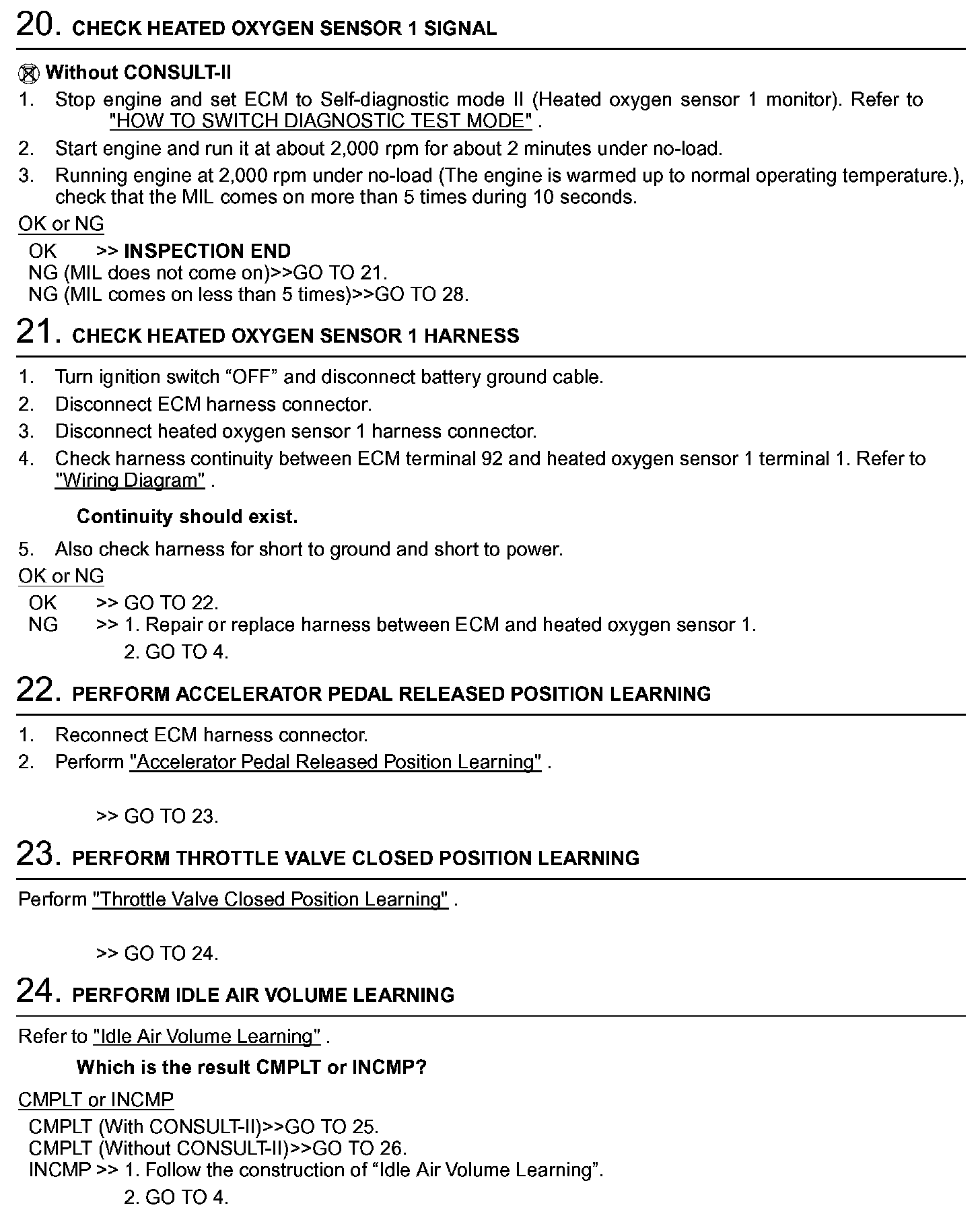

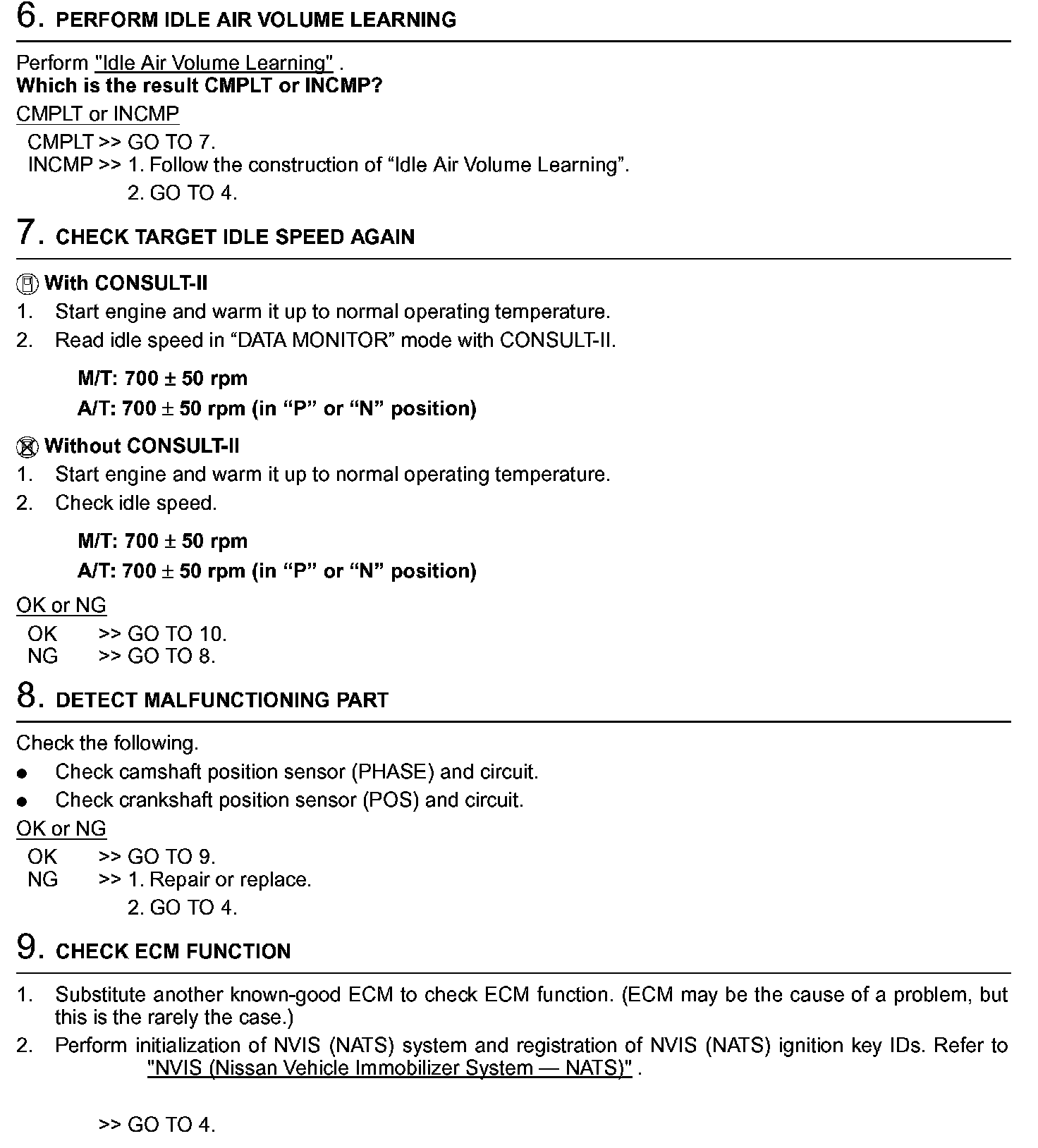

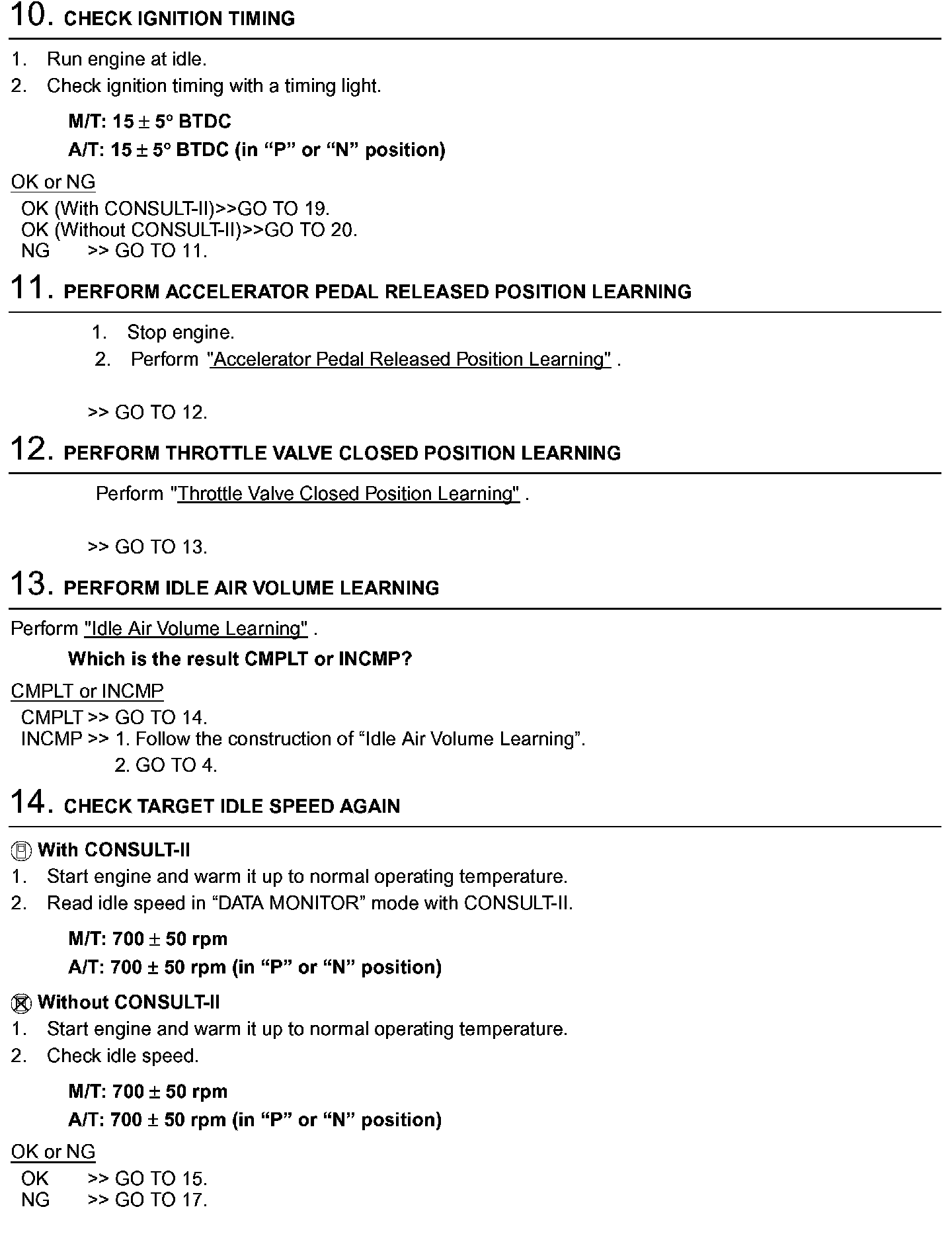

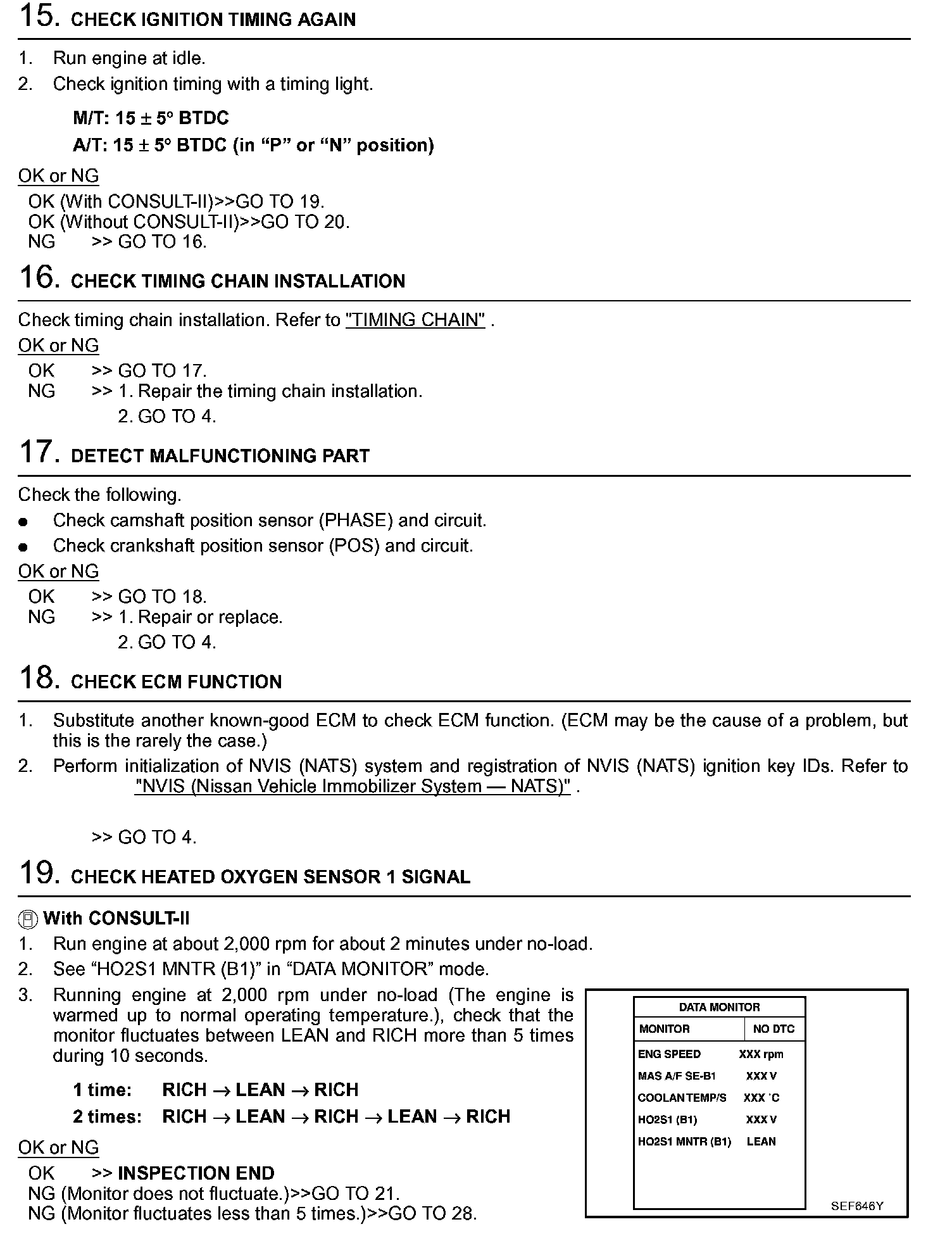

INSPECTION PROCEDURE

Step 1 - 2:

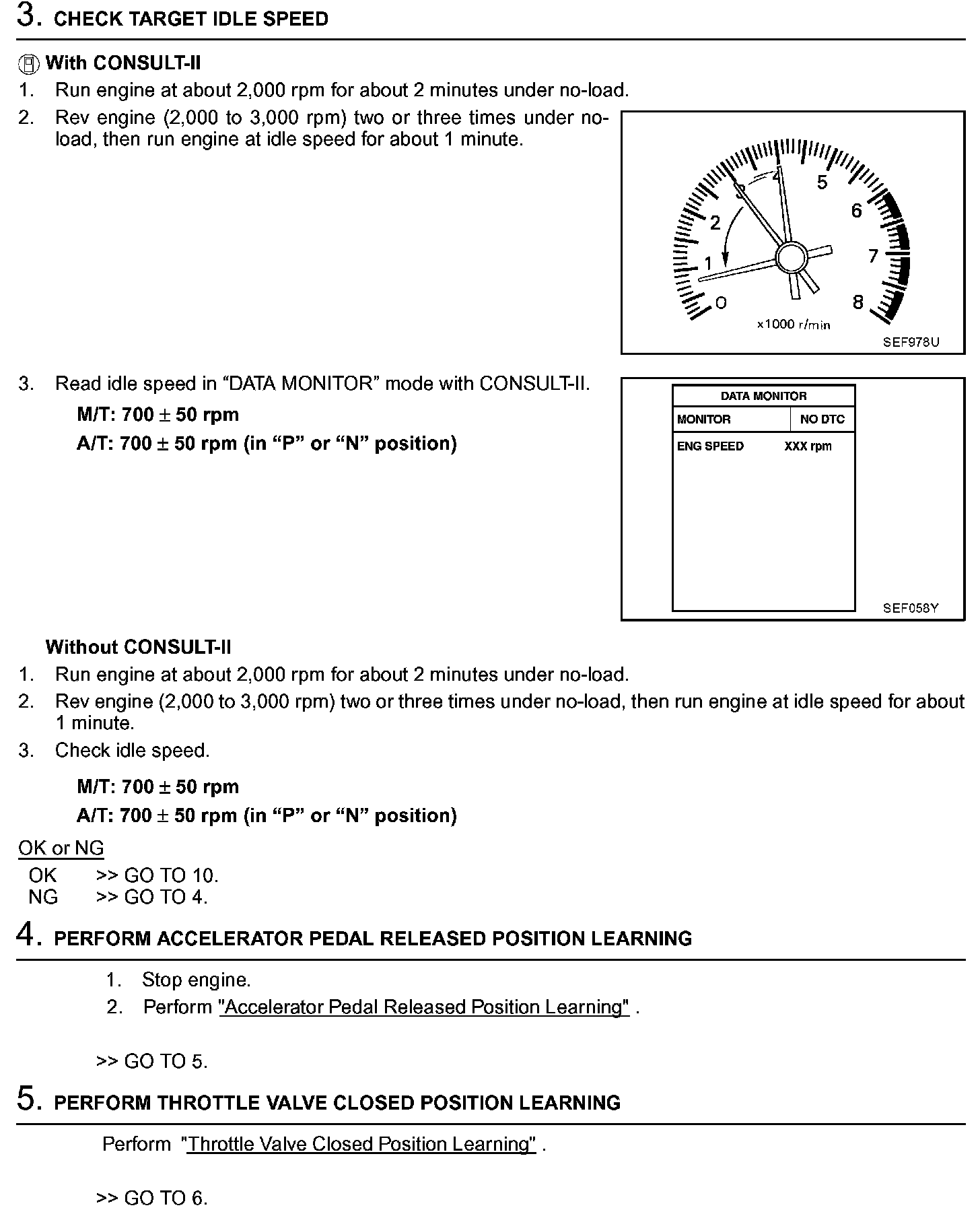

Step 3 - 5:

Step 6 - 9:

Step 10 - 14:

Step 15 - 19:

Step 20 - 24:

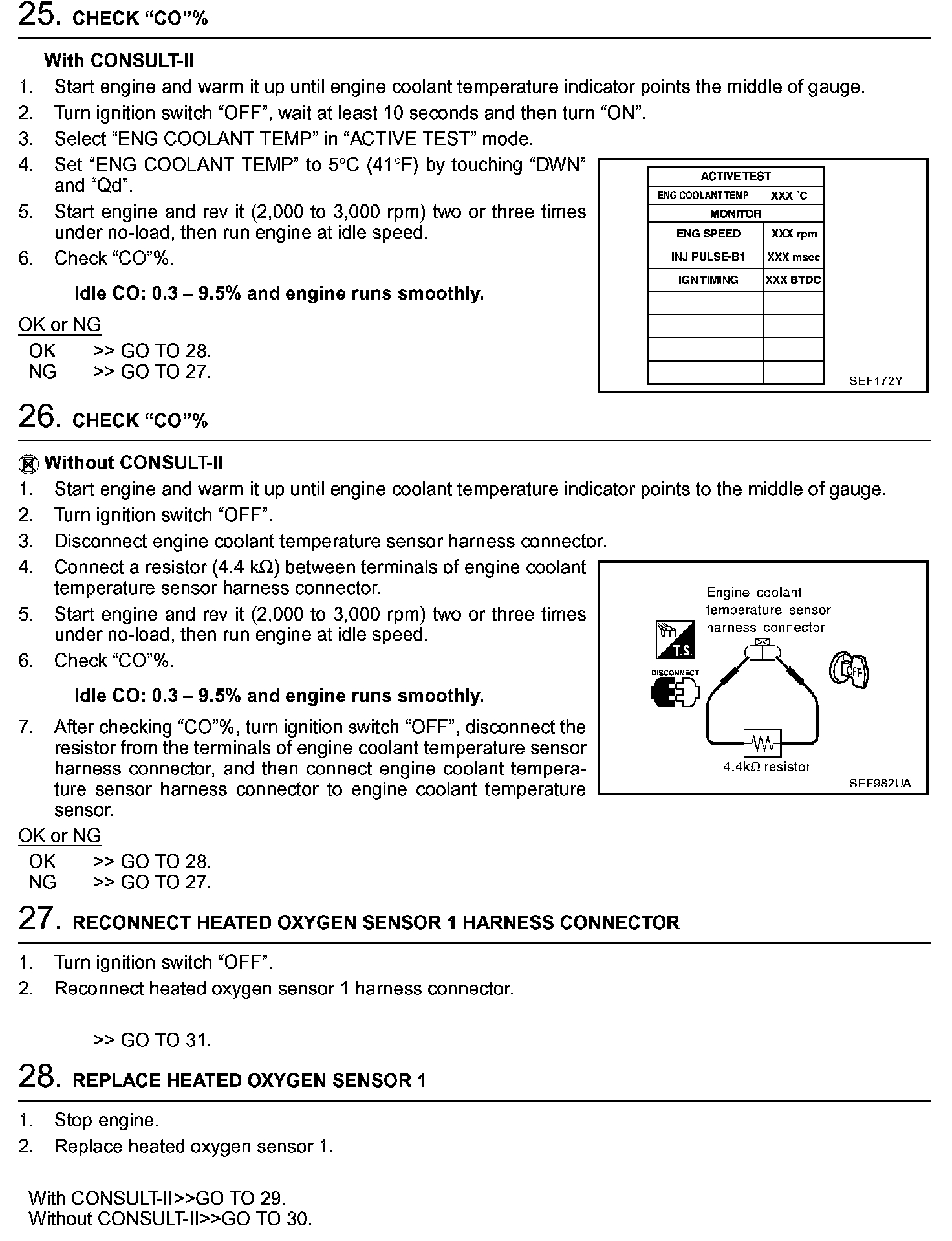

Step 25 - 28:

Step 29 - 32:

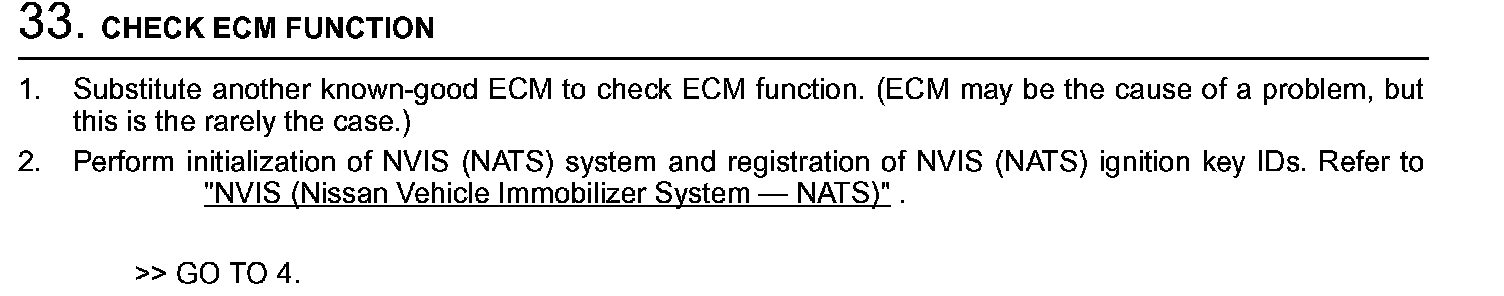

Step 33:
