Ignition Timing: Testing and Inspection

Any of following two methods may be used.

Method A

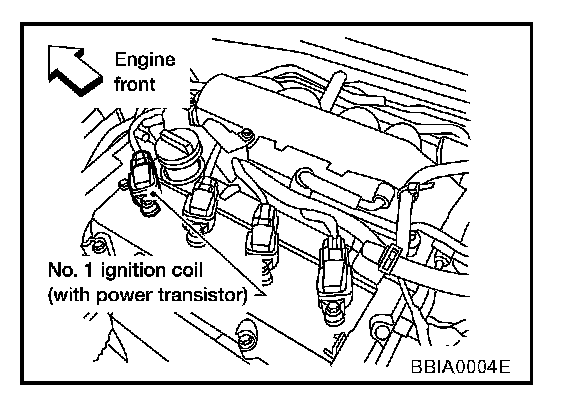

1. Slide the harness protector of ignition coil No. 1 to clear the wires.

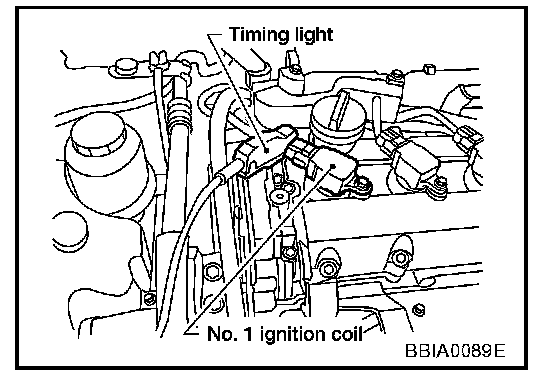

2. Attach timing light to the wires as shown in the figure.

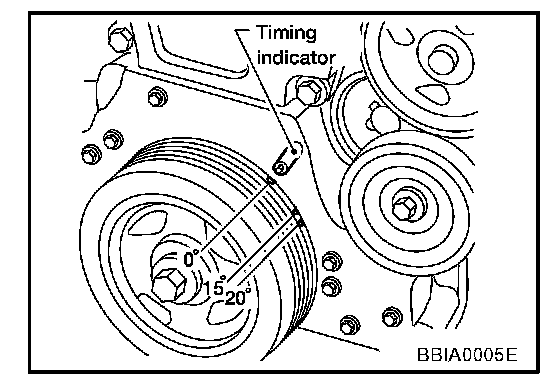

3. Check ignition timing.

Method B




1. Remove No. 1 ignition coil.

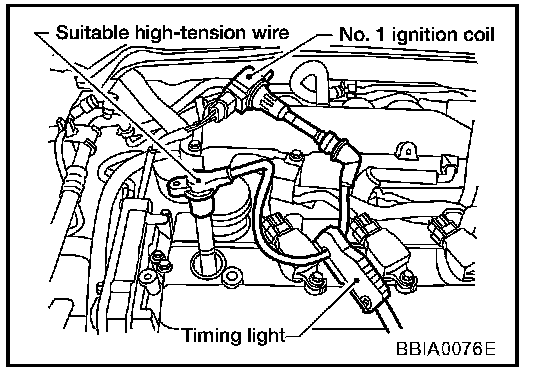

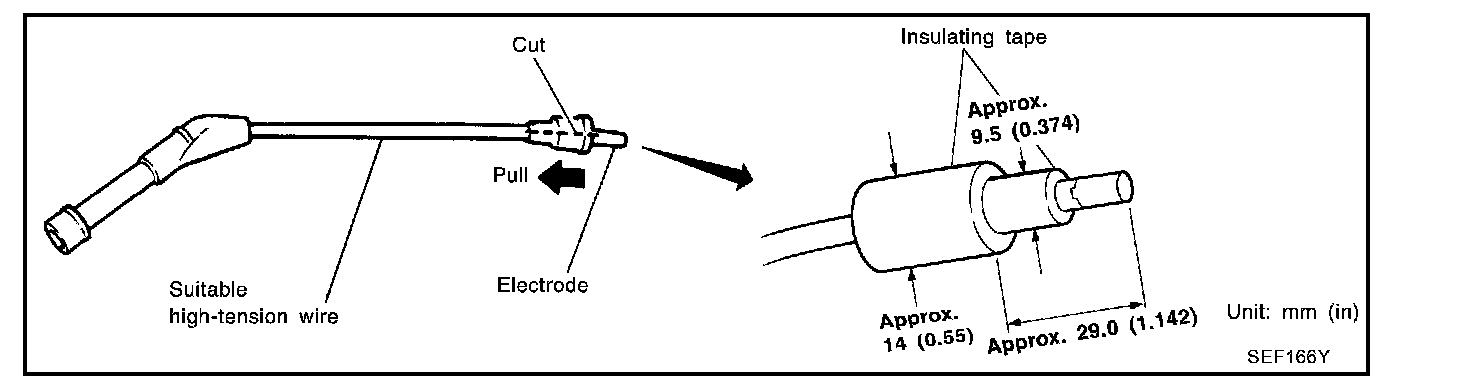

2. Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.




3. Check ignition timing.


For procedures on how to adjust the timing, Adjustments
