Body Control Module: Description and Operation

Description (Without Power Door Locks)

OUTLINE
The time control unit totally controls the following body electrical system operations.
- Warning chime
- Rear window defogger

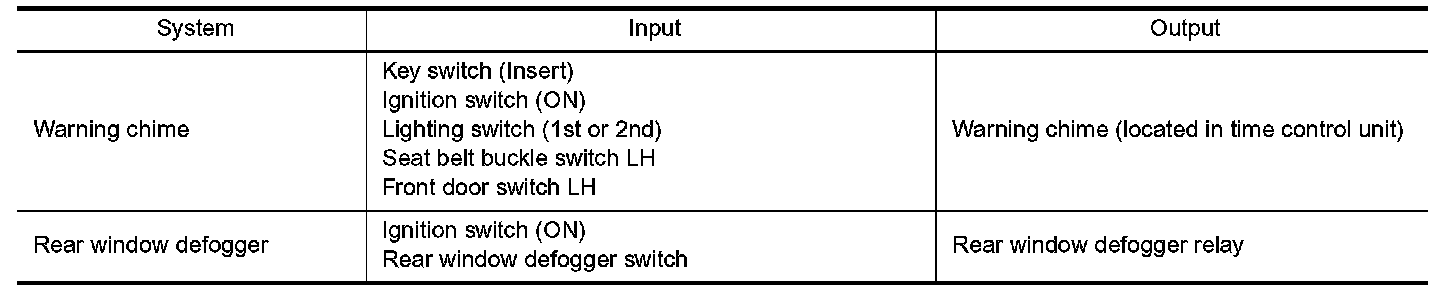

Input/Output:
