Symptom Chart

Symptom Chart

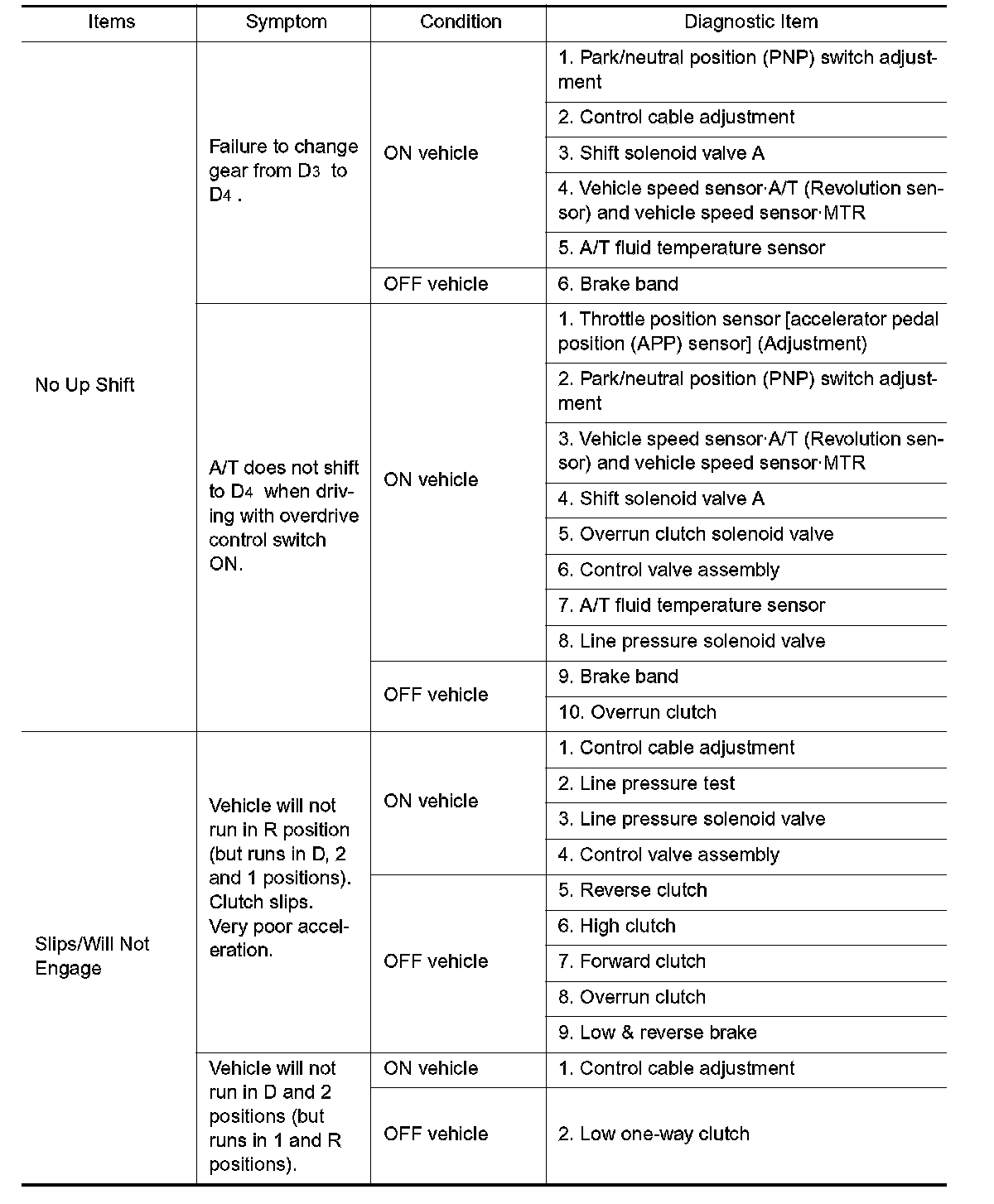

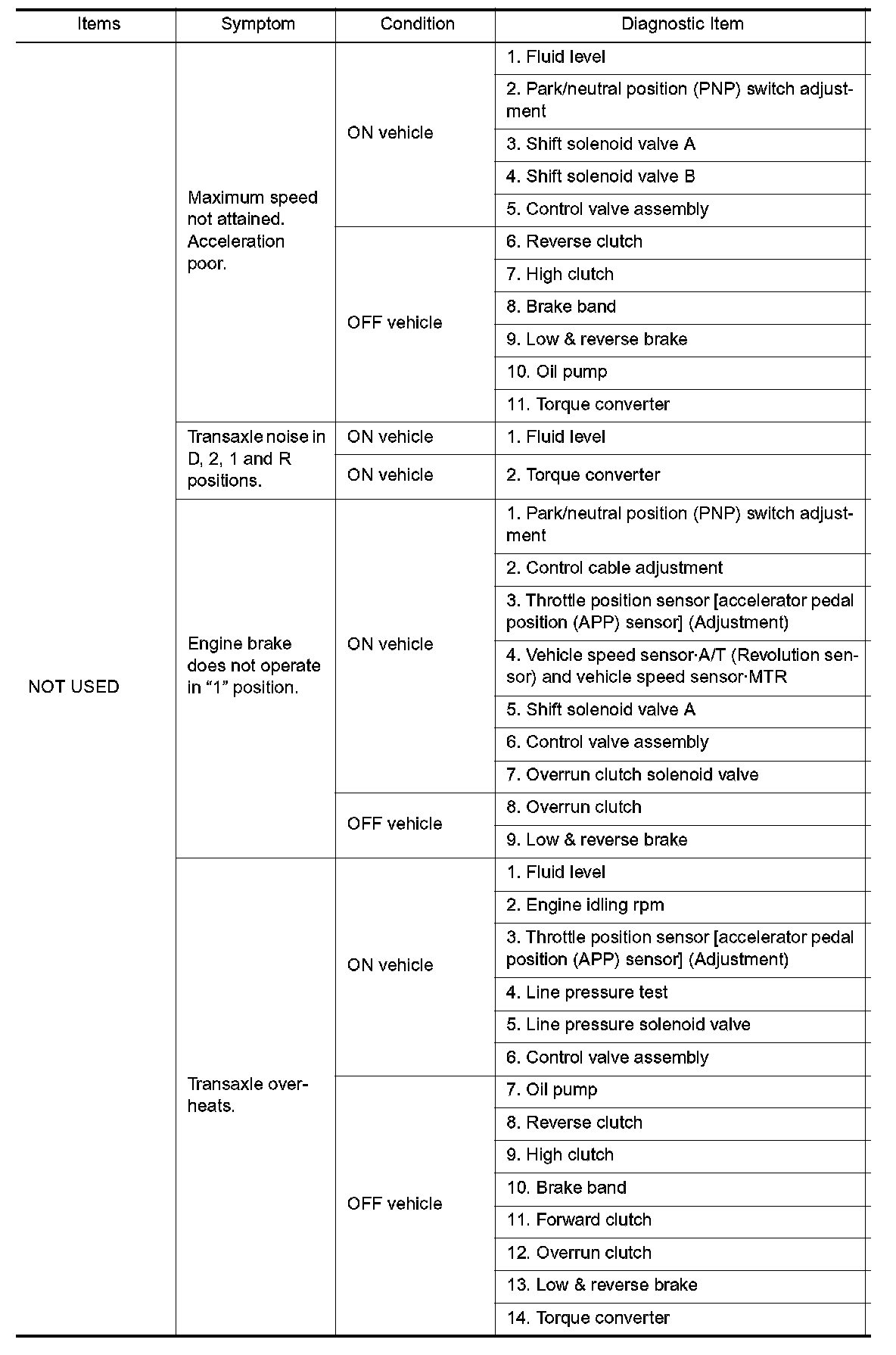

1 of 11

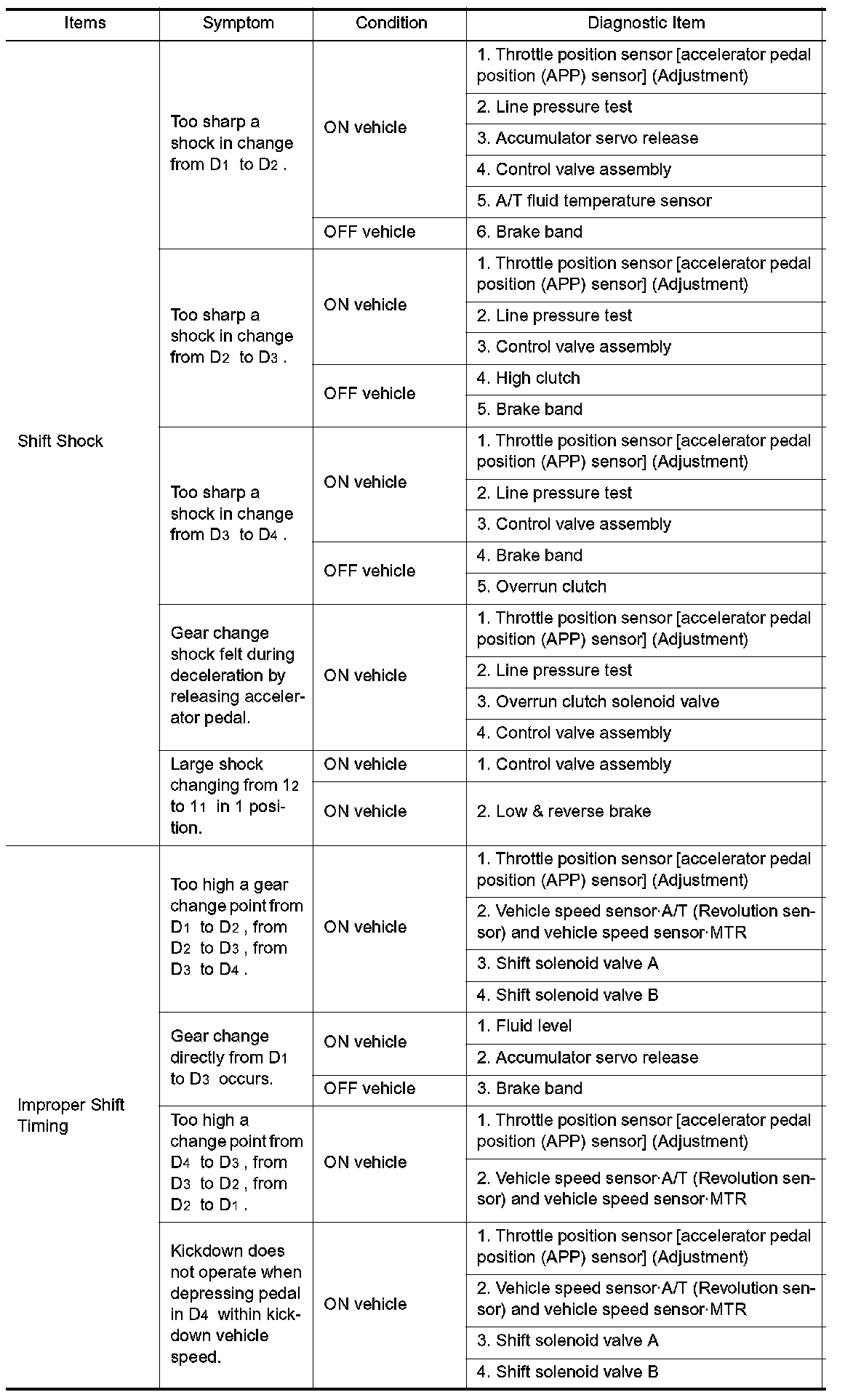

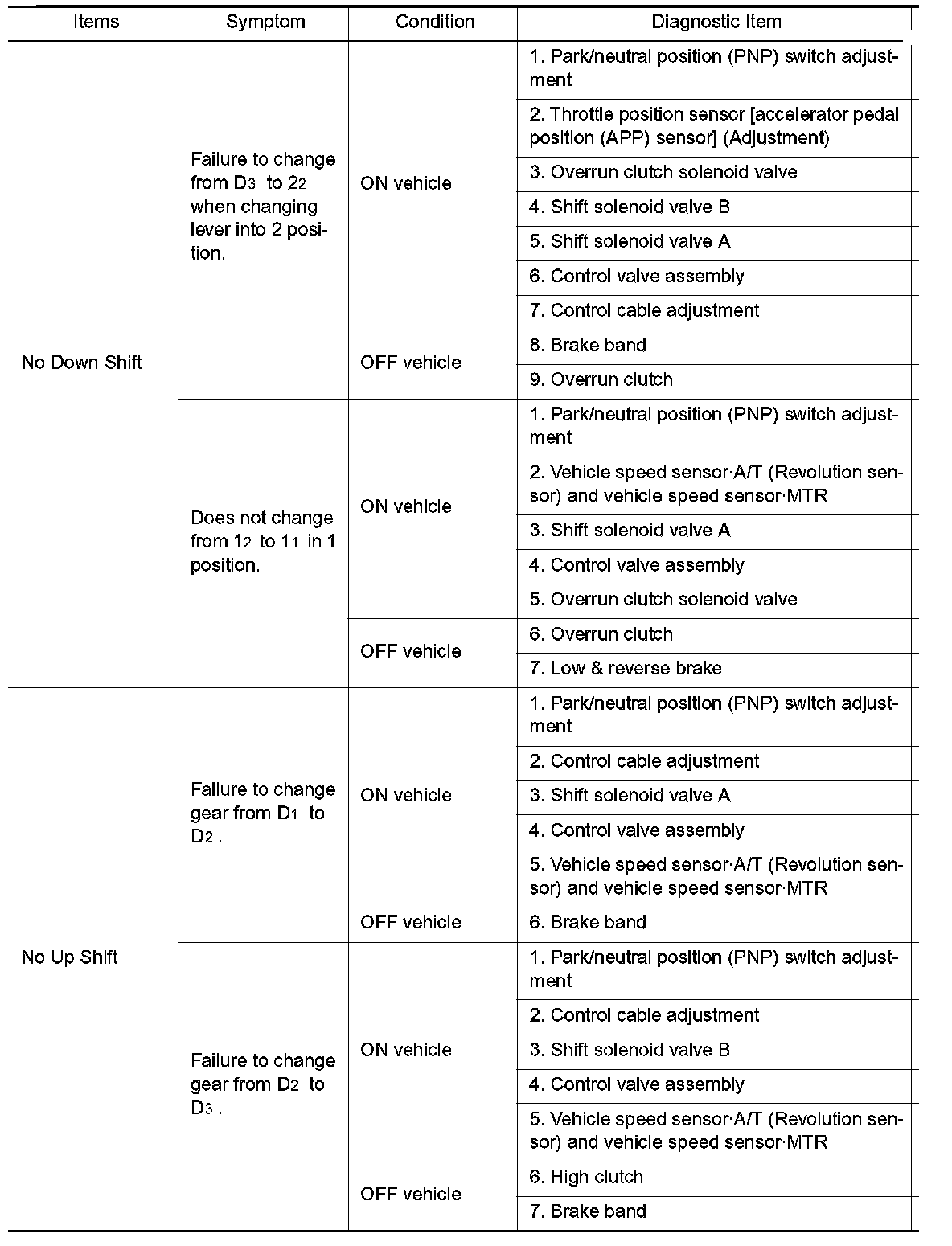

2 of 11

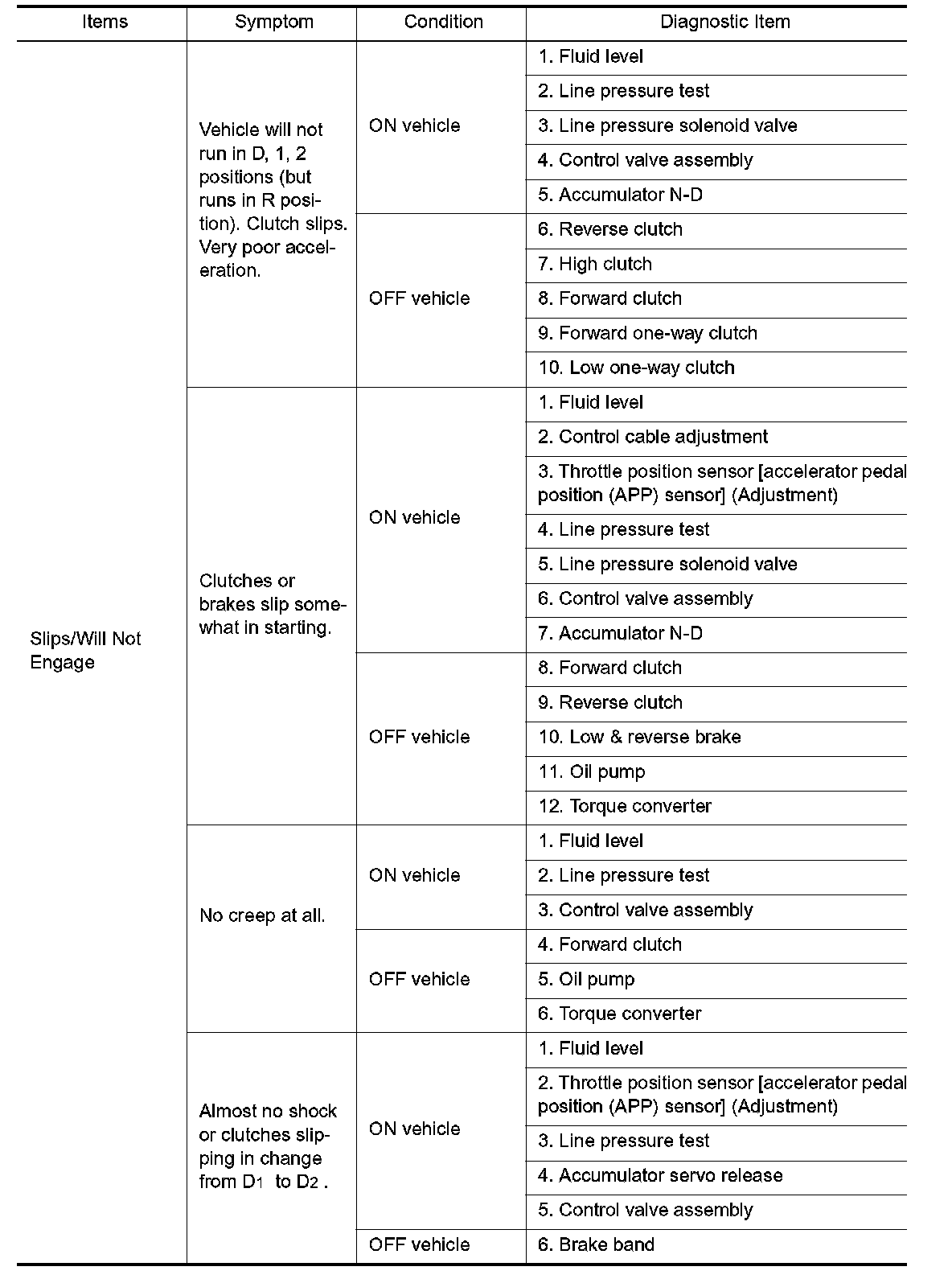

3 of 11

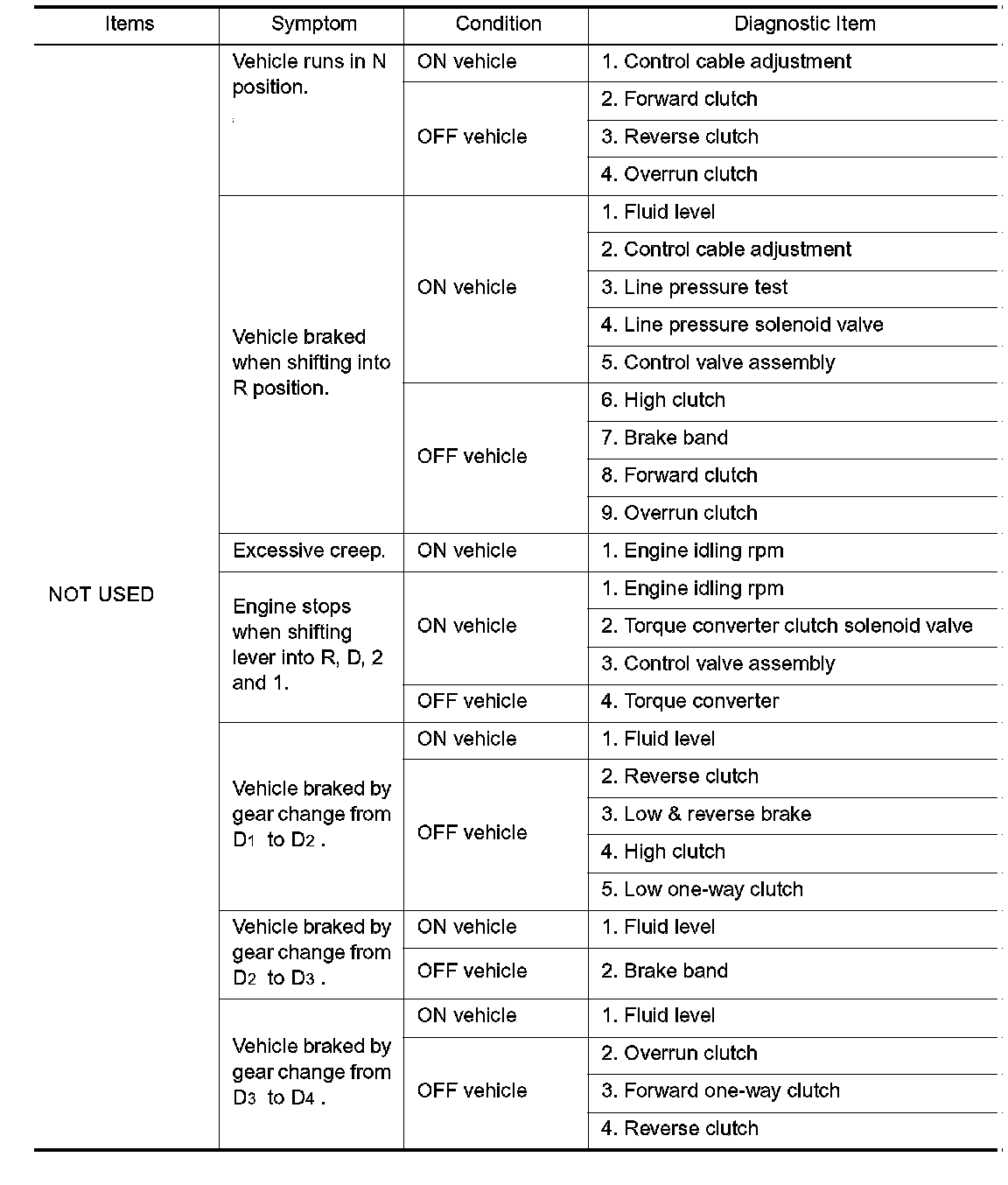

4 of 11

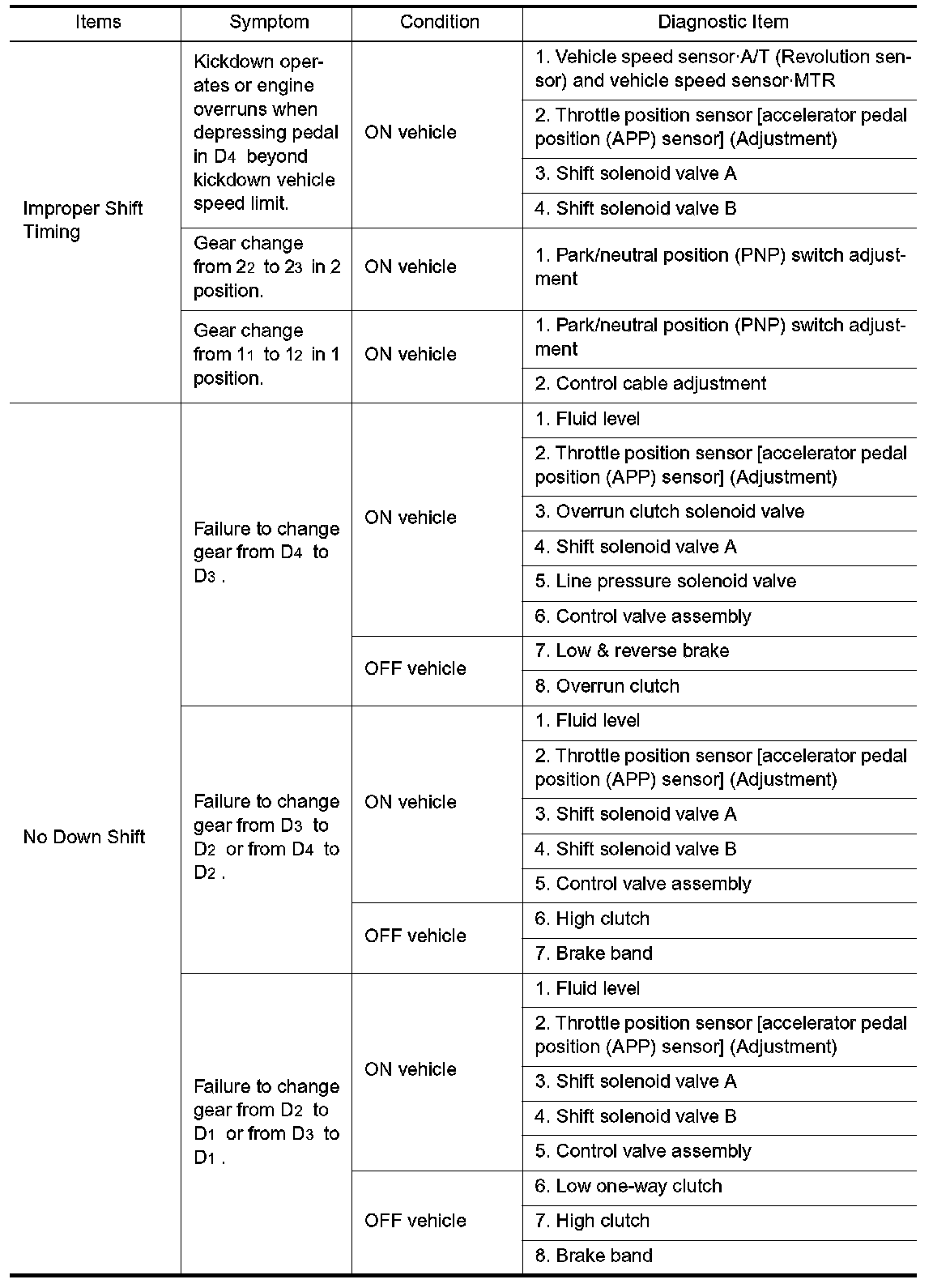

5 of 11

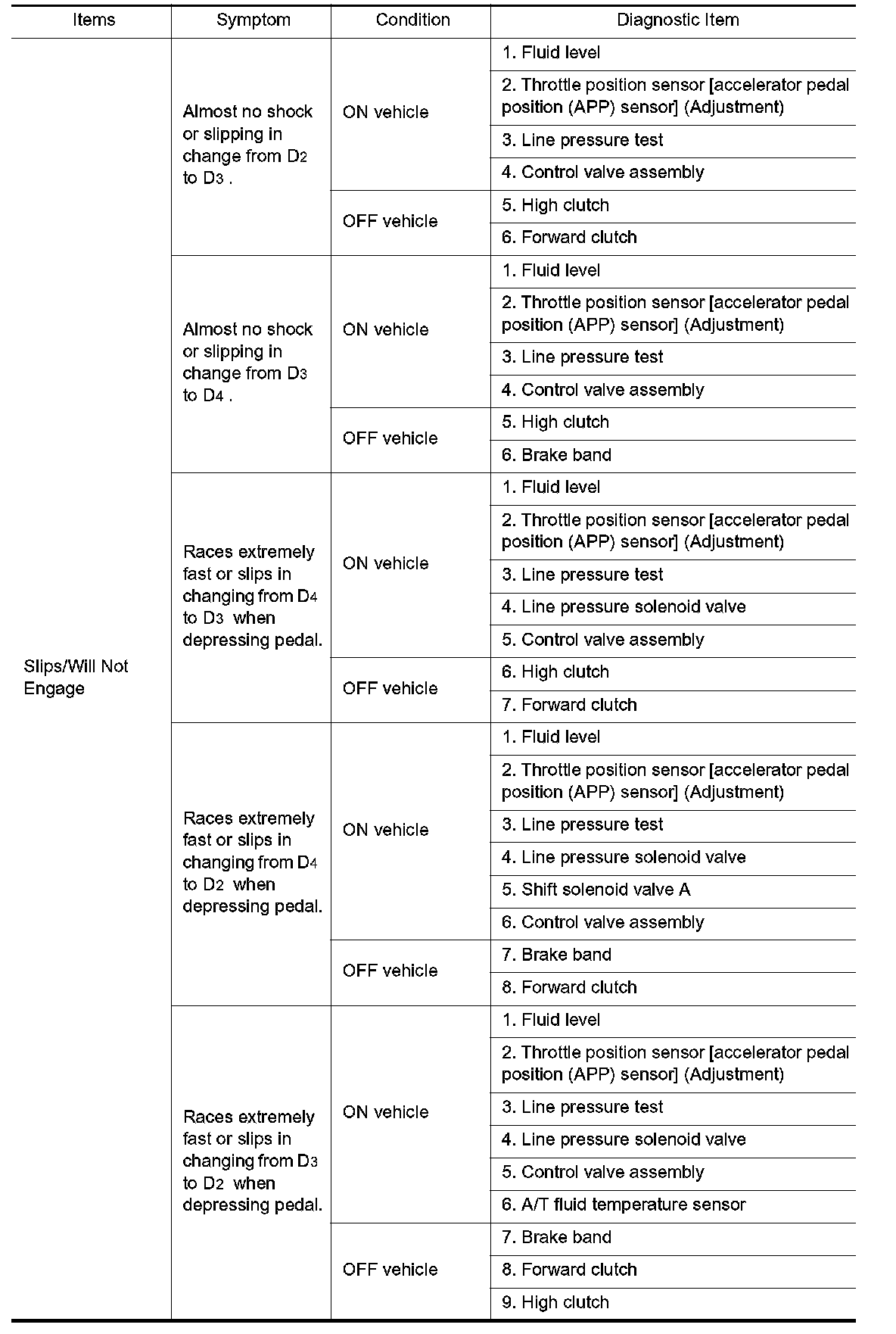

6 of 11

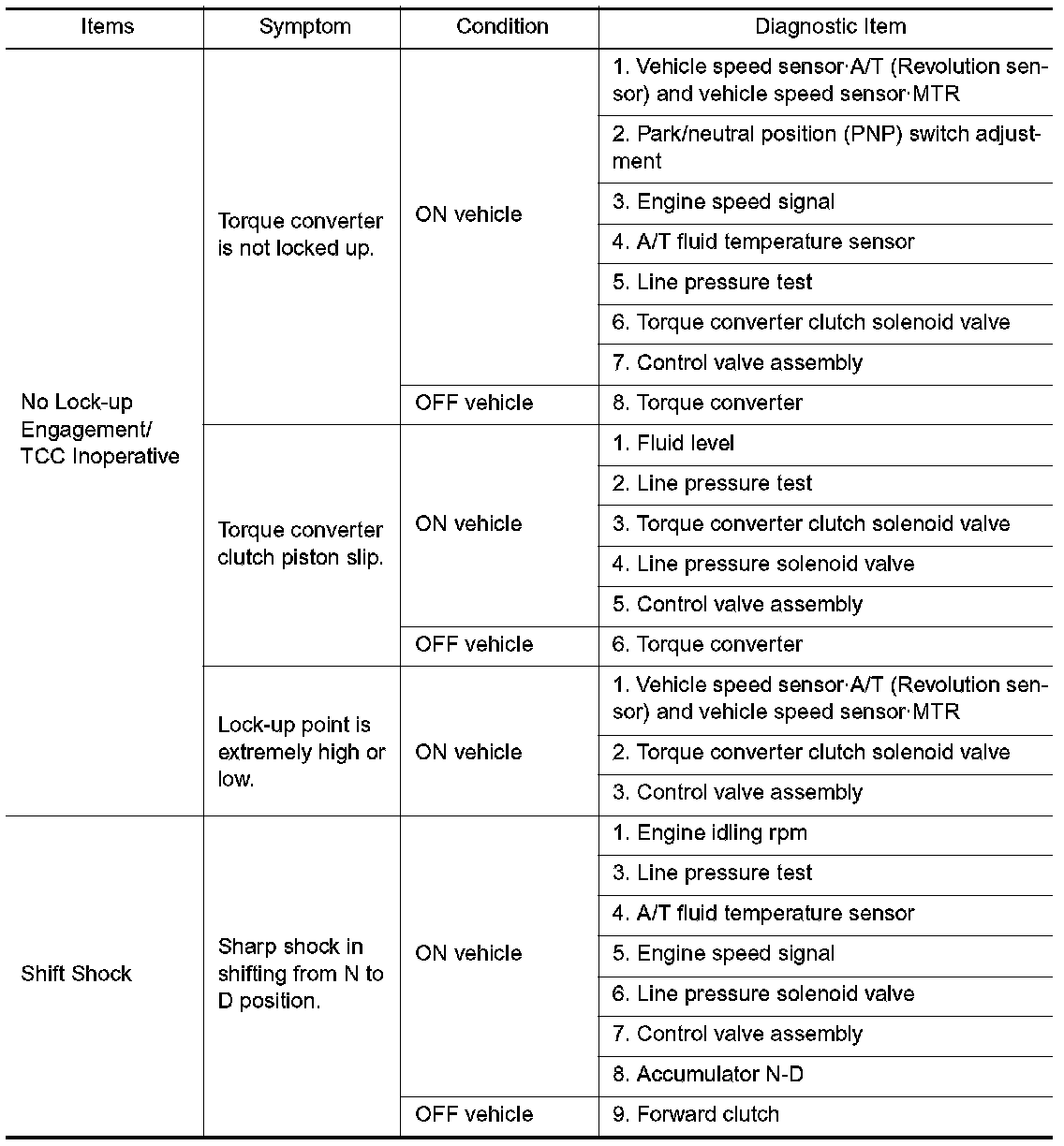

7 of 11

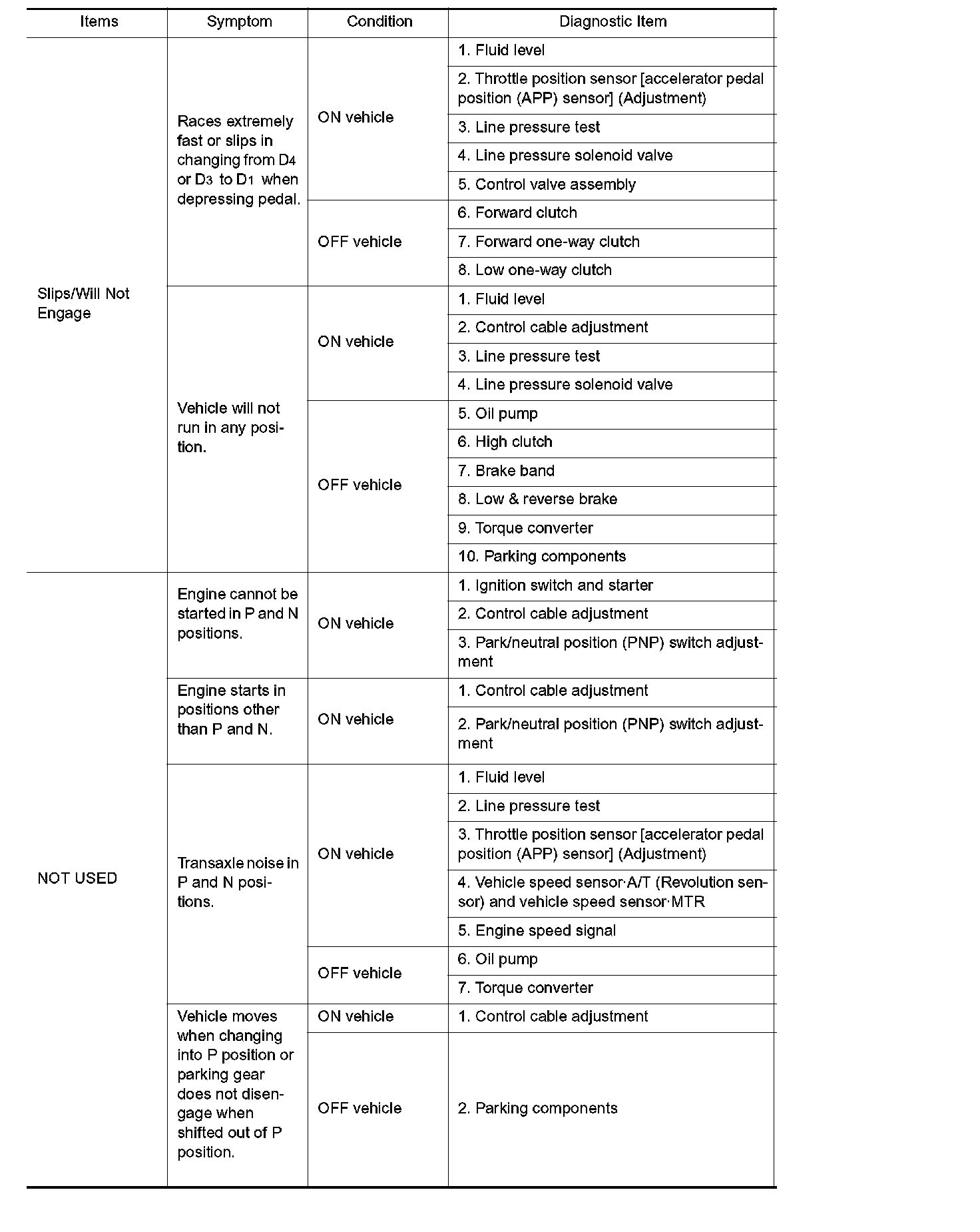

8 of 11





9 of 11





10 of 11





11 of 11

Numbers are arranged in order of inspection.
Perform inspections starting with number one and work up.
