Control Module HVAC: Testing and Inspection

THERMO CONTROL AMP.
1. Run engine and operate A/C system.

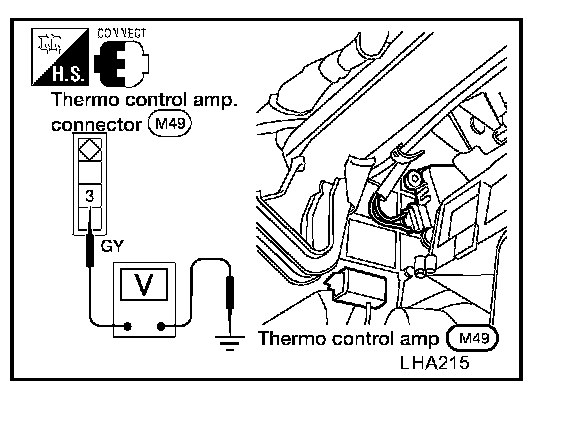

2. Connect voltmeter from harness side.

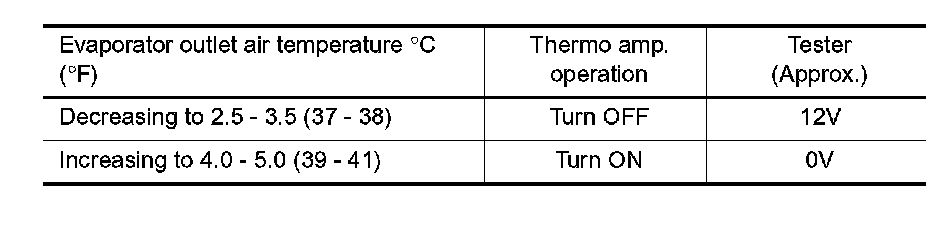

3. Check thermo control amp. operation shown in the table.
