ASCD Steering Switch

Check continuity between terminals by pushing each button.

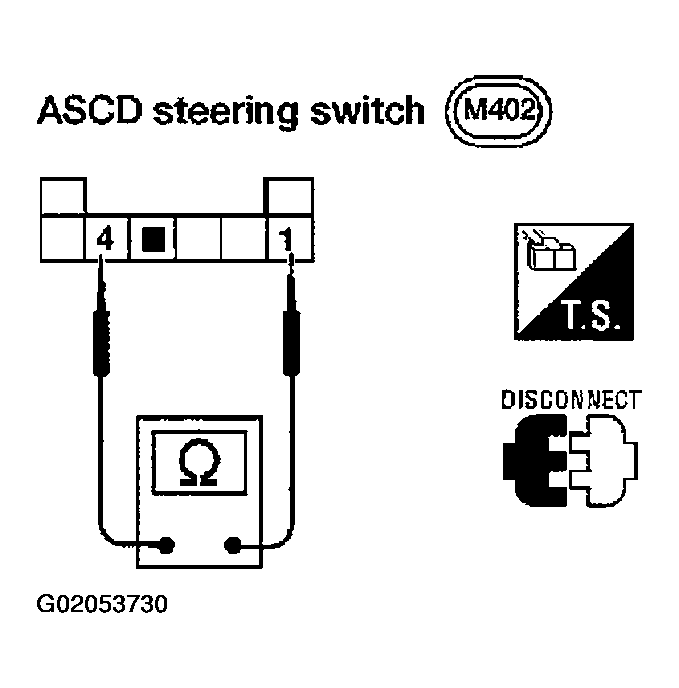

Fig 1: Checking Continuity Of Steering Switch (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

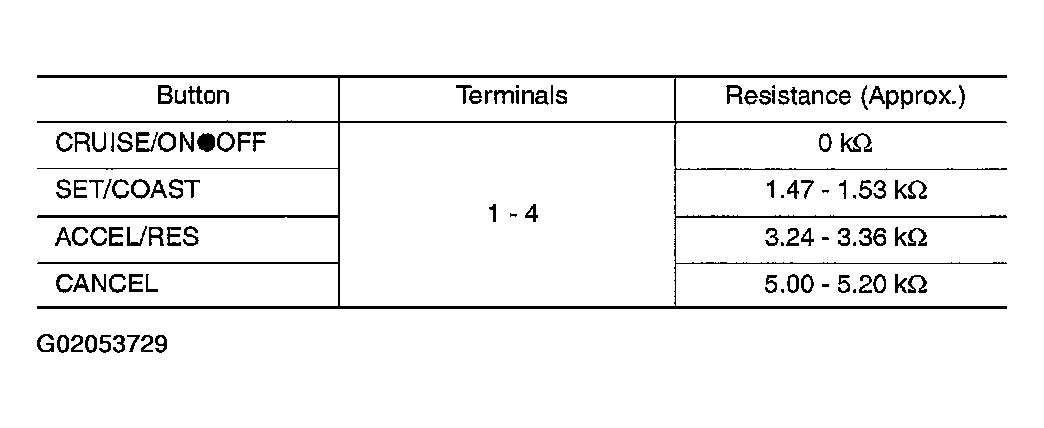

Fig 2: Checking Continuity Of Steering Switch (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
