Operation Procedure

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Perform , "CONSULT-II SETTING PROCEDURE "
Touch "DTC WORK SUPPORT".

Fig 1: Consult-II SELECT DIAG MODE Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch select item menu.

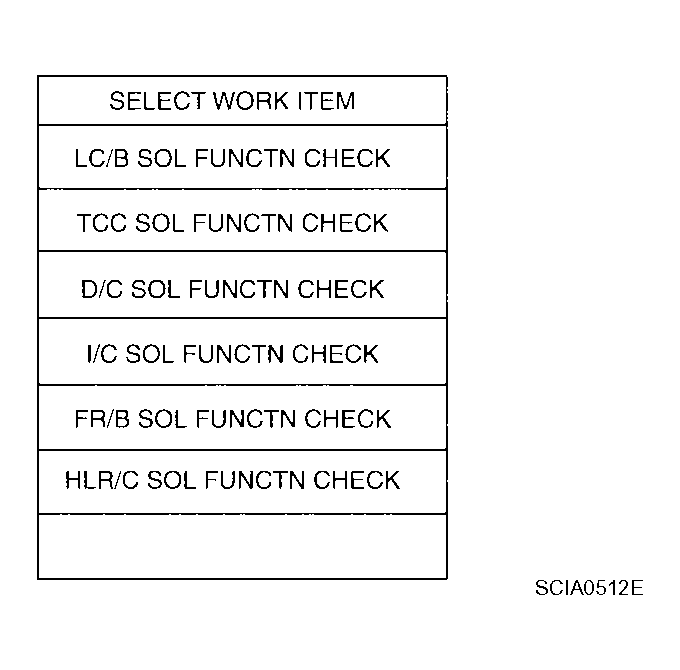

Fig 2: CONSULT-II Display - Select Item Menu
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

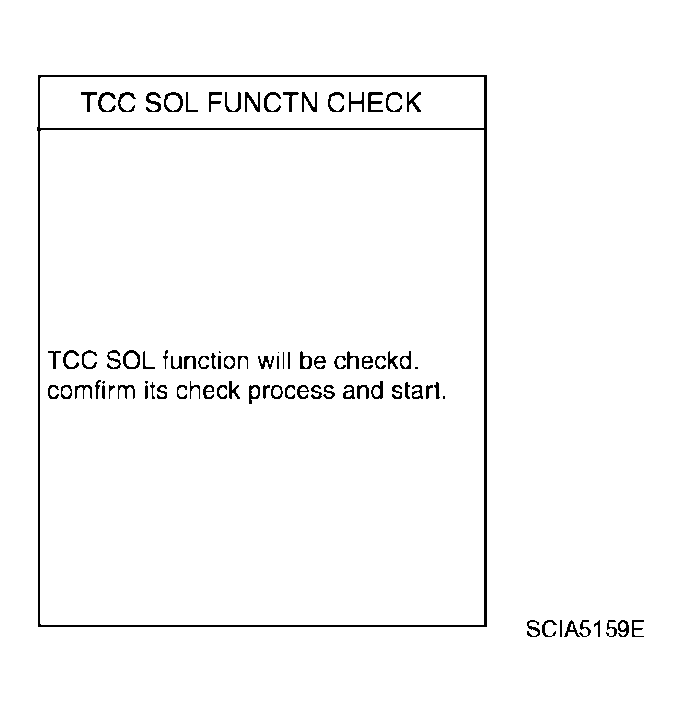

Fig 3: CONSULT-II Display - START
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform driving test according to "DTC CONFIRMATION PROCEDURE " in "TROUBLE DIAGNOSIS FOR DTC".

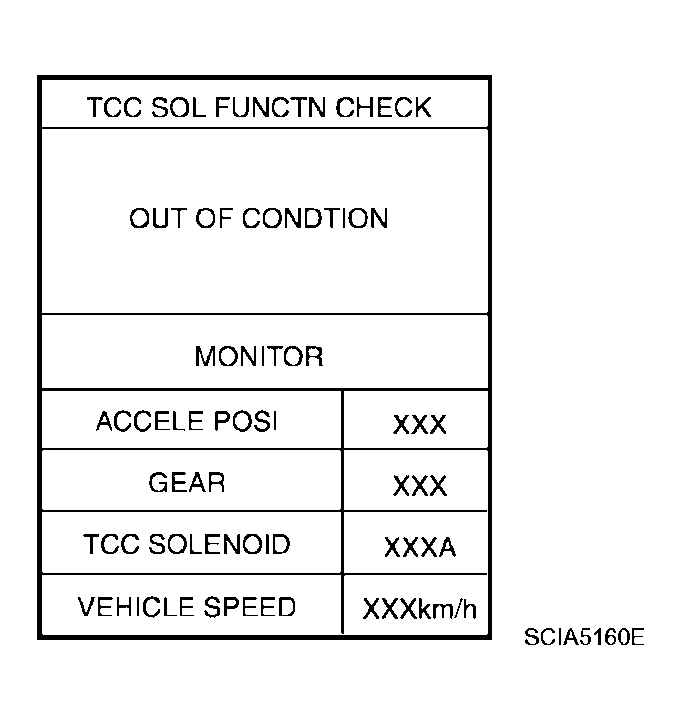

Fig 4: CONSULT-II Display - DTC Confirmation Procedure
Courtesy of NISSAN MOTOR CO., U.S.A.
- When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING"

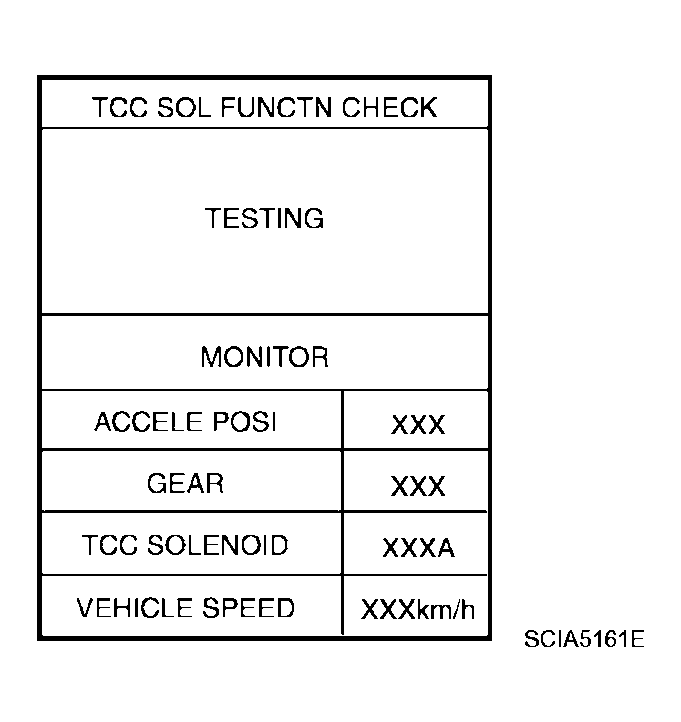

  Fig 5: CONSULT-II Display - TESTING
  Courtesy of NISSAN MOTOR CO., U.S.A.
Stop vehicle.

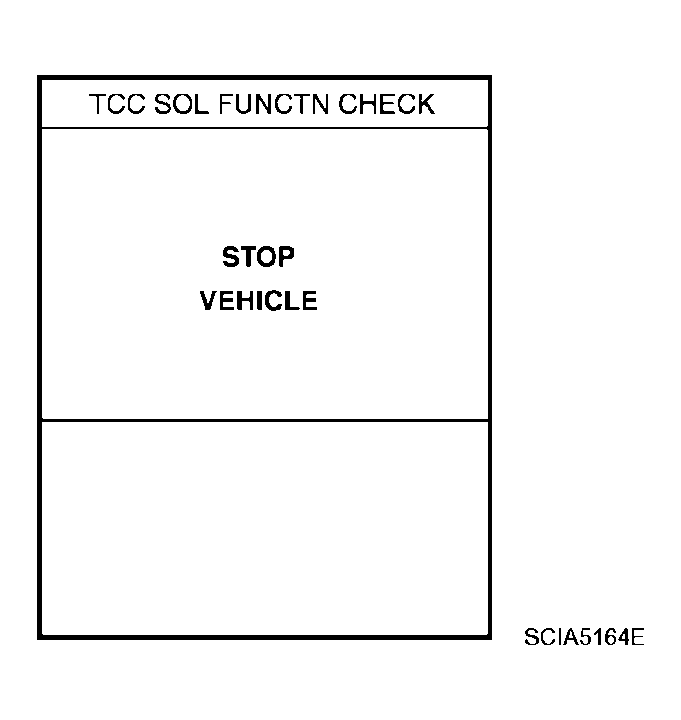

Fig 6: CONSULT-II Display - Stop Vehicle
Courtesy of NISSAN MOTOR CO., U.S.A.
- If "NG" appears on the screen, malfunction may exist. Go to " DIAGNOSTIC PROCEDURE "

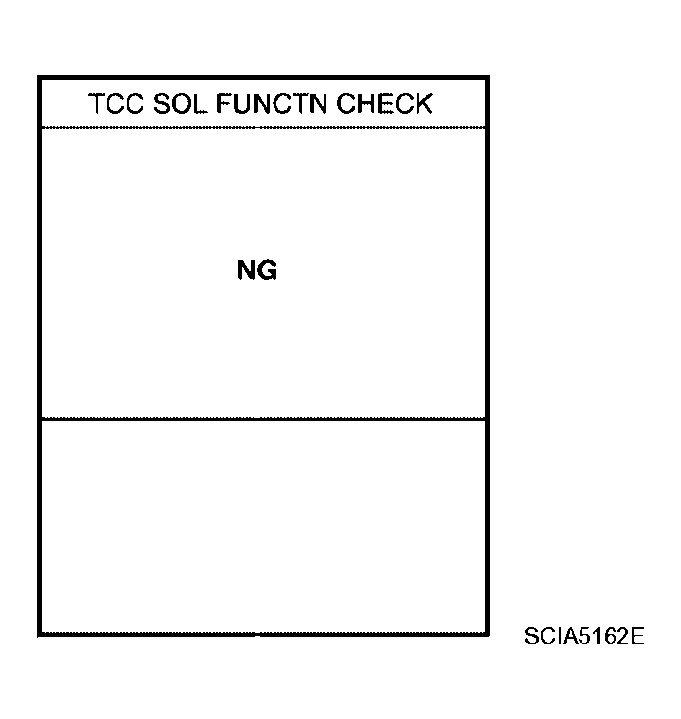

  Fig 7: CONSULT-II Display - NG
  Courtesy of NISSAN MOTOR CO., U.S.A.
Perform test drive to check gear shift feeling in accordance with instructions displayed.
Touch "YES" or "NO".
CONSULT-II procedure is ended.

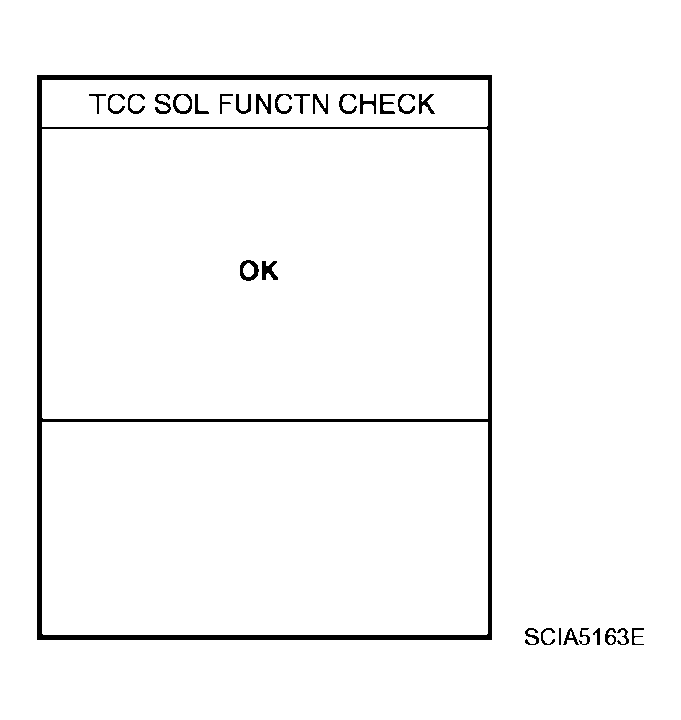

Fig 8: CONSULT-II Display - YES
Courtesy of NISSAN MOTOR CO., U.S.A.

If "NG" appears on the screen, a malfunction may exist.

Go to " DIAGNOSTIC PROCEDURE "

Fig 9: CONSULT-II Display - NG

Courtesy of NISSAN MOTOR CO., U.S.A.
