Center Console

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

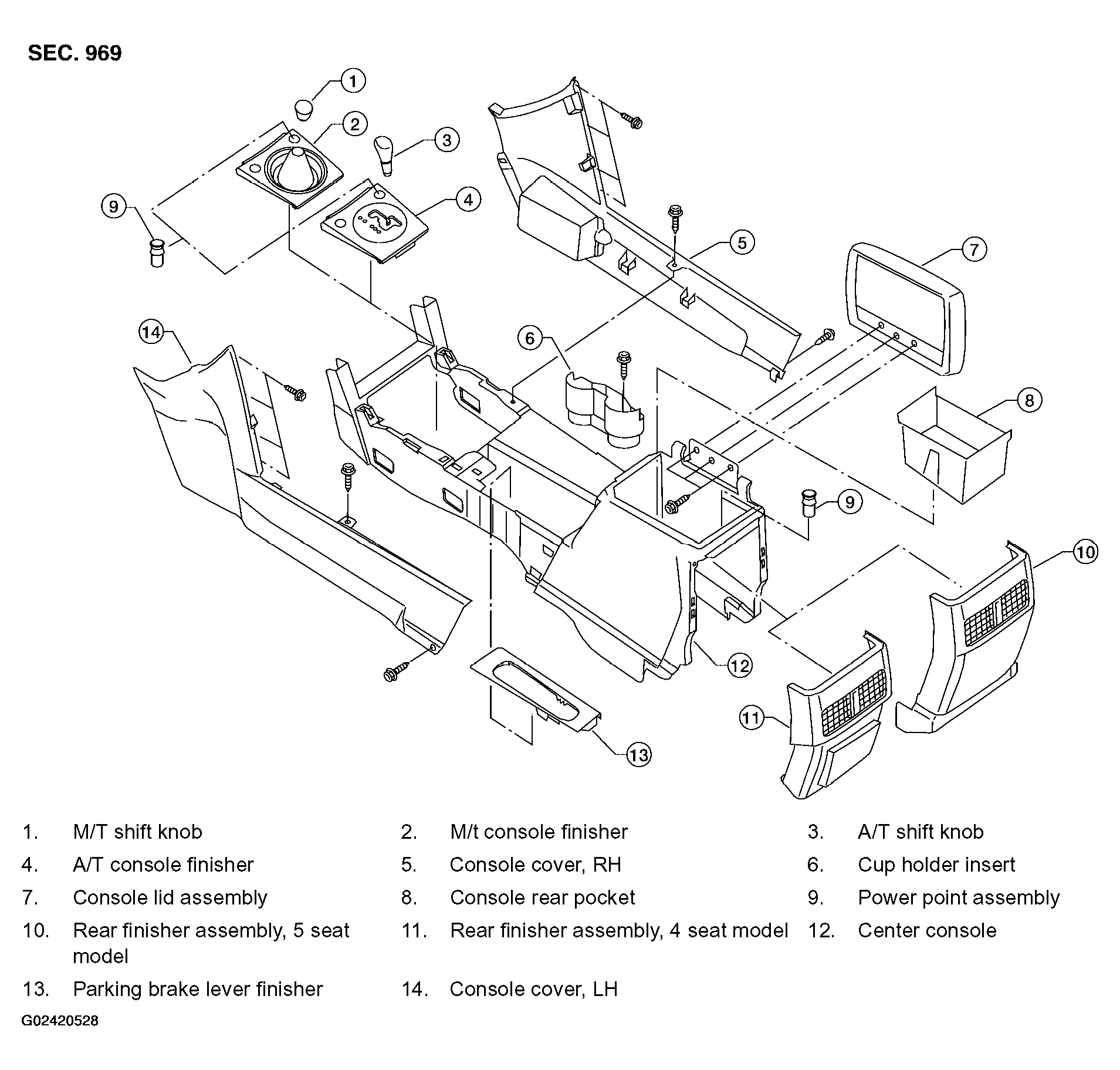

Fig 1: Disassembling Center Console

Courtesy of NISSAN MOTOR CO., U.S.A.

On 4 seat models, rear console assembly must be removed prior to removing center console. Refer to "REAR CONSOLE ".
Remove RH instrument lower cover. Refer to "INSTRUMENT PANEL ASSEMBLY ".
Remove instrument passenger lower panel and glove box assembly. Refer to "INSTRUMENT PANEL ASSEMBLY ".
Remove lower driver instrument panel. Refer to "INSTRUMENT PANEL ASSEMBLY ".
Remove shift knob and M/T or A/T console finisher.
- Disconnect illumination bulb and hazard switch harnesses.
Remove cluster lid C. Refer to "CLUSTER LID C ".
Pull up parking brake lever and remove parking brake finisher from center console.
Remove screws from center console.
- Disconnect electrical harnesses.
Move front seats forward and remove center console assembly.
Remove cup holder insert from cup holder assembly
Disconnect clips, remove screw on each side and remove RH and LH console covers.
Remove console rear pocket.
Remove power point assembly.
Remove screws from hinge plate and remove lid assembly from console box.
Release clips and remove rear finisher assembly.

Assembly is in the reverse order of disassembly.
