Removal and Installation of IPDM E/R: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Never remove relays from an IPDM.
  1. Disconnect the negative battery terminal.
  2. Remove the IPDM E/R upper cover.

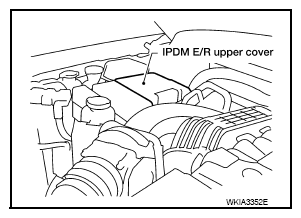

    Fig 1: Identifying IPDM E/R Upper Cover
    G08169144Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release two clips and pull the IPDM E/R up from case.
  4. Disconnect the IPDM E/R connectors and remove the IPDM E/R.

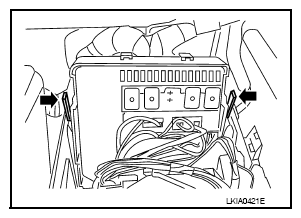

Fig 2: Identifying IPDM E/R Connectors
G08169145Courtesy of NISSAN NORTH AMERICA, INC.
